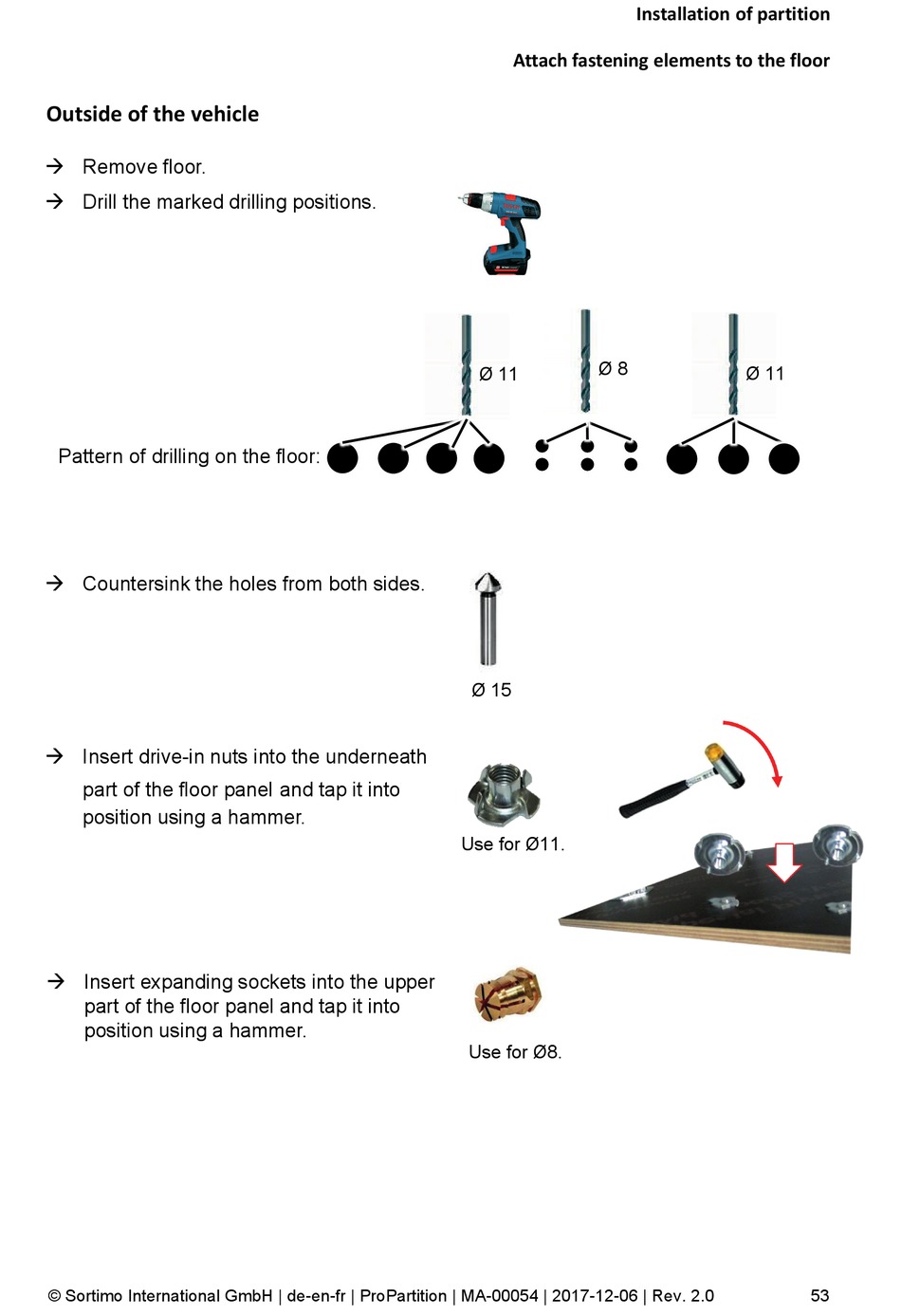

Outside of the vehicle
 Remove floor.
 Drill the marked drilling positions.
Pattern of drilling on the floor:
 Countersink the holes from both sides.
 Insert drive-in nuts into the underneath
part of the floor panel and tap it into
position using a hammer.
 Insert expanding sockets into the upper
part of the floor panel and tap it into
position using a hammer.
© Sortimo International GmbH | de-en-fr | ProPartition | MA-00054 | 2017-12-06 | Rev. 2.0
Attach fastening elements to the floor
Ø 8
Ø 11
Ø 15
Use for Ø11.
Use for Ø8.
Installation of partition
Ø 11
