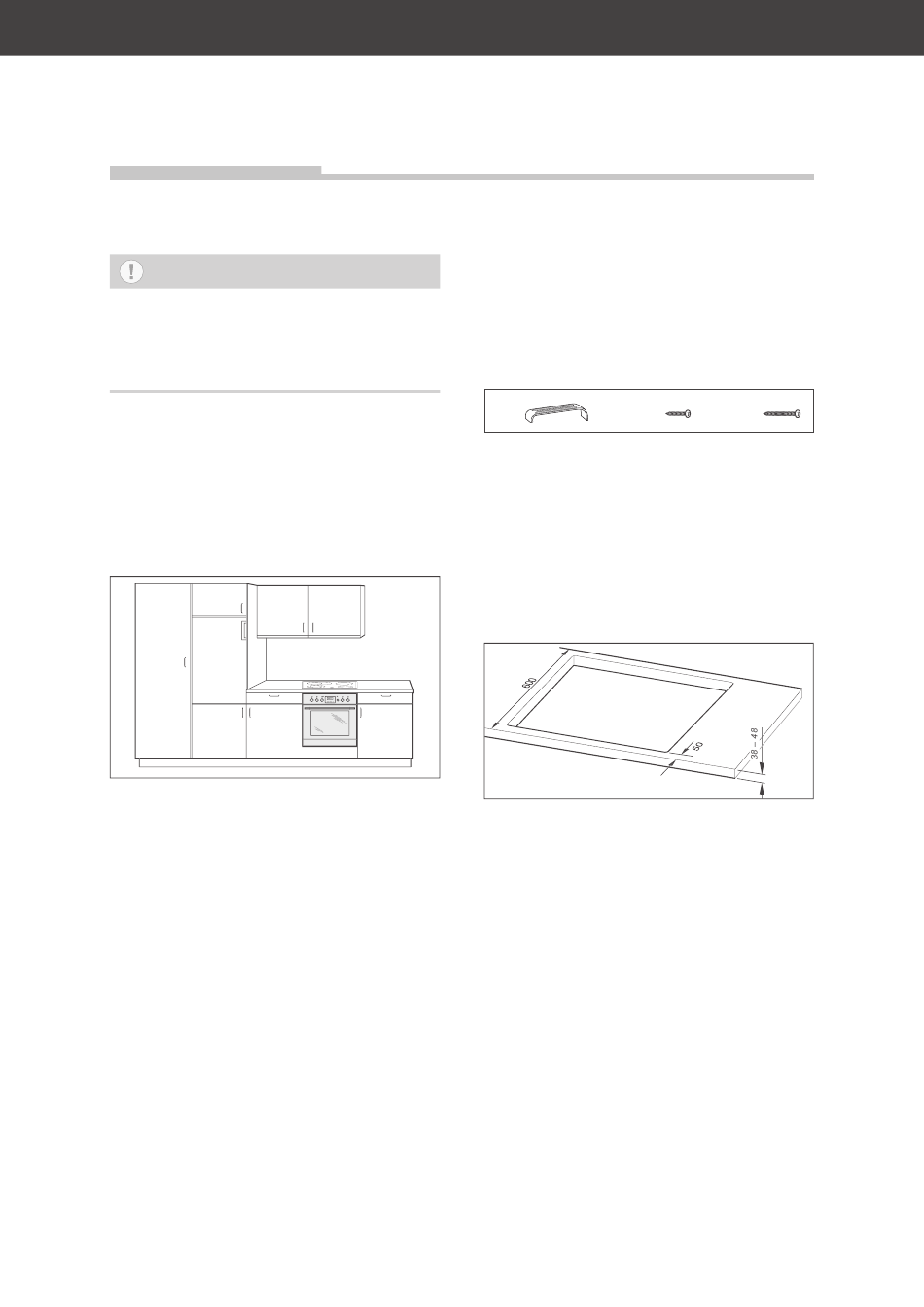

Installing the hob

Transport

NOTICE
Risk of damage!
If a trolley is used to move the cook-
■
er set, the appliance must be lifted as
shown on the packaging.
Your cooker set comes in sturdy packaging
and is so heavy that it should not be carried
by one person alone.

Installation

The cooker set has been designed to be in-
stalled in a kitchen unit. If you have the requi-
site skills, you can fit it yourself.
However, the electrical connection must be
carried out by an authorised professional
Installation requirements
• The hob may only be installed with one
side next to higher kitchen furniture, ap-
pliances or walls.
• The cooker should not be installed di-
rectly beside refrigerators or freezers.
Heat loss unnecessarily increases their
energy consumption.
• Keep the oven at least one centimetre
away from the wall. The cooker pow-
er connection must therefore be a
flush-mounted box or must be located
outside the installation space.
Installing the hob
• The hob and oven are connected by the
permanently installed wiring harness;
they must therefore be installed in direct
alignment to each other.

Required materials

(6) (7)
(6) 4× Clamp for attaching the glass
ceramic hob to a worktop
(7) 4× Screw for attaching bracket
(8) 2× Screw for attaching oven

Preparing wood

The following conditions must be fulfilled:
– The worktop must be at least 38 to 48 mm
thick and at least 600 mm deep. It must
also be horizontal and level and must be
sealed on the wall side against overflowing
liquids.
– The hob must be surrounded by at least
50 mm of worktop on all sides.
– Veneers, plastic coverings and adhesives
which are used must be resistant to heat
(100°C).
1. Use a jigsaw to cut a hole in the worktop
for the hob. It must have the following di-
mensions.
Page EN-29
