Assembly of the cutter bar takes place in the reversed order. Mind
the directions listed hereafter:
- Clean the centring rings (10) and the contact areas of the mower
elements and intermediate spacers.
- Make sure that there is no contamination between those elements
and spacers which were not dismounted (rub the sides with
Castrol Tarp).
- Grease the drive shaft (Molykote BR2 Plus).
Make sure that the mower discs are turned 90 in respect of one
!
another. If a unit can not be slid onto the drive shaft in one go,
its disc needs to be turned a semi-turn one or several times until
the unit can be placed.

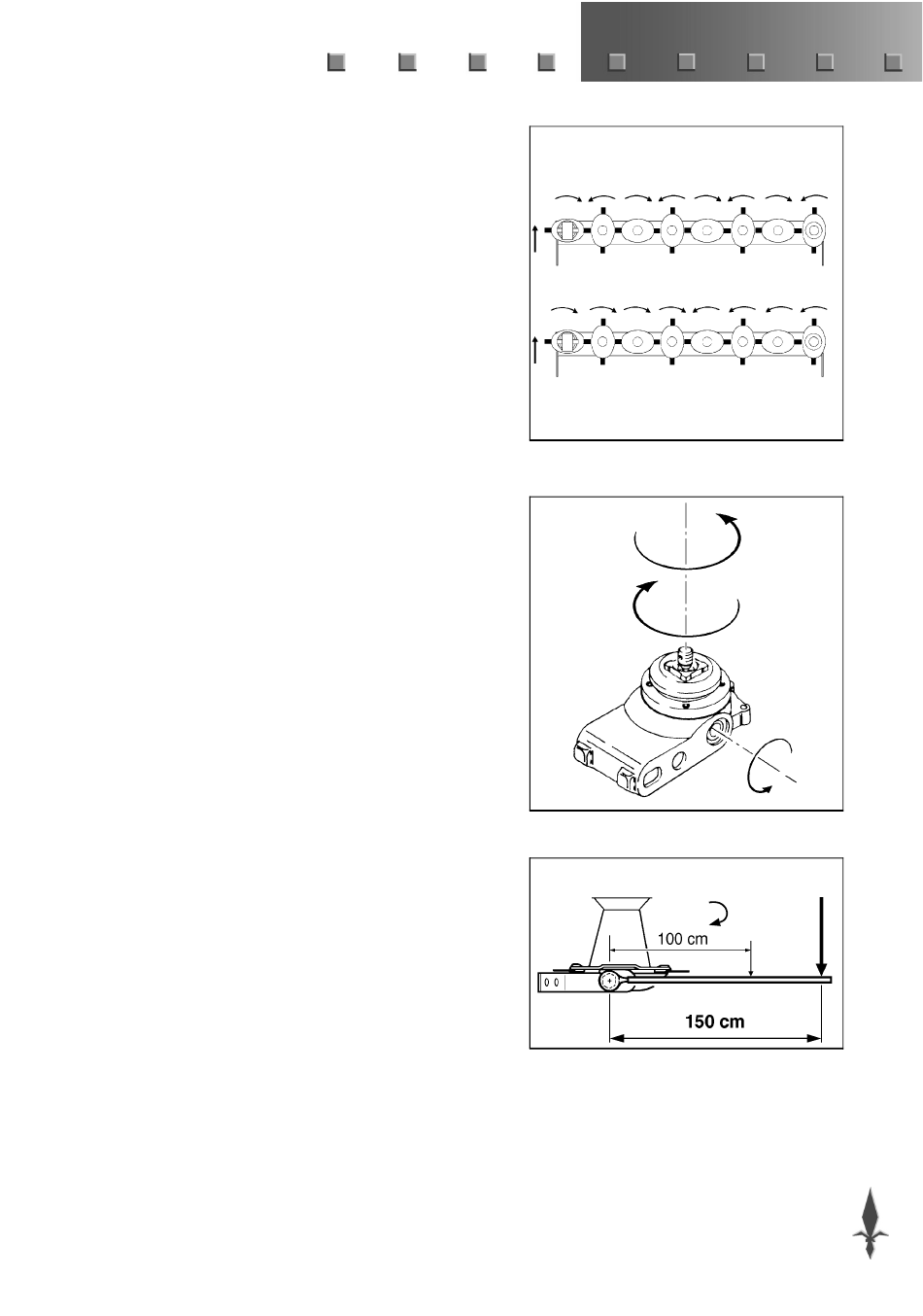

- Fit the elements in the standard configuration of directions of
rotation (fig. A-2).
• A RHrotation SPLENDIMO FC element can be identified as
follows:
When the hub is turned to the right (R: fig. A-3), the drive gear
on the RH side will turn anti-clockwise.
• A LHrotation element can be identified as follows:
When the hub is turned to the left (L: fig. A-3), the drive gear
on the RH side will turn anti-clockwise.
- After disassembly of a mower disc, check the presence of the O-
ring (11, fig. A-1) in the pressure piece.
- Tighten the castellated nut with a torque of 150-250 Nm (15-25
kgm) and secure it with a split pin. Make sure that the split pin
does not protrude above the pressure piece.
Attention: it is not allowed to turn the nut back; keep turning until
the split pin can be fitted.
- The securing disc (13) and supporting ring have to be fitted in the
outer mowing element. If this element is replaced, these parts
need to be moved over to the new unit.
- First, tighten the 5 bolts (14) by force of hand.
- Grease (Molykote P74) the ring (8) as well as to the threaded part
of the connecting rod (3) and nut (7). Fit the nut on the rod.
- Tighten the nut (7).
Torque: 950 Nm (95 kgm).
This torque is realised by extending your wrench with a 150 cm
long pipe (fig. A-4) and by then applying a force of 635 N
(63.5 kg).
When fitting the securing plate the nut should be tightened and is
not allowed to be unscrewed.
- Tighten the five bolts (14) with a torque of 120 Nm (12 kgm) and
secure the bolt with a second nut.
Supplement A
SPLENDIMO 320 FCN
SPLENDIMO 320 FCS
L
R
950 Nm
(95 kgm)
A-2
A-3
635 N
63.5 kg
A-4
