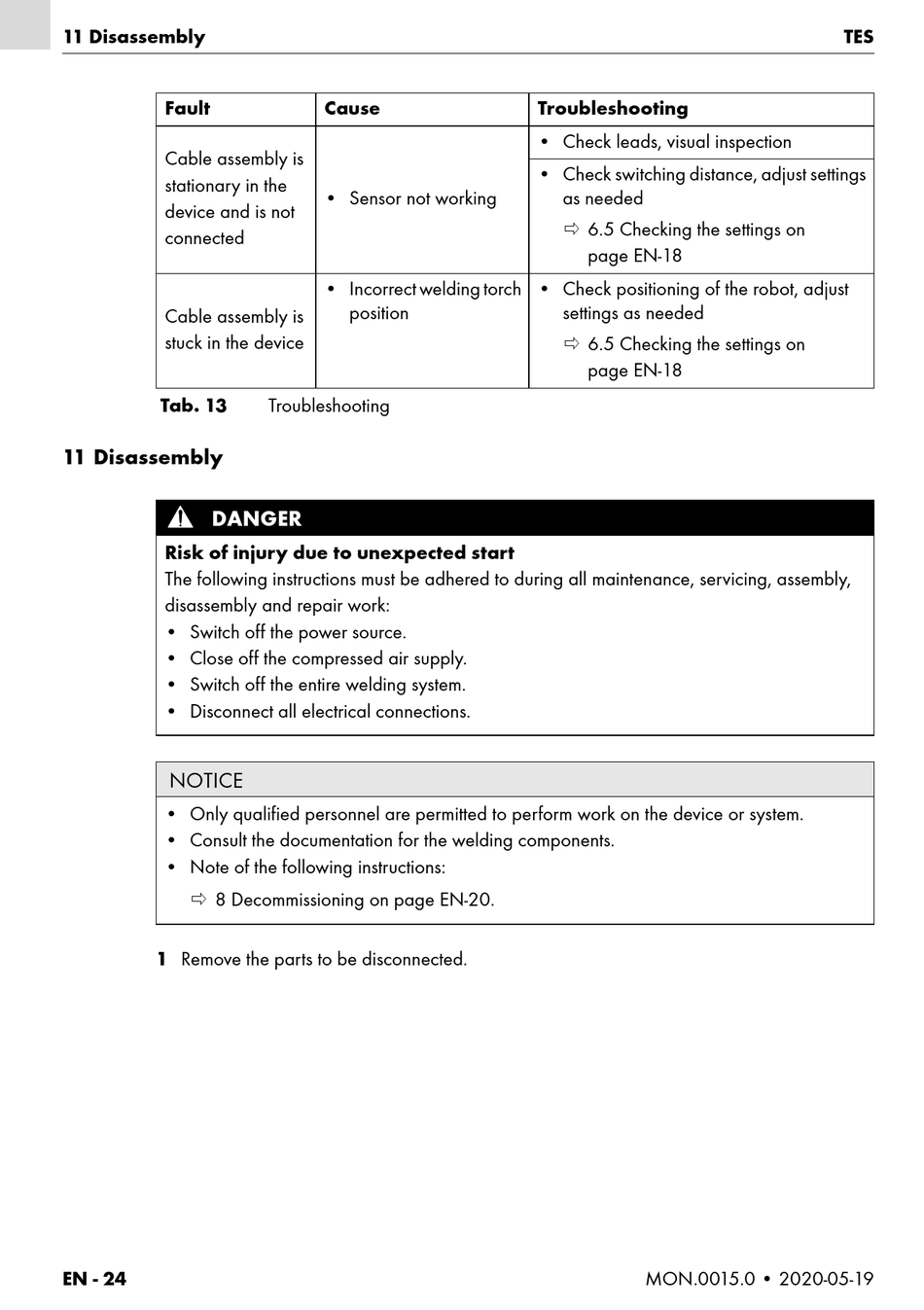

Abicor Binzel TES Montageanleitung Seite 46

11 Disassembly
Fault
Cable assembly is
stationary in the
device and is not
connected
Cable assembly is
stuck in the device
Tab. 13
11 Disassembly
DANGER
Risk of injury due to unexpected start
The following instructions must be adhered to during all maintenance, servicing, assembly,
disassembly and repair work:
• Switch off the power source.
• Close off the compressed air supply.
• Switch off the entire welding system.
• Disconnect all electrical connections.
NOTICE
• Only qualified personnel are permitted to perform work on the device or system.
• Consult the documentation for the welding components.
• Note of the following instructions:
 8 Decommissioning on page EN-20.
1 Remove the parts to be disconnected.
EN - 24
Cause
• Sensor not working
• Incorrect welding torch
position
Troubleshooting
Troubleshooting
• Check leads, visual inspection
• Check switching distance, adjust settings
as needed
 6.5 Checking the settings on
page EN-18
• Check positioning of the robot, adjust
settings as needed
 6.5 Checking the settings on
page EN-18
MON.0015.0 • 2020-05-19
TES
