TES

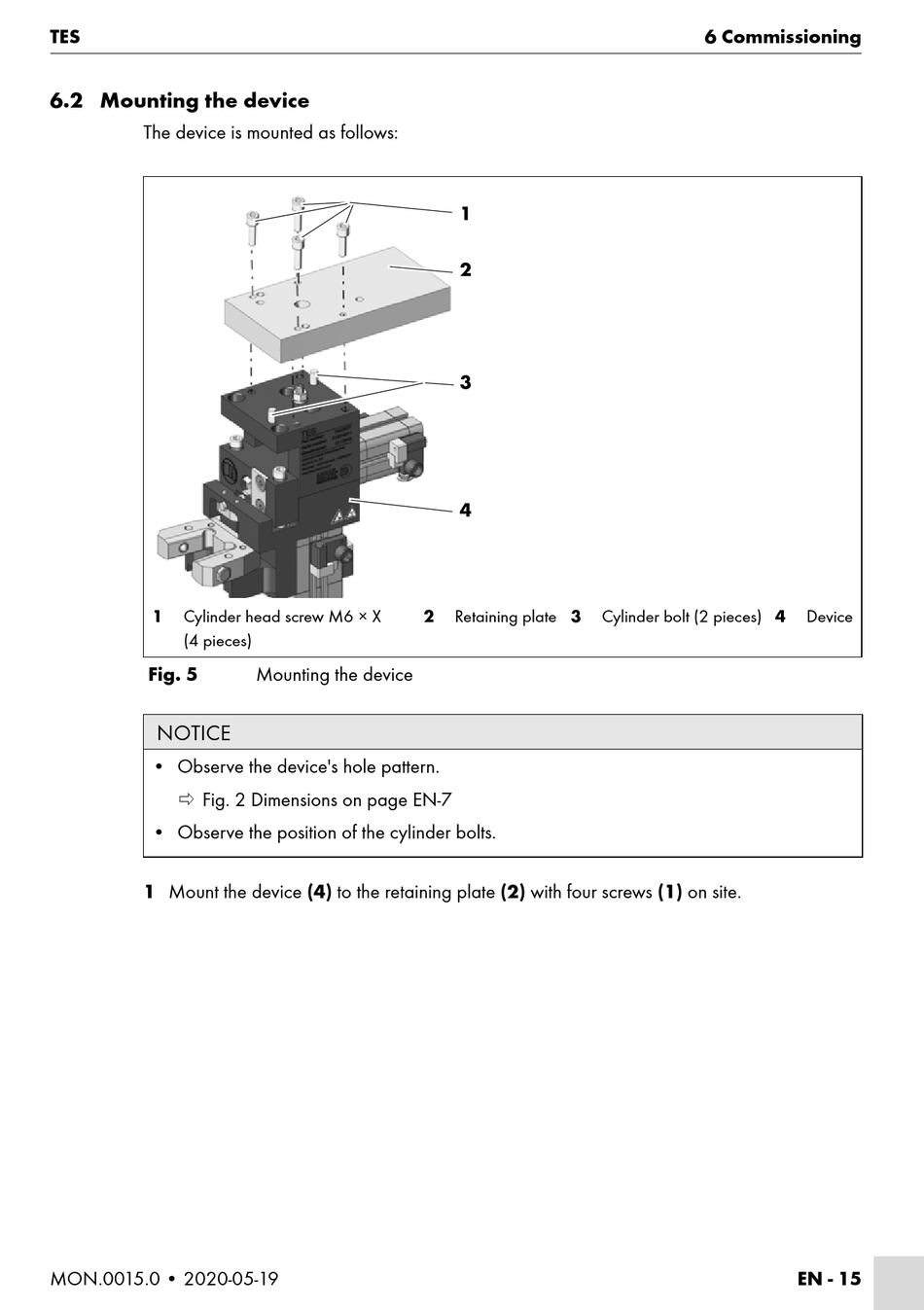

6.2 Mounting the device

The device is mounted as follows:
1 Cylinder head screw M6 × X
(4 pieces)
Fig. 5
NOTICE
• Observe the device's hole pattern.
 Fig. 2 Dimensions on page EN-7
• Observe the position of the cylinder bolts.
1 Mount the device (4) to the retaining plate (2) with four screws (1) on site.
MON.0015.0 • 2020-05-19
2
Mounting the device
1
2
3
4
Retaining plate 3 Cylinder bolt (2 pieces) 4
6 Commissioning
Device
EN - 15
