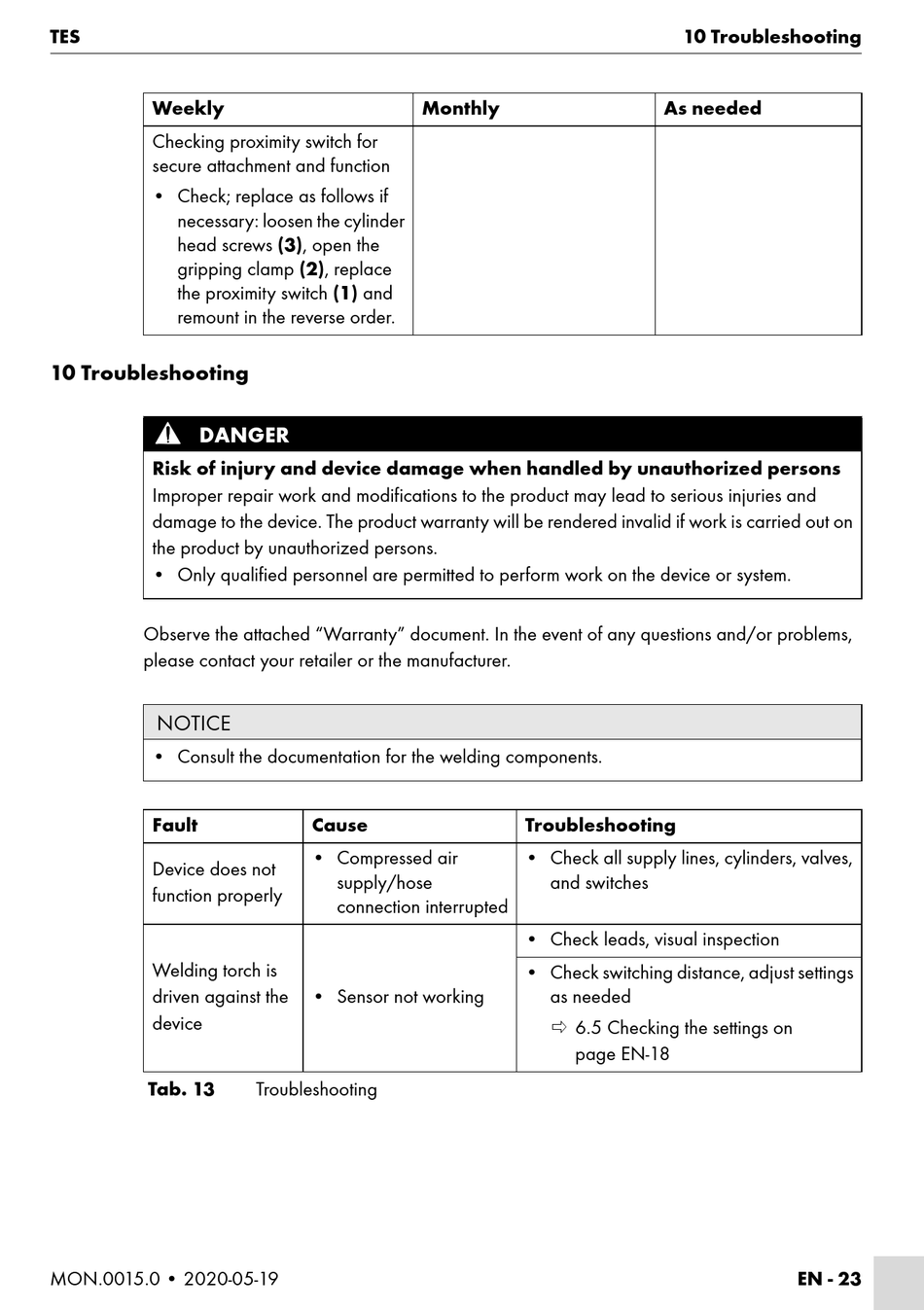

Troubleshooting - Abicor Binzel Tes Montageanleitung

TES
Weekly
Checking proximity switch for
secure attachment and function
• Check; replace as follows if
necessary: loosen the cylinder
head screws (3), open the
gripping clamp (2), replace
the proximity switch (1) and
remount in the reverse order.

10 Troubleshooting

DANGER
Risk of injury and device damage when handled by unauthorized persons
Improper repair work and modifications to the product may lead to serious injuries and
damage to the device. The product warranty will be rendered invalid if work is carried out on
the product by unauthorized persons.
• Only qualified personnel are permitted to perform work on the device or system.
Observe the attached "Warranty" document. In the event of any questions and/or problems,
please contact your retailer or the manufacturer.
NOTICE
• Consult the documentation for the welding components.
Fault
Device does not
function properly
Welding torch is
driven against the
device
Tab. 13
MON.0015.0 • 2020-05-19
Monthly
Cause
• Compressed air
supply/hose
connection interrupted
• Sensor not working
Troubleshooting
10 Troubleshooting
As needed
Troubleshooting
• Check all supply lines, cylinders, valves,
and switches
• Check leads, visual inspection
• Check switching distance, adjust settings
as needed
 6.5 Checking the settings on
page EN-18
