6 Commissioning

6.5 Checking the settings

4
3

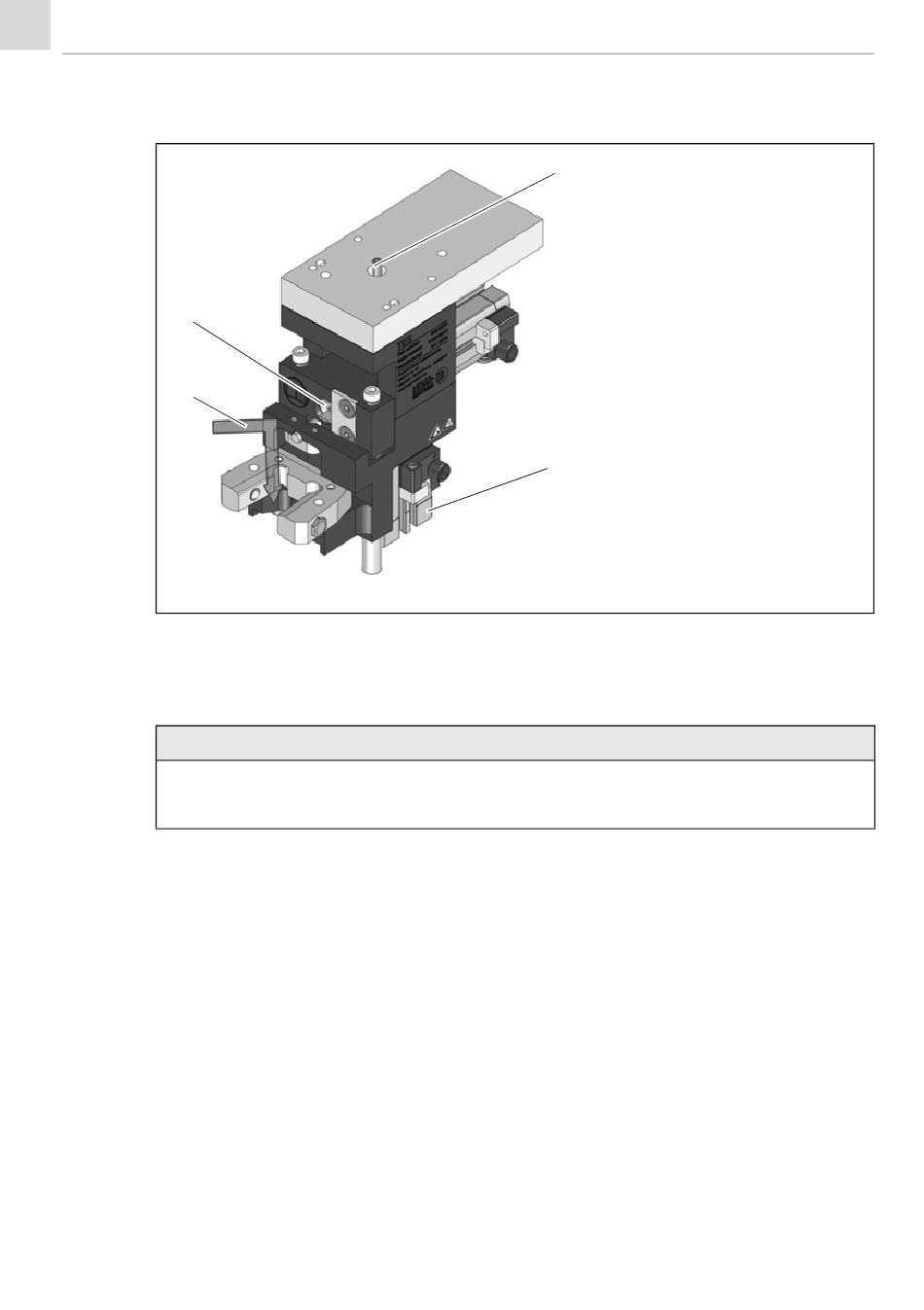

1 Adjusting screw
Fig. 9
6.5.1 Latching fork/lifting unit
NOTICE
• The correct height of the lifting unit (2) is preset. The height can be changed by turning
the adjusting screw (1), as needed.
1 Move the equipped robot (with cable assembly and welding torch (3)) into the device.
2 Extend the latching fork (4) and check that the fork on the coupling unit is at the correct
depth. Adjust the height of the lifting unit by turning the adjusting screw (1), as needed.
EN - 18
2 Lifting unit
Checking the settings
1
2
3 Welding torch
MON.0015.0 • 2020-05-19
TES
4 Latching fork
