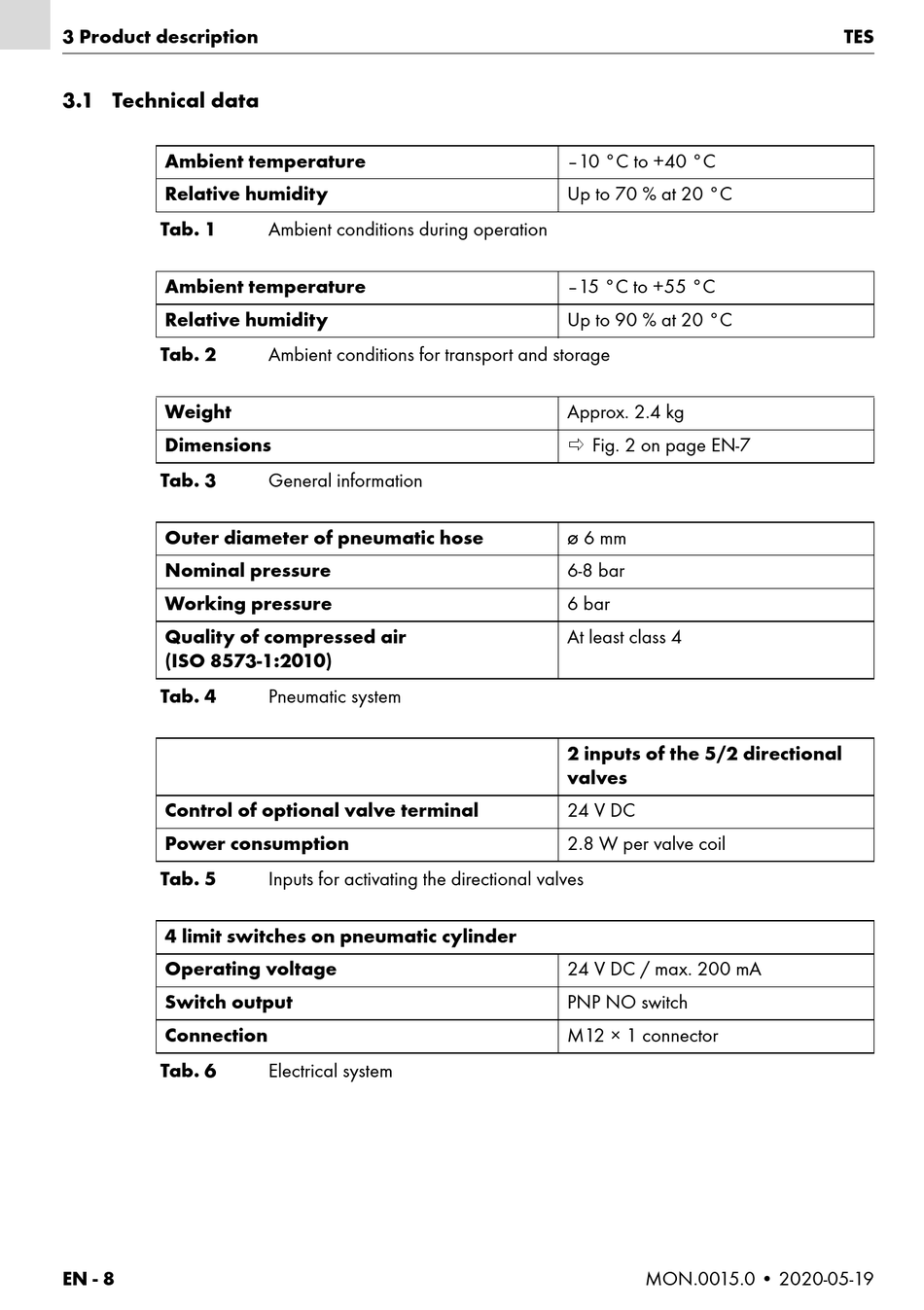

3 Product description

3.1 Technical data

Ambient temperature
Relative humidity
Tab. 1
Ambient temperature
Relative humidity
Tab. 2
Weight
Dimensions
Tab. 3
Outer diameter of pneumatic hose
Nominal pressure
Working pressure
Quality of compressed air
(ISO 8573-1:2010)
Tab. 4
Control of optional valve terminal
Power consumption
Tab. 5
4 limit switches on pneumatic cylinder
Operating voltage
Switch output
Connection
Tab. 6
EN - 8
Ambient conditions during operation
Ambient conditions for transport and storage
General information
Pneumatic system
Inputs for activating the directional valves
Electrical system
–10 °C to +40 °C
Up to 70 % at 20 °C
–15 °C to +55 °C
Up to 90 % at 20 °C
Approx. 2.4 kg
 Fig. 2 on page EN-7
ø
6 mm
6-8 bar
6 bar
At least class 4
2 inputs of the 5/2 directional
valves
24 V DC
2.8 W per valve coil
24 V DC / max. 200 mA
PNP NO switch
M12 × 1 connector
