Carson Reflex Wheel Ultimate Touch Betriebsanleitung Seite 84

• Fallsafe: In case of a loss of signal, the receiver
D
can be configured to set one or several servos to
a predefined position.

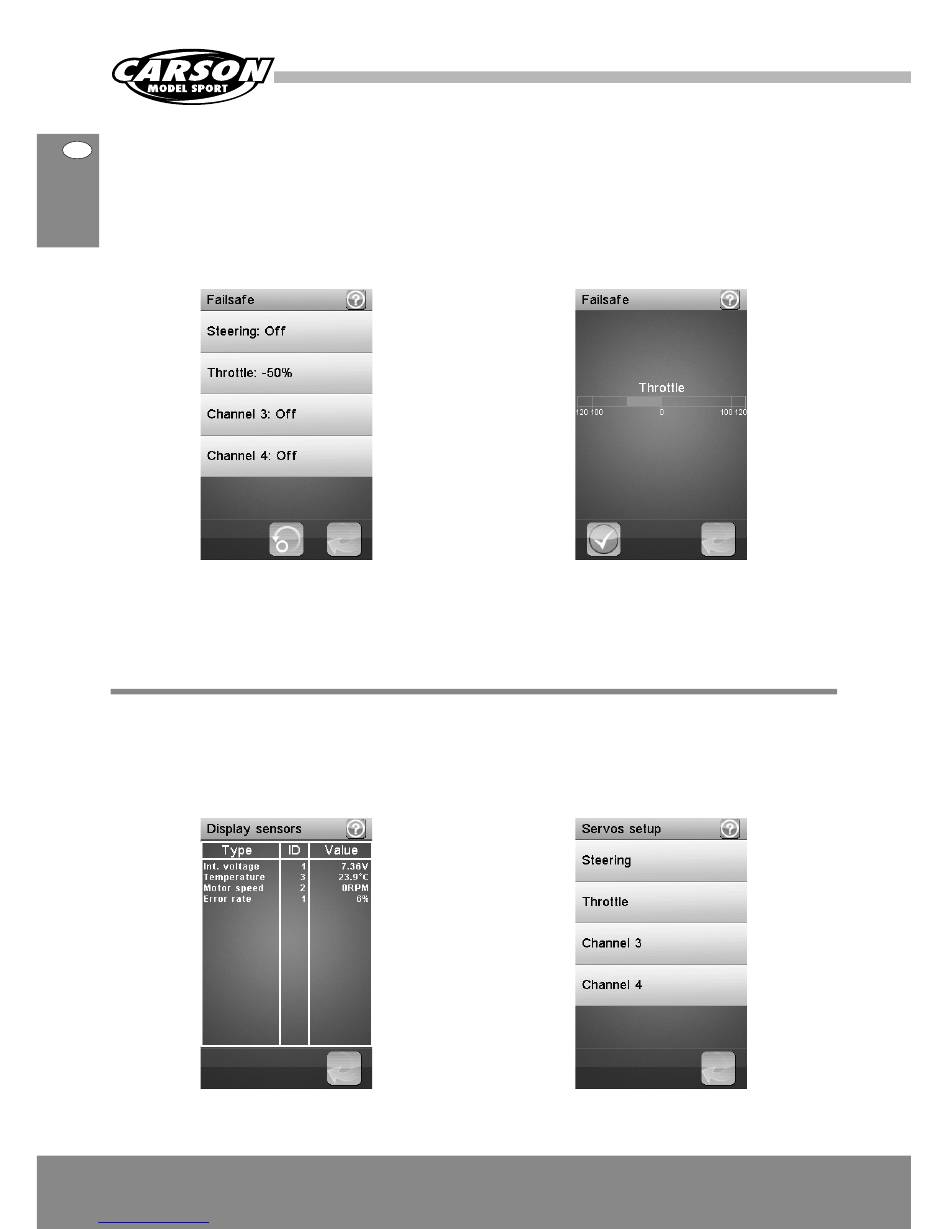

The first menu displays the current setting of the 4
channels. „Off" means that in case of a loss of signal,
the corresponding servo will keep its last received
position.
ln this example, only the throttle is set to half brake
in case of a loss of signal. The other 3 servos will keep
their previous position.
Display sensors: display the type, ID and value
of all connected sensors. Receiver can connect 15
sensors at most.
84 CARSON Reflex Wheel Ultimate Touch 500500516
Downloaded from www.Manualslib.com manuals search engine
Touch a channel to set its failsafe behavior. If acti-
vated, set the channel to the desired position using
the corresponding steering wheel, throttle trigger,
trim or push button then while maintaining that
position, touch the back button. The position of the
servo is then memorized.
In this example, the failsafe on the channel 2 (throttle)
is activated and set to half brake the vehicle.
Servos setup: If servos are connected on the
external serial interface, this function attributes
a channel to each servo. Choose the channel to
attribute.
