The activation of the channel 3 exponential function
D
can be assigned to a push button.
The activation of the channel 3 ABS function can be
assigned to a push button.
The activation of the channel 4 exponential function
can be assigned to a push button.
The activation of the channel 4 ABS function can be
assigned to a push button.
All the parameters of the channels 3 and 4 exponential
and ABS function can be assigned to a trim switch
each.
Mixes
4 independent mixes can be applied between any
master and slave channel. Each mix, when activated,
will let the slave channel be influenced by its master
channel. A fraction of the master channel, eventually
negative, is added to the slave channel. Furthermore,
the slave channel can be shifted up or down by a
given value.

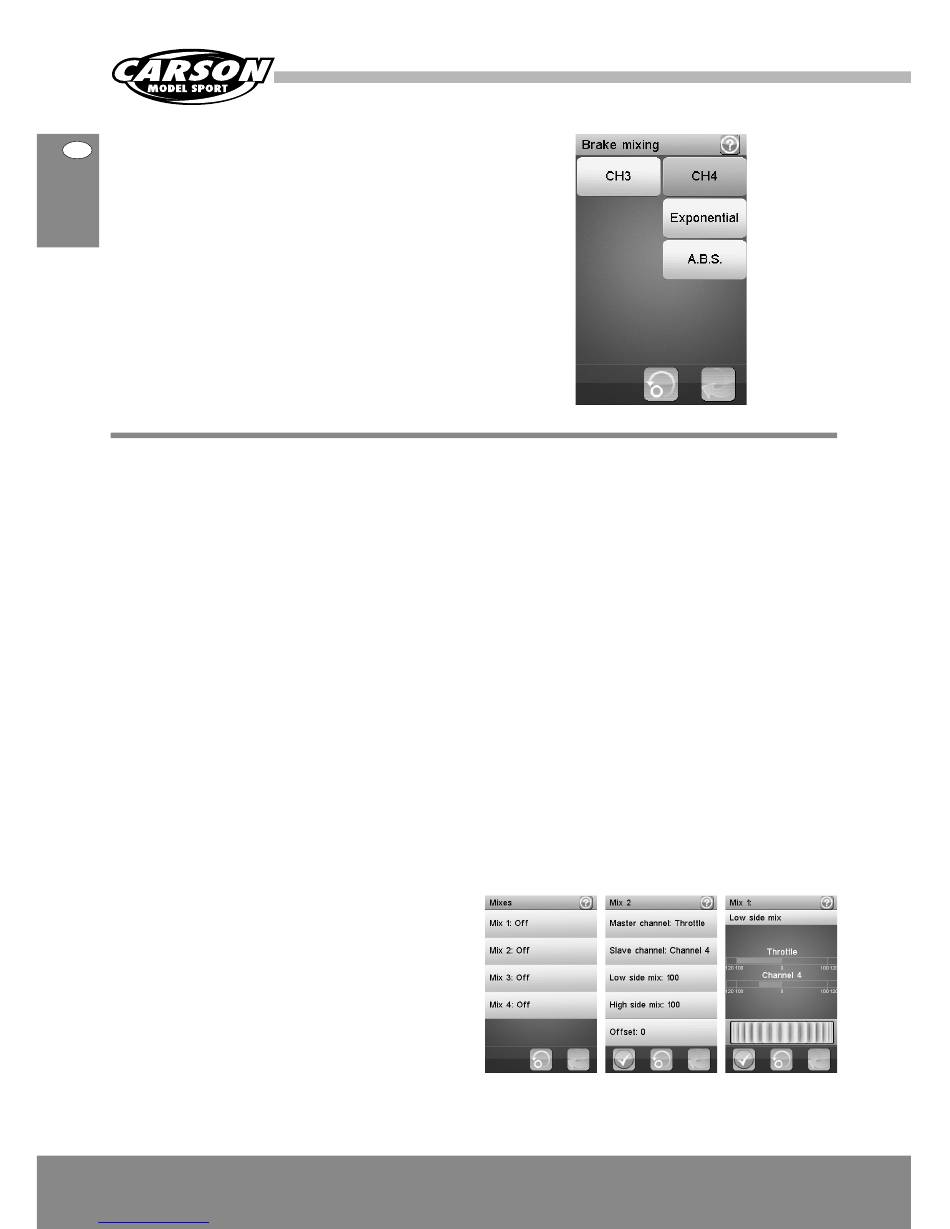

The first menu selects the mix to modify. The second
menu selects the parameter of the previously selected
mix to modify.
• Master channel: select the channel that will
influence the slave channel.
• Slave channel: select the channel that will be
influenced by the master channel.
• Low side mix: set how much influence the master
channel will have when on its low side (Ieft side
for the steering channel and brake side for the
throttle channel). A negative value will influence
the slave channel on the opposite direction. 50%
adds half of the master to the slave. 0% doesn't
influence the slave.
• High side mix: same as the low side mix but on
the high side of the master channel (right side for
the steering channel and acceleration side for the
throttle channel).
• Offset: adds the offset value to the slave channel.
A negative value will shift the slave channel toward
its low side.
78 CARSON Reflex Wheel Ultimate Touch 500500516
Downloaded from www.Manualslib.com manuals search engine
When modifying the low side mix, the high side mix
or the offset, the master channel (at the top) and the
slave channel (at the bottom) are displayed in real
time.
In this example, the first mix is activated, the throttle
is the master. The channel 4 is the slave and the low
side mix is set to 50% thus having the channel 4
being added half of the value of the throttle when
braking.
• The activation of each of the 4 mixes function
can be assigned to a push button.
• The low side of each mix can be assigned to a
trim switch.
• The high side of each mix can be assigned to a
trim switch.
• The offset of each mix can be assigned to a trim
switch.
