Sensors/modules connections explained

Telemetry module FS-SPD02
Speed recognition module
GB
Procedure:
1. Connect one end of the 3-pin connecting cable
to the "Out" terminal of the telemetry module
and the other end to the "IN" terminal of the
receiver, or to the "IN" terminal of one of the
sensors already connected.

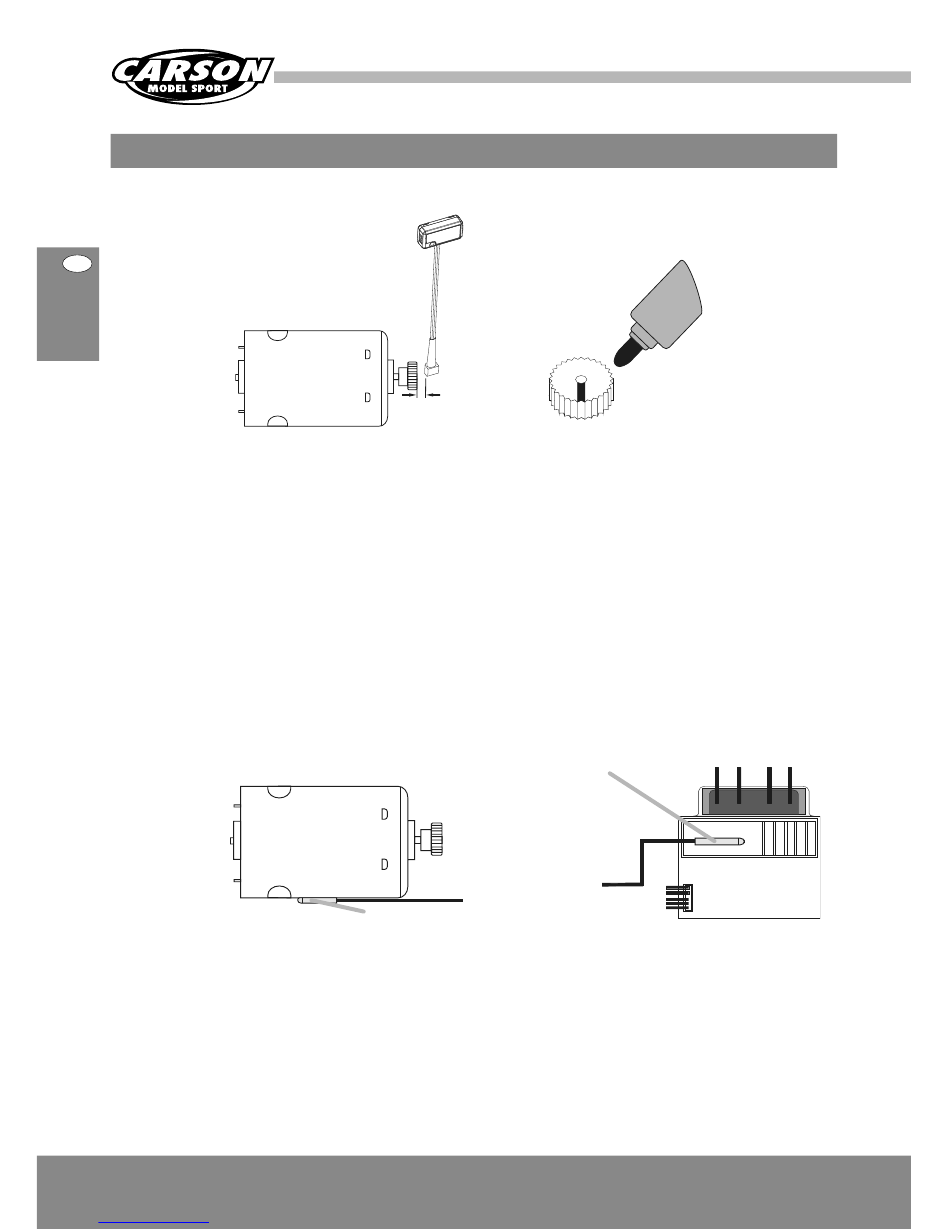

2. The sensor must be arranged on a flat surface next
to a rotating part such as the main gearwheel or
motor pinion or on the drive shaft. A line should
be drawn on the rotating part using a waterproof
black or white pen to identify the sensor.
Telemetry module FS-STM01
Temperature recognition module
Procedure:
1. Connect one end of the 3-pin connecting cable
to the "Out" terminal of the telemetry module
and the other end to the "IN" terminal of the
receiver, or to the "IN" terminal of one of the
sensors already connected.
2. Attach the temperature sensor in a desired
location (e.g. motor or ESC). You are advised to
secure this through direct contact with a strip of
adhesive tape.
62 CARSON Reflex Wheel Ultimate Touch 500500516
Downloaded from www.Manualslib.com
Temperature sensor for motor
manuals search engine
1 cm
(Note: The greater the colour contrast between
identifying line and rotating part, the better the
result). The distance between sensor and rotating
part should be no greater than 1cm.
3. Switch on the transmitter and the model (receiver).
"Motor Speed 2: 0 Upm" will now be displayed
on the main screen. The speed shown indicates
the revolutions per minute of the rotating vehicle
part on which the sensor is installed.
Temperature sensor for speed
controller
3. Switch on the transmitter and the model (receiver).
"Temperature 1: 25 0?" will now be displayed on
the main screen. The value shown indicates the
temperature of the vehicle part on which the
sensor is installed.
ESC
