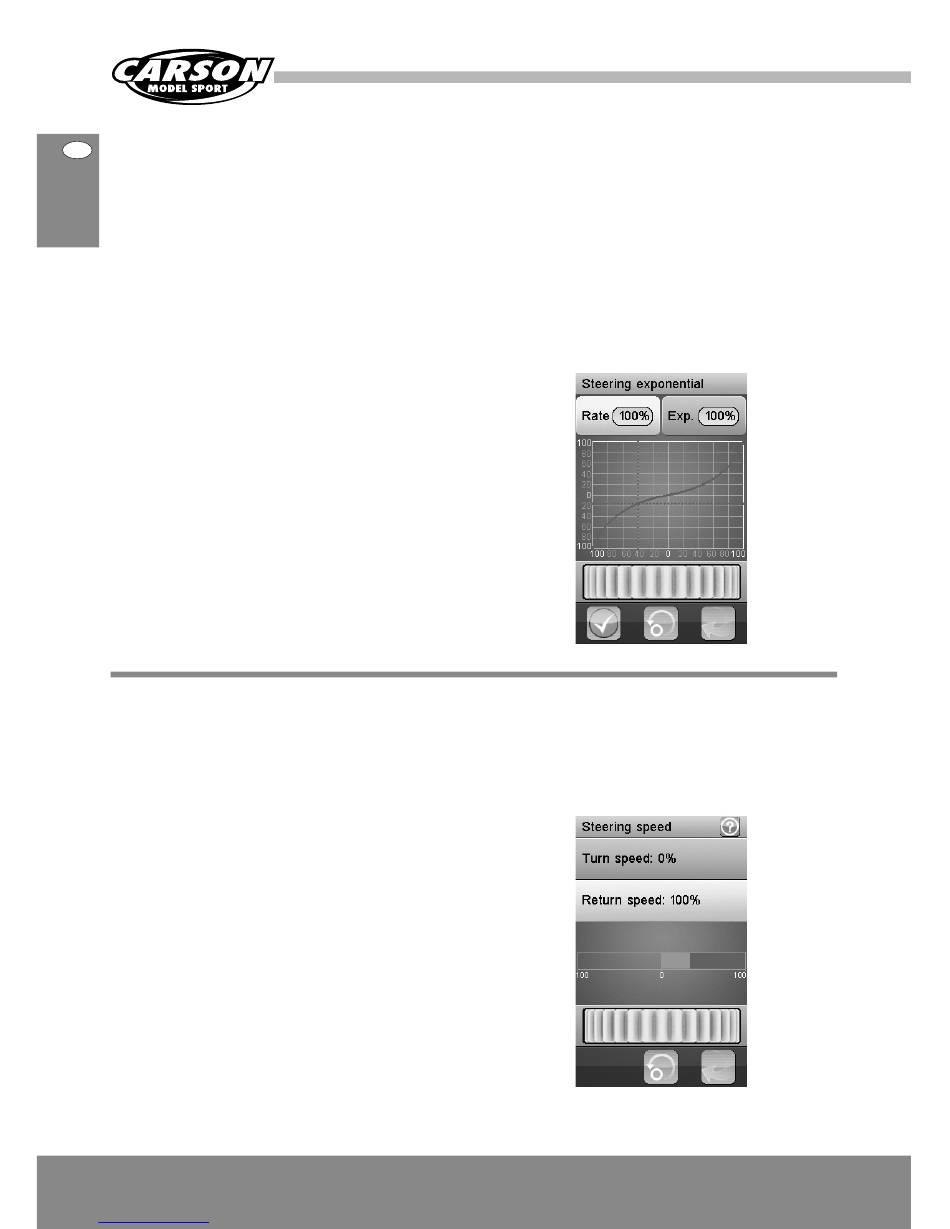

Steering exponential
D
The steering exponential function modifies the
transfer curve between the steering wheel and the
channel 1. Once activated, 2 buttons select which
parameter value to modify:
Rate: adjust the slope of the curve. The smaller is the
slope, the shorter is the throw of the corresponding
servo.
Exp.: adjust the Iinearity of the curve. A value of 0
corresponds to a perfectly linear curve.
A positive value decreases the sensitivity near the
neutral position and increases it on the extreme
sides. A negative value increase the sensitivity
near the neutral position and decreases it on the
extreme sides.
The vertical dotted line displays in real time the
position of the steering wheel. The horizontal dotted
Iine displays in real time the steering position after
the exponential function.
In this example, the exponential function is activated,
the selected parameter is exponential and is set to
its maximum value.
Steering speed
If the steering servo throws too fast to an extreme
position or returns too fast to its neutral position,
it may result in a loss of control of the vehicle.
The steering speed function limits the maximum
angular speed of the steering servo. 2 buttons select
which speed to limit.
Turn speed: limits the angular speed of the servo
toward its extreme side.
Return speed: limits the angular speed of the servo
toward its neutral position.
The status of the channel 1 (steering) is displayed
in real time. The red bar graph shows the position
of the steering wheel and the green bar graph the
position of the steering servo.
In this example, the turn speed parameter is selected
and is set to its slowest speed. The steering wheel
is completely turned to the right (in red) but the
steering servo (in green) due to its low turn speed is
late and just passed a third of its maximum throw.
72 CARSON Reflex Wheel Ultimate Touch 500500516
Downloaded from www.Manualslib.com manuals search engine
The horizontal dotted line shows a steering wheel
20% under the neutral position but the horizontal
dotted Iine indicates that the resulting servo throw
is less than 10% showing the efficiency of the
exponential function.
The activation of the steering exponential function
can be assigned to a push button. The steering
rate can be assigned to a trim switch. The steering
exponential can be assigned to a trim switch.
The steering turn speed can be assigned to a trim
switch. The steering return speed can be assigned
to a trim switch.
