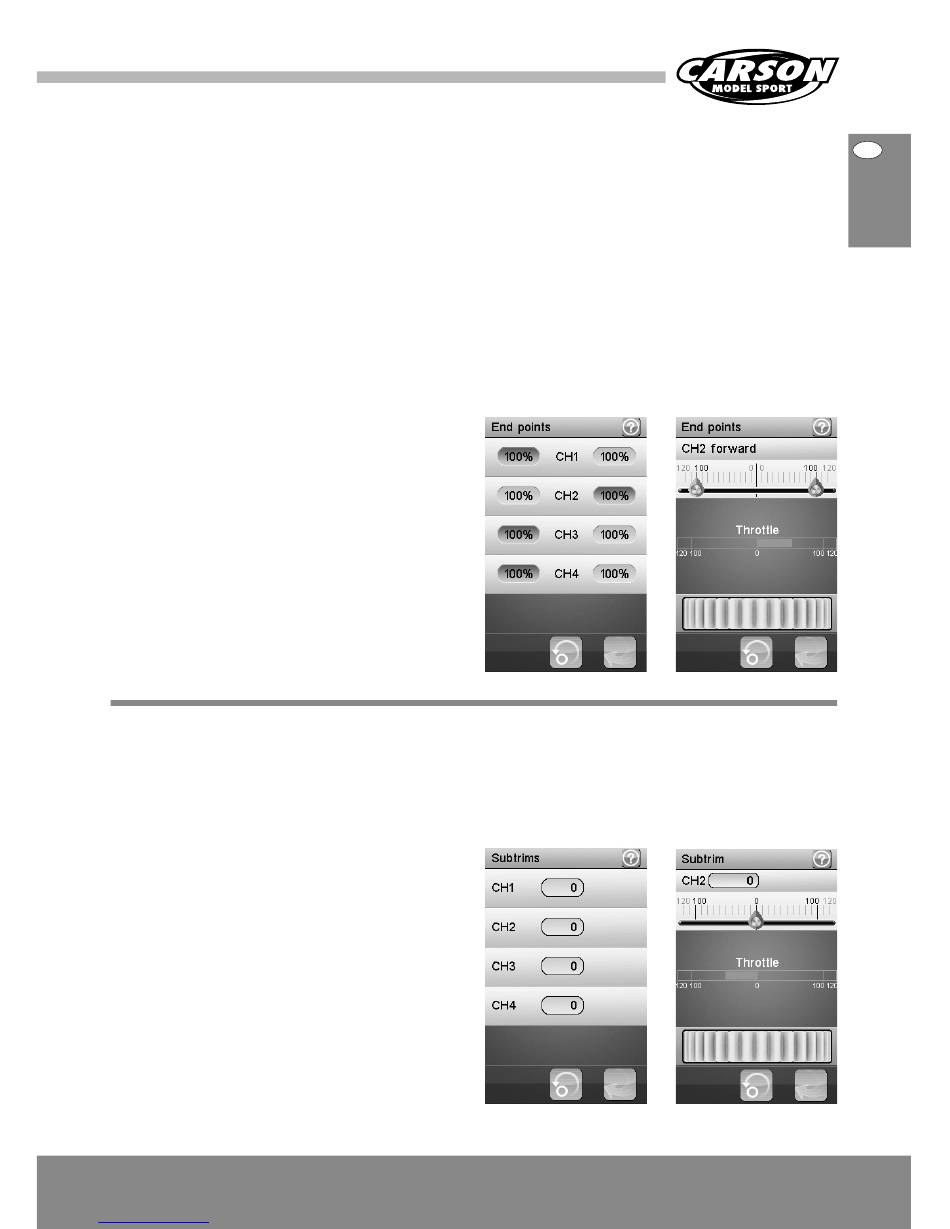

End points
The end points function individually adjusts the low
and high travel limit of each servo on the 4 channels.
Set the end points according to your model mechanics.
• To choose the side of the channel 1 end point
to set (steering), move the steering wheel to the
desired low or high side. The selected side will be
highlighted in yellow.
• To choose the side of the channel 2 end point
to set (throttle), move the throttle trigger to the
desired low (brake) or high (acceleration) side.
The selected side will be highlighted in yellow.
• To choose the side of channels 3 or 4 end point
to set, usa its corresponding trim or switch to
control it. A trim switch or push button has to
be previously associated with that channel to
be able to control it.
Sub trims
The sub trims function individually adjusts the
center position of each servo of the 4 channels.
This is particularly useful when the servo mechanics
doesn't allow an adjustment fine enough. Touch
the channel which sub trim must me adjusted.
Use the wheel to move the red needle and modify
the sub trim value of the selected channel. The
position of the corresponding channel is displayed
in real time.
Downloaded from www.Manualslib.com
CARSON Reflex Wheel Ultimate Touch 500500516
manuals search engine
In this example, the throttle trigger was moved to
it acceleration side thus selecting the high side end
point of the channel 2.
To modify the selected end point, simply touch
the corresponding channel button. The red needle
represents the selected side. Use the wheel to move
it and modify the end point value.
The position of the corresponding channel is displayed
in real time. In this example, the acceleration side
of the throttle is selected and the throttle trigger is
half accelerating.
In this example, the channel 2 (throttle) has been
selected and the throttle trigger is half braking.
The sub trim of each channel can be assigned to
a trim switch.
