Grounding Considerations
The slide onto which the sensor head is to be mounted must be grounded.
Inner shield: Insulated from outer shield, sensor case, and
connector housing. Connected to circuit common inter-
nally as supplied by SIKO
Electrically conductive
mechanical connection (as
supplied by SIKO).

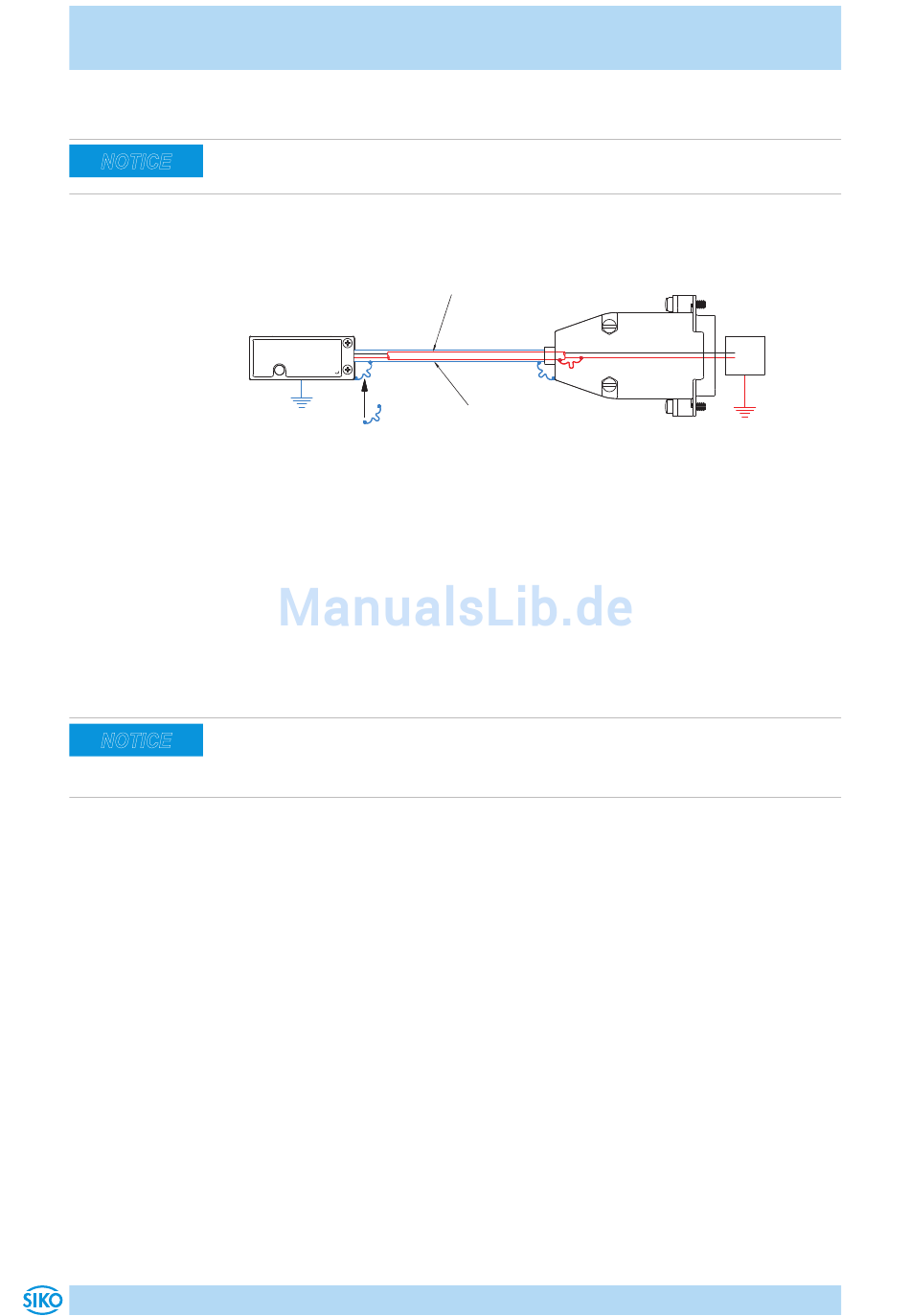

Fig. 18: Sensor mounted with good electrical contact to well grounded sur-
face (preferred)

10.3 Software installation

Be sure the diagnosis tool is "not" plugged in to the computer USB while
installing the software. The Diagnostic Tool needs to be plugged in "after"
the software is installed, in order to properly load the USB driver.
Insert CD into drive. Installer should automatically start up and install
Diagnosic Tool software to C:\Program Files\SIKO\Diagnostic Tool. If it
does not start automatically browse to CD and run setup.exe to install
software. If you install the software on a 64-bit computer, select setup.exe
in the x64 folder.
Install the USB Driver
Windows 2000:
1. Connect the USB cable between the host computer and the Diagnos-
tic Tool / sensor.
2. When the electronics are on, Windows will notify you it has found new
hardware prompting you with a "Found New Hardware" wizard. Press
the Next button.
3. Select "Search for a suitable driver for my device (recommended)" and
press the Next button.
4. Select "Specify a location" under "Optional search locations:" and
