LSC20
Installation
Sensor Head Installation

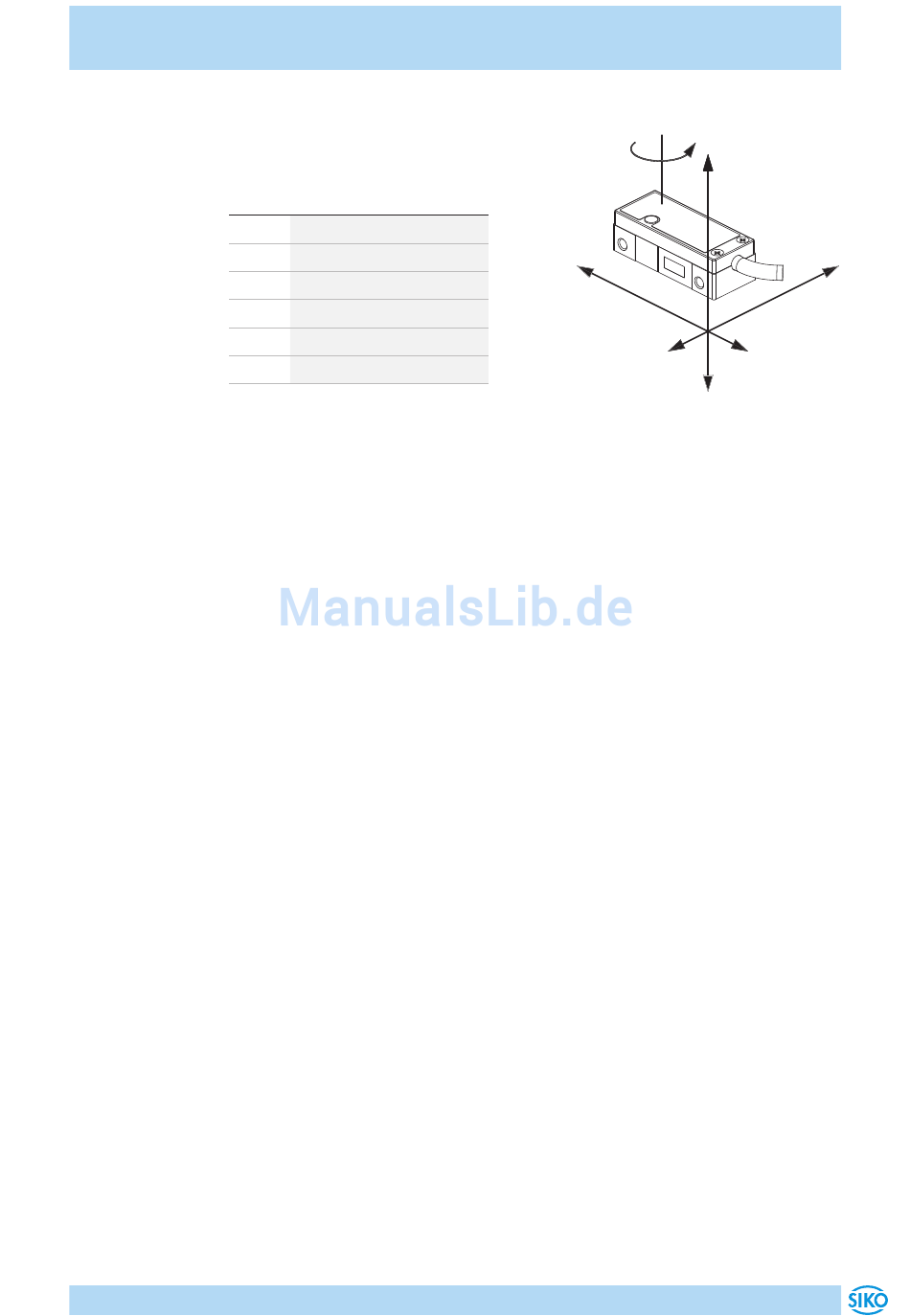

Sensor Mounting Orientation and Tolerances
Axis
X
Y
Z
0
X
0
Y
0
Z
Use a wrench and M3 screws to install the sensor. Refer to interface draw-
ing to make sure sensor is oriented properly with reference to the scale.
Verify Sensor Mounting Surface Height
Refer to the LSC20 interface drawing for detailed dimensions. Use dis-
tance gauge to verify that the Z-height distance between the bottom sur-
face of the sensor and the top of the scale is as follows:
Tape Scales:
Use red spacer (1.00mm) to set the proper Z-height.

Installation Steps

1. Loosen the sensor in the Z-axis
2. Place shim between the bottom of the sensor head and the top of the
3. Tighten the sensor in the Z-axis
4. Carefully remove the shim by rotating it off the scale with the shim's
LSC20 · Date 08.07.2014 · Art. No. 87296 · Mod. status 012/14
Alignment Tolerance
Direction of Motion
± 0.20 mm
± 0.15 mm
± 1.0°
± 1.0°
± 2.0°
scale and press down in the Z-axis. Shim can be inserted either paral-
lel or perpendicular to the scale. The shim features cut-outs to allow-
signal level to be monitored during sensor mounting
Fig. 6.
handle
O
z
X
Fig. 2: Axis diagram
Fig. 3
Fig. 5.
English 31
Y
Z
Fig. 4.
