Left Limit Out
* With reference to the optical axis, lateral groove on the housing

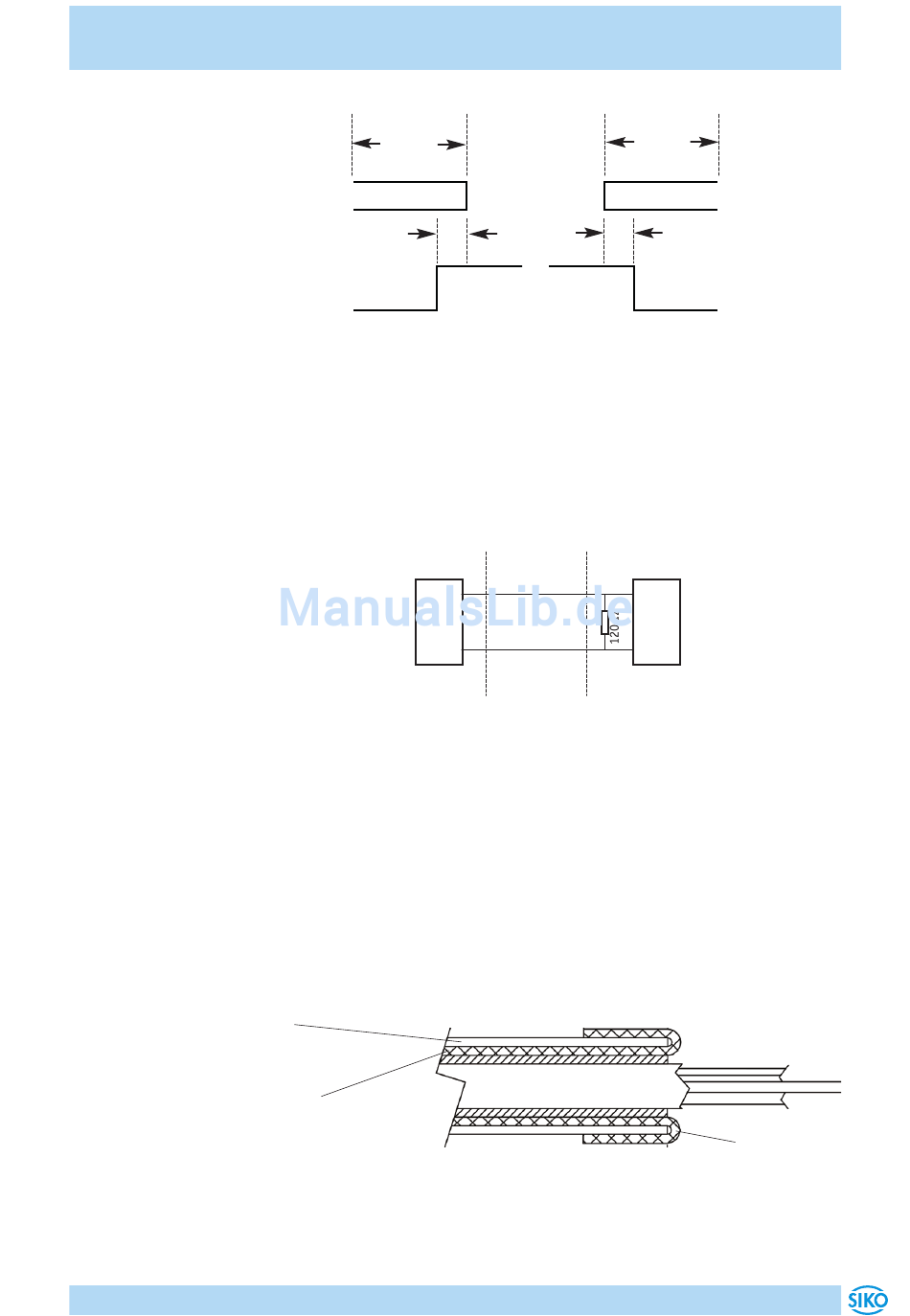

Fig. 15: Limits
Recommended Signal Termination
Fig. 16: Standard RS-422 Line Receiver Circuitry
Max cable length: 5m.
Shield Termination
The customer's cable shield should be in 360° contact with the connector
shroud and the connector shell to provide complete shielding. The connec-
tor shell should be metal with conductive surfaces. Suggested metal con-
nector shells for use with LSC20: AMP 748676-1 or equivalent. The shield
should be terminated as illustrated in the following diagram.
Jacket
Aluminium
Polyester
Shied
Fig. 17: Cable shield
