4. Left limit calibration: move the sensor over to the "left limit" area
5. Right limit calibration: Move the sensor over to the "right limit" area
` to skip a step, push and hold the Cal button for 2 seconds until LED's

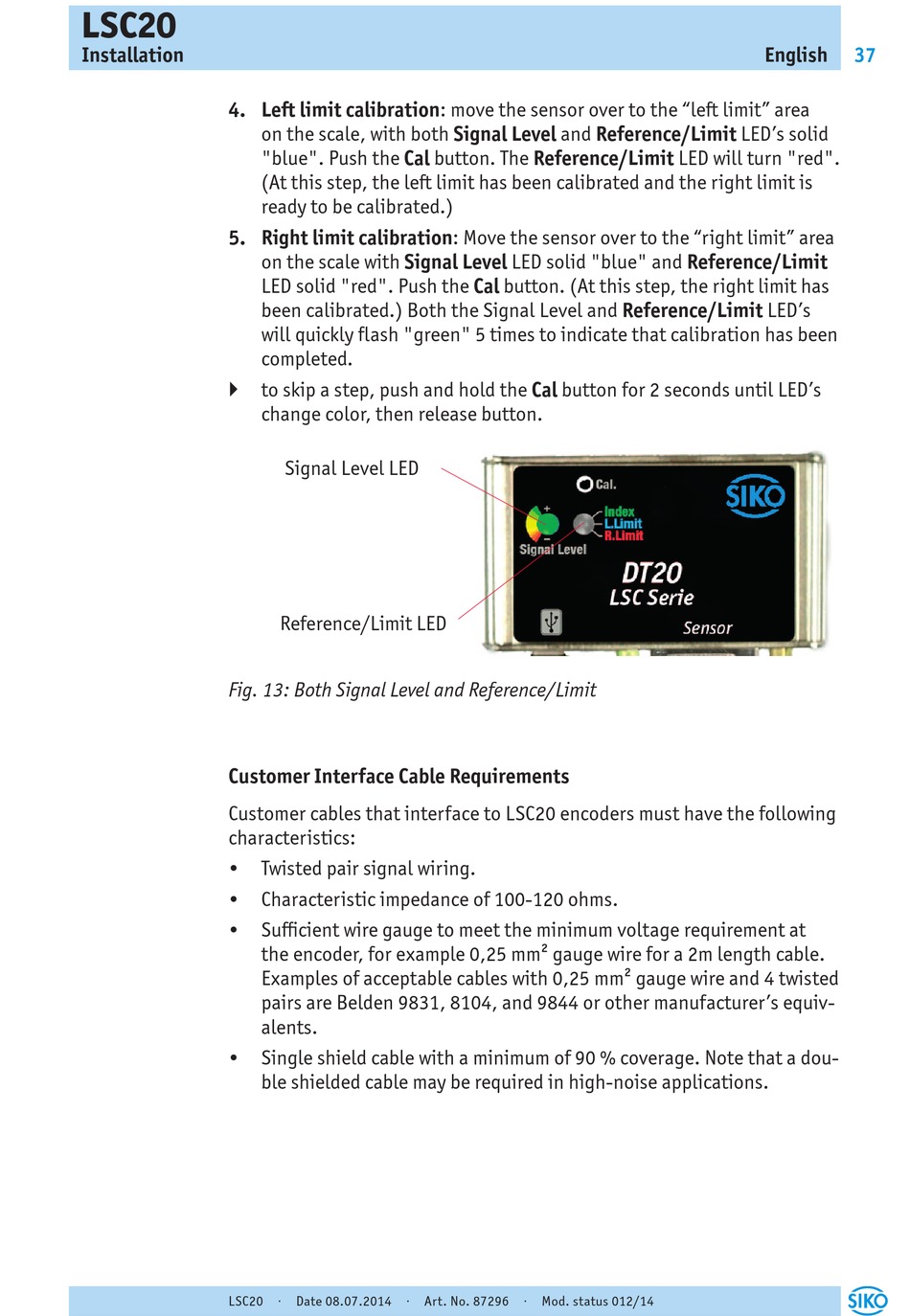

Fig. 13: Both Signal Level and Reference/Limit
Customer Interface Cable Requirements
Customer cables that interface to LSC20 encoders must have the following
characteristics:
• Twisted pair signal wiring.
• Characteristic impedance of 100-120 ohms.
• Sufficient wire gauge to meet the minimum voltage requirement at
• Single shield cable with a minimum of 90 % coverage. Note that a dou-
LSC20 · Date 08.07.2014 · Art. No. 87296 · Mod. status 012/14
on the scale, with both Signal Level and Reference/Limit LED's solid
"blue". Push the Cal button. The Reference/Limit LED will turn "red".
(At this step, the left limit has been calibrated and the right limit is
ready to be calibrated.)
on the scale with Signal Level LED solid "blue" and Reference/Limit
LED solid "red". Push the Cal button. (At this step, the right limit has
been calibrated.) Both the Signal Level and Reference/Limit LED's
will quickly flash "green" 5 times to indicate that calibration has been
completed.
change color, then release button.
Signal Level LED
Reference/Limit LED
the encoder, for example 0,25 mm² gauge wire for a 2m length cable.
Examples of acceptable cables with 0,25 mm² gauge wire and 4 twisted
pairs are Belden 9831, 8104, and 9844 or other manufacturer's equiv-
alents.
ble shielded cable may be required in high-noise applications.
