LSC20
38 Installation

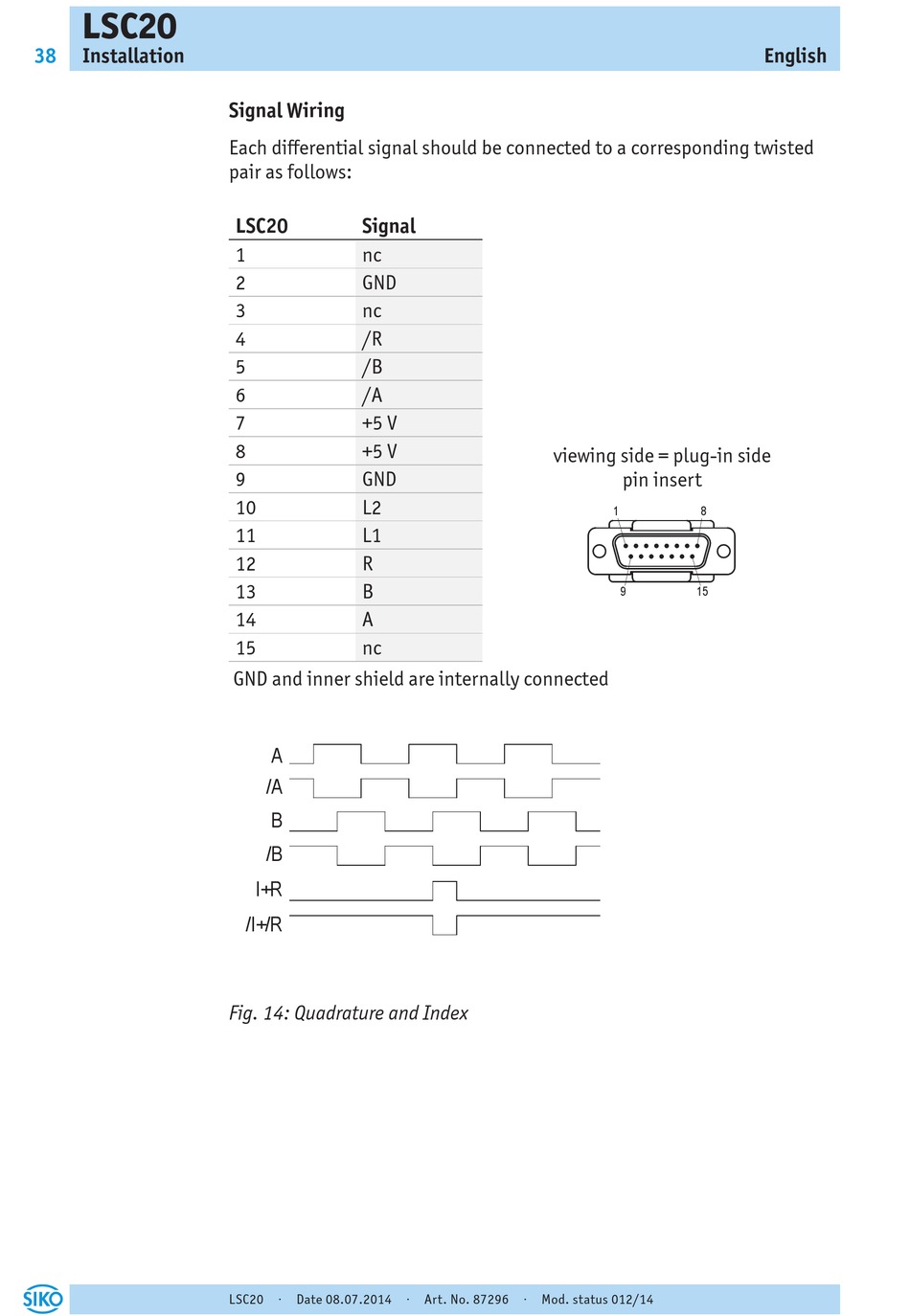

Signal Wiring
Each differential signal should be connected to a corresponding twisted
pair as follows:
LSC20 Signal
1 nc
2 GND
3 nc
4 /R
5 /B
6 /A
7 +5 V
8 +5 V
9 GND
10 L2
11 L1
12 R
13 B
14 A
15 nc
GND and inner shield are internally connected






Fig. 14: Quadrature and Index
LSC20 · Date 08.07.2014 · Art. No. 87296 · Mod. status 012/14
viewing side = plug-in side
pin insert
 
 
