LSC20
Installation

10.2 Electrical installation

Destruction of parts of equipment and loss of regulation control
WARNING
` All lines for connecting the sensor must be shielded.
` Do not disconnect or close live connections.
` Perform wiring work in the de-energized state only.
` Prior to switching on check all mains and plug connections.
` Switch on operating voltage together with downstream electronics (e.
Basically, all connections are protected against external interference.
NOTICE
When mounting the system keep a maximum possible distance from lines
loaded with interference. If necessary, provide additional installations
including screening shields or metallized housings.
When connecting sensor and follower electronics, please do not exceed
NOTICE
the max. admissible cable length.
Tinned strands must not used in combination with screw/clamp connec-
NOTICE
tions.
Sensor alignment by DT20 Diagnostic Tool
DT Diagnostic Tool

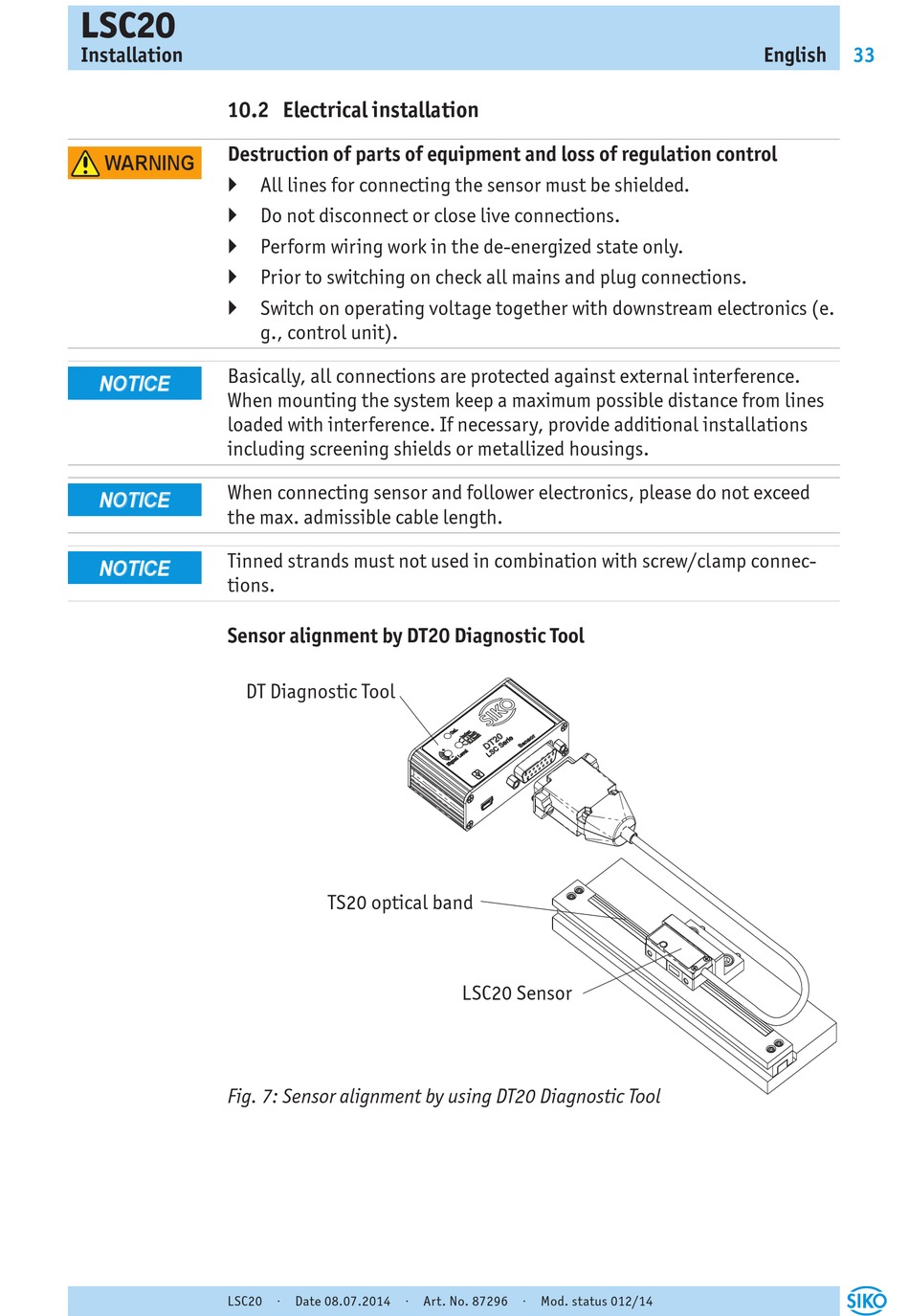

Fig. 7: Sensor alignment by using DT20 Diagnostic Tool
LSC20 · Date 08.07.2014 · Art. No. 87296 · Mod. status 012/14
g., control unit).
TS20 optical band
LSC20 Sensor
English 33
