STEP 6 – LATCH/LATCH HOOK INSTALLATION
WHAT YOU'LL NEED
Tools: Flat screwdriver
3/8" wrench
Hardware: 6a – (8) 10-32 x 3/8" machine screws
6b - (4) #10 flat washers
6c - (4) #10 split lock washers
6d – (4) 10-32 hex nuts
6e – (4) 10-32 serrated flange locknuts
6f - (2) Latch hooks
6g - (2) Latches
Parts: Complete Drum assembly (from step 4)

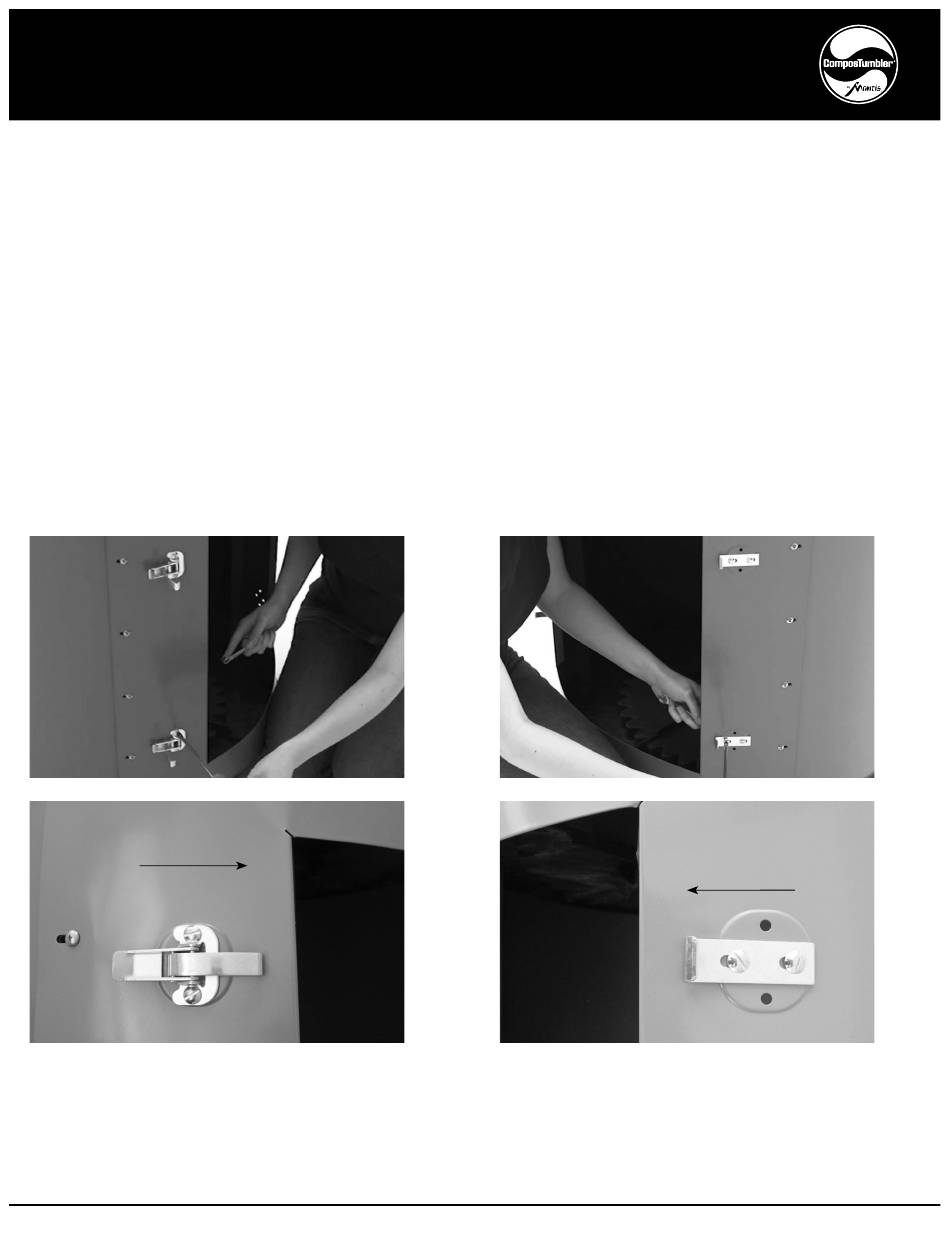

6.1
Attach the latches (6g) to one side of the door
opening with the hooks of the latches positioned
toward the opening. Secure them with #10 screws
(6a) and serrated flange locknuts (6e) with the Bolt
Head on top of the Latch. Use the screwdriver and
3/8" wrench to tighten the latches.
Door Opening
6.2
Door Opening
Position the Latch Hooks on the other side of the panel
opening with the hook ends toward the opening and attach
them with the #10 screws (6a), flat washers (6b), split lock
washers (6c), and hex nuts (6d). Be sure the flat washer,
lock washer and nut are on the underside of the panel in the
recess, with the Bolt head on top of the Latch Hook. Use
the screwdriver and 3/8" wrench to tighten the latch hooks.
