STEP 3 – DRUM PANEL B ASSEMBLY
WHAT YOU'LL NEED
Tools:
Philips screwdriver
3/8" wrench
Hardware:
3a - (12) ½" Philips truss head shoulder bolts
3b - (12) Flat washers
3c - (12) Nylon insert lock nuts
Parts:
Item 2 - (1) Drum Panel B
3.1

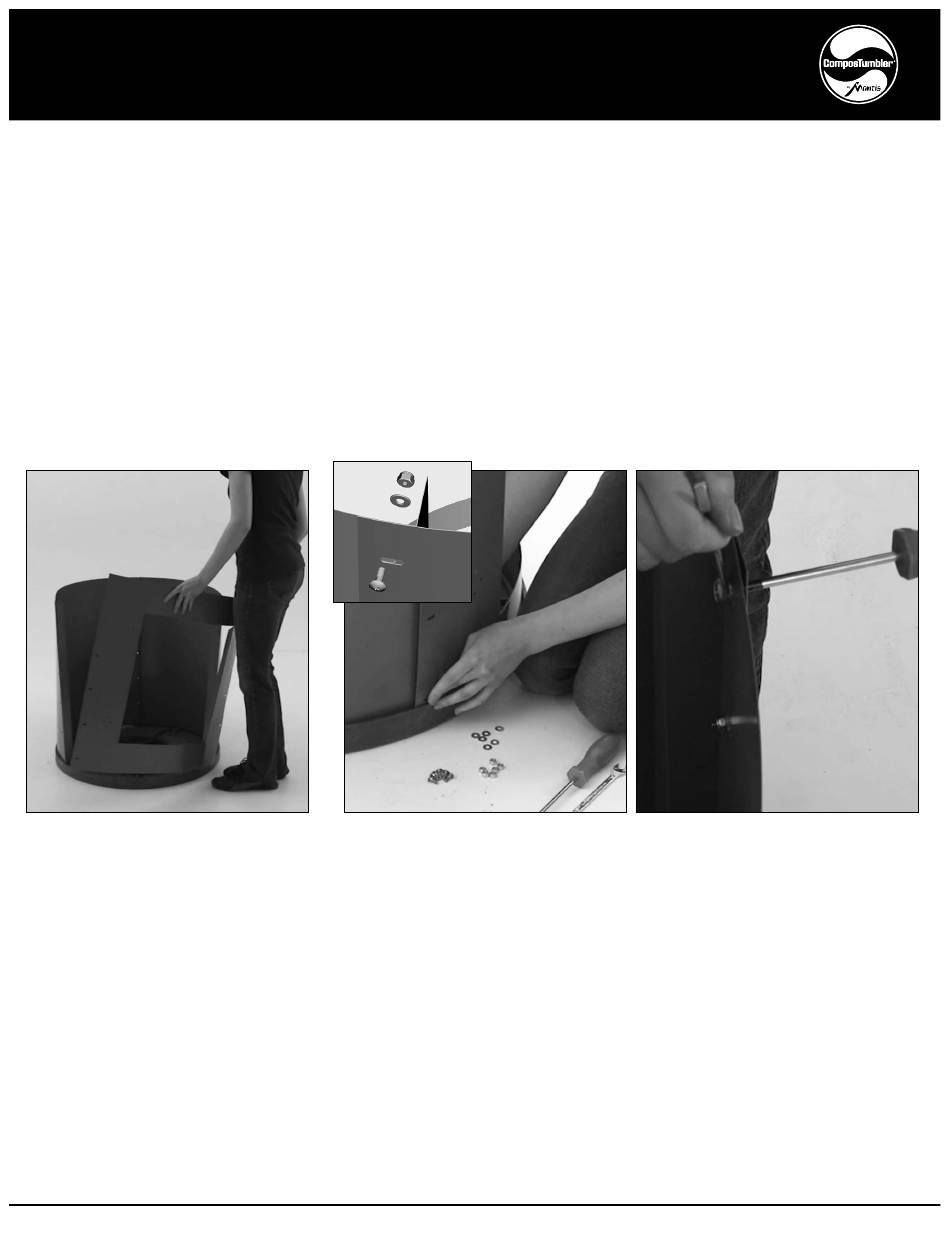

With the fins on the Drum Panel B
opening facing into the drum, insert
drum panel B into the remaining open
space in the endcap.
STEP 4 – ENDCAP INSTALLATION
WHAT YOU'LL NEED
Tools:
7/16" wrench
Adjustable wrench
Hardware:
4a - (6) ¼" Acorn cap nuts
Parts:
Item 4 - (1) Endcap
Item 7 - (3) Tie rods
3.2
Align the holes and fasten drum panel B to the drum with the shoulder bolts,
washers, and lock nuts.
7
