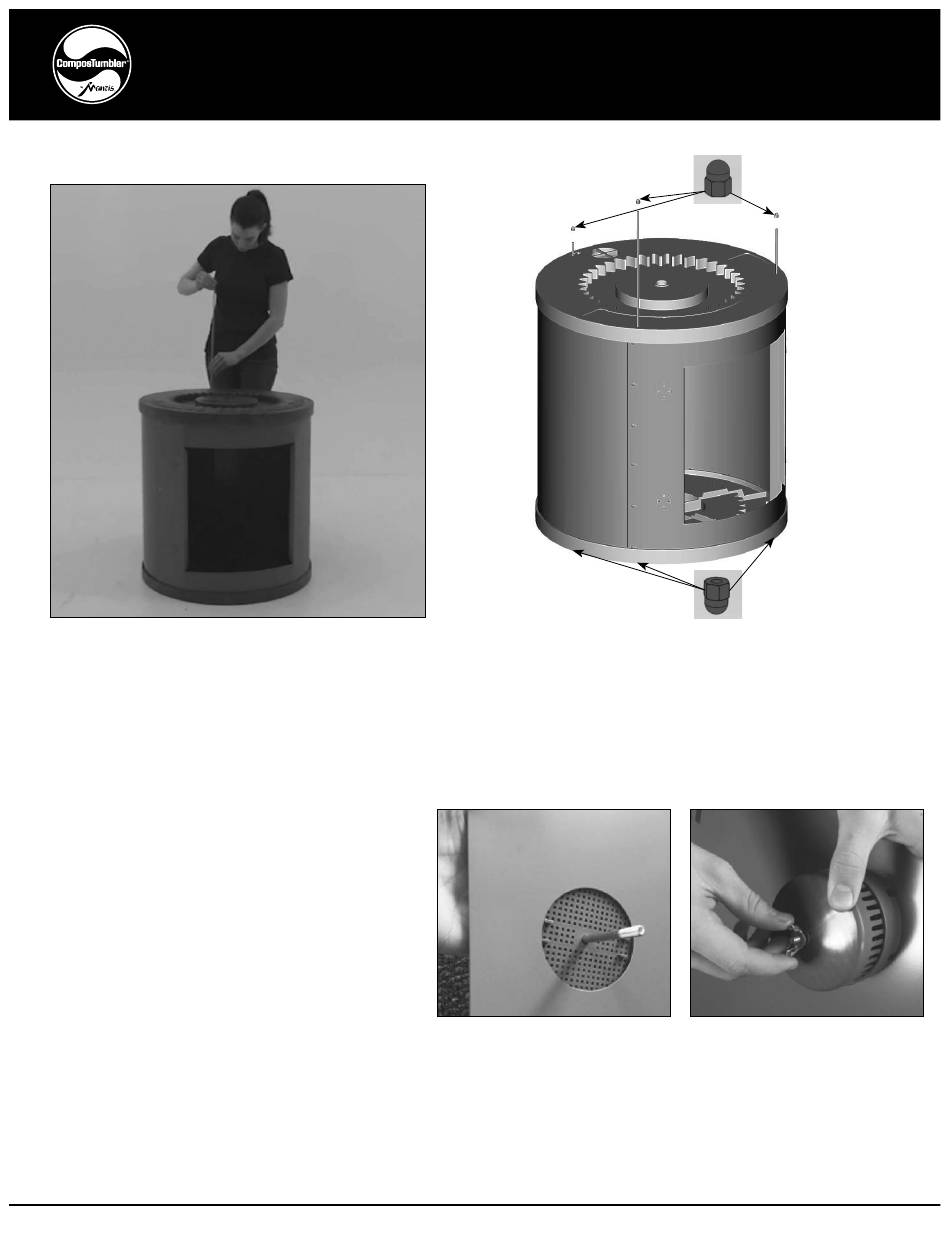

Mantis Compact ComposTumbler CT02001 Montageanleitung Seite 8

4.1
Place the second endcap on the open end of the
assembled drum. Note that when the endcap
is properly aligned, the vent openings will be on
opposite sides of the same center mixing fin.
STEP 5 – ENDCAP INSTALLATION
WHAT YOU'LL NEED
Tools:
None
Hardware: 5a - (2) ¼-20 x 3-1/4" Hex head cap screws
5b - (2) ¼-20 Wing nuts
Parts: Item 3 - (1) Door
Item 5 - (2) Aerator base
Item 6 - (2) Aerator cap
8
4.2
Thread an acorn cap nut onto one end of each of the tie
rods (2-3 turns only) and insert the rods trough the holes in
the end cap. Guide the other end of each tie rod through the
hole in the opposite endcap. Reach out under the endcap
and thread acorn cap nuts over the other ends of the tie
rods. Tighten all acorn cap nuts with the wrenches.
5.1
Aerator Base
Insert a 3-1/4" long Hex head
cap screw through the aerator
base and position the two pieces
on the outside of the door as
shown below.
5.3
Repeat steps 5.1 and 5.2 with the second aerator base and cap.
5.2
Aerator Cap
Slide the aerator cap over the
hex head screw and fasten with
the wing nut (finger tight only)
