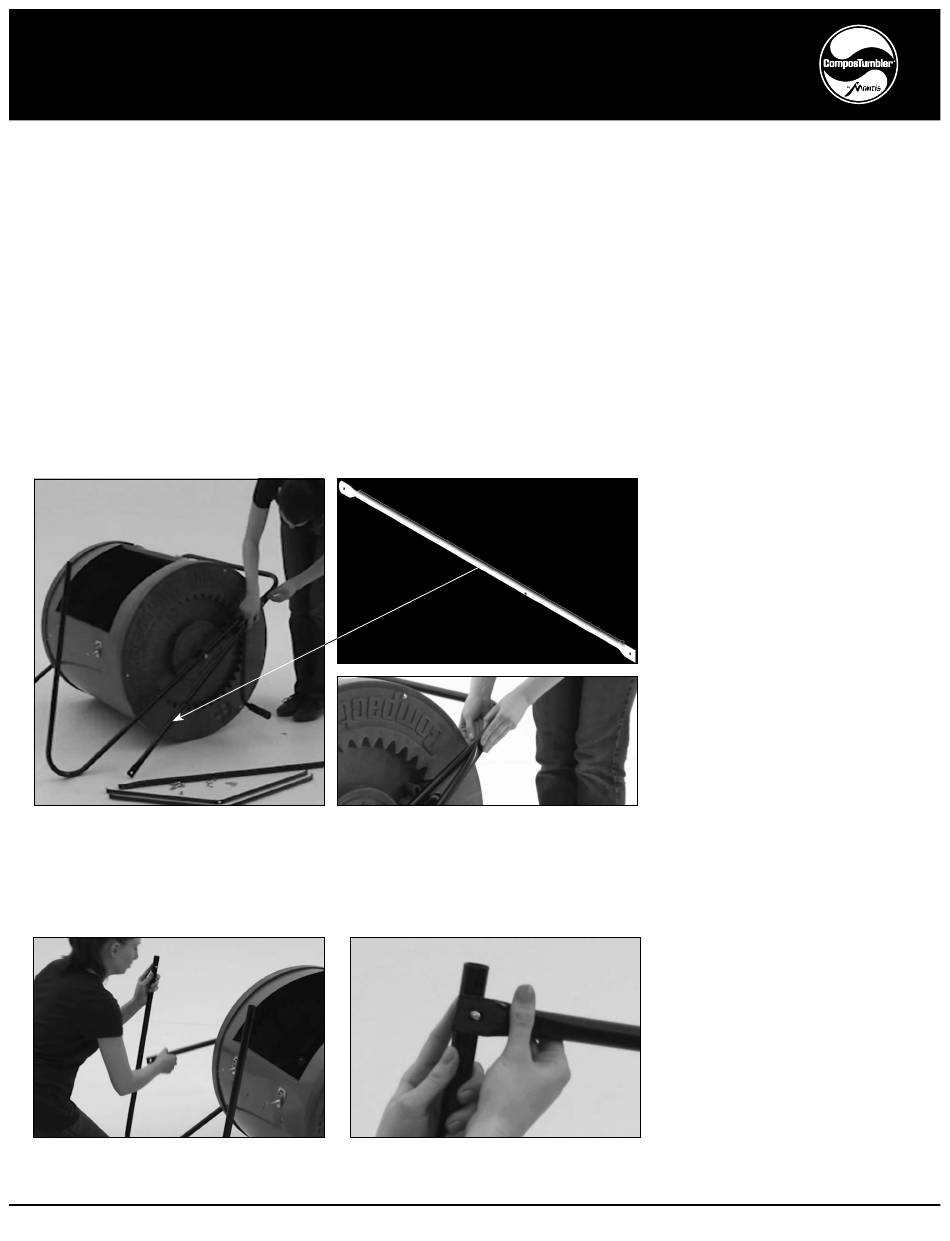

STEP 11 – COMPLETING THE FRAME
WHAT YOU'LL NEED
Tools: Adjustable wrench
7/16" wrench
Hardware: 11a - (1) ¼-20 x ¾" Hex head cap screw
11b – (6) ¼-20 x 1-1/2" Hex head cap screw
11c – (7) ¼ Medium split lock washer
11d – (7) ¼-20 Hex nut
Parts: Item 12 - (2) Strut
Item 10 - (2) Brace
11.1
Position the flattened face of a strut against the outside of the drive assembly and
fasten with a 1-12" hex head cap screw, lock washer, and hex nut (finger tighten
only at this point). Note: You should use the end of the strut that does not have a
second hole close to the end.
11.3
Push a hex screw through the hole in the end of the frame leg and attach the other
end of the strut. Note: Do not add any washers/nuts at this time.
Strut
11.2
Repeat with the second
strut on the other side.
