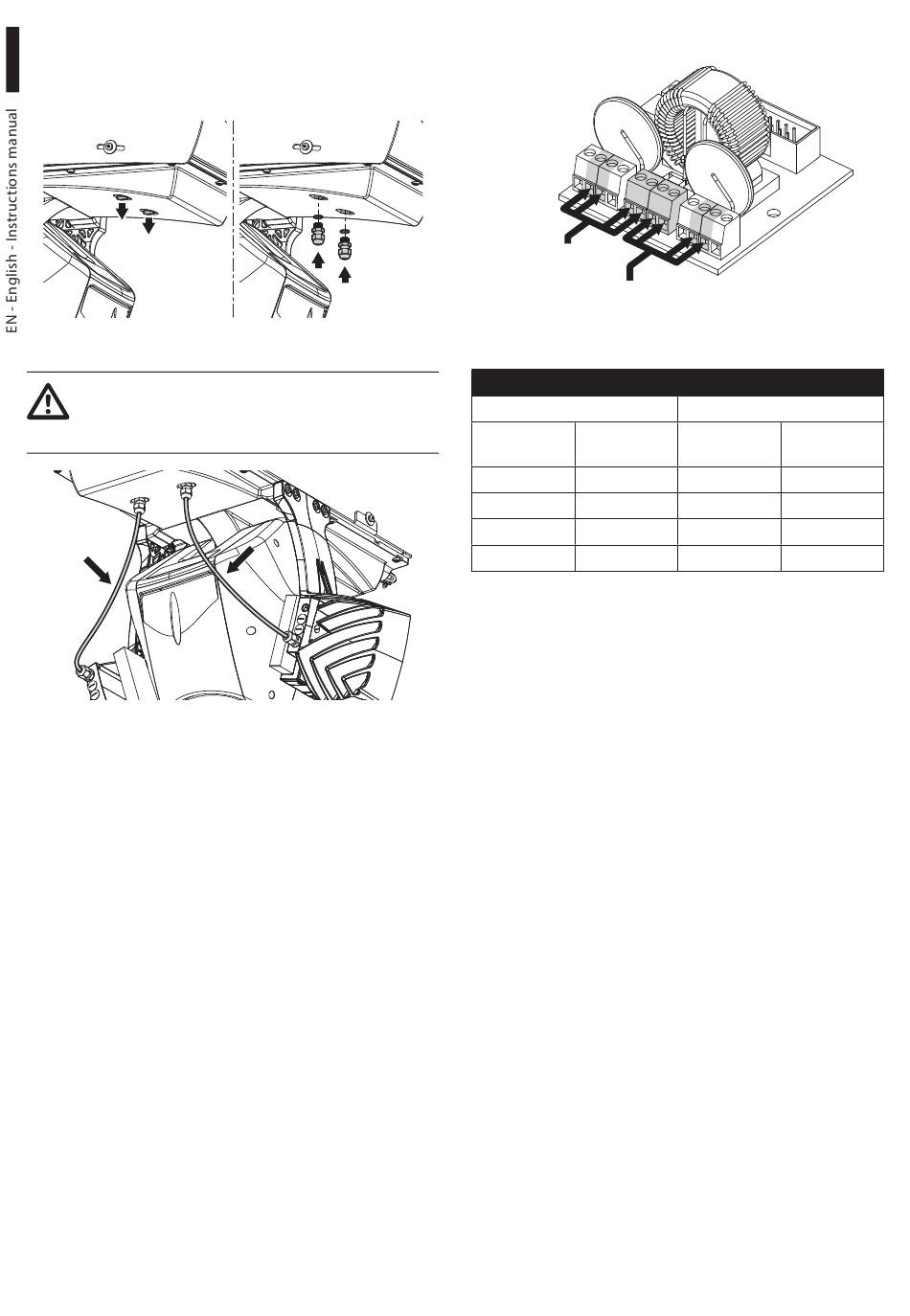

7.2.8 Connection of the LED illuminators

Remove the 2 M12 caps. Tighten the 2 cable glands
and relative O-rings supplied.
Fig. 43
To ensure the safety and the correct
operation of the unit do not leave a surplus
of the cable externally.
Fig. 44
26
Connect the cables as shown in figure.
Left illuminator
Fig. 45
CONNECTION OF THE LED ILLUMINATORS
Left illuminator
Reference on Cable color
the board
WH White
BK Black
A1 Green
B1 Red
Tab. 7
Right illuminator
Right illuminator
Reference on Cable color
the board
WH White
BK Black
A2 Green
B2 Red
MNVCUPTMAXIR_1430_EN
