7.2.3.4 Connection of the alarm inputs, of
the twilight switch and of the relays
CAUTION! TNV-1 installation type. The
installation is type TNV-1, do not connect it
to SELV circuits.
CAUTION! In order to reduce the risk of fire,
only use cable sizes greater than or equal to
0.13mm² (AWG 26).
All signal cables must be grouped together
by means of a strap.

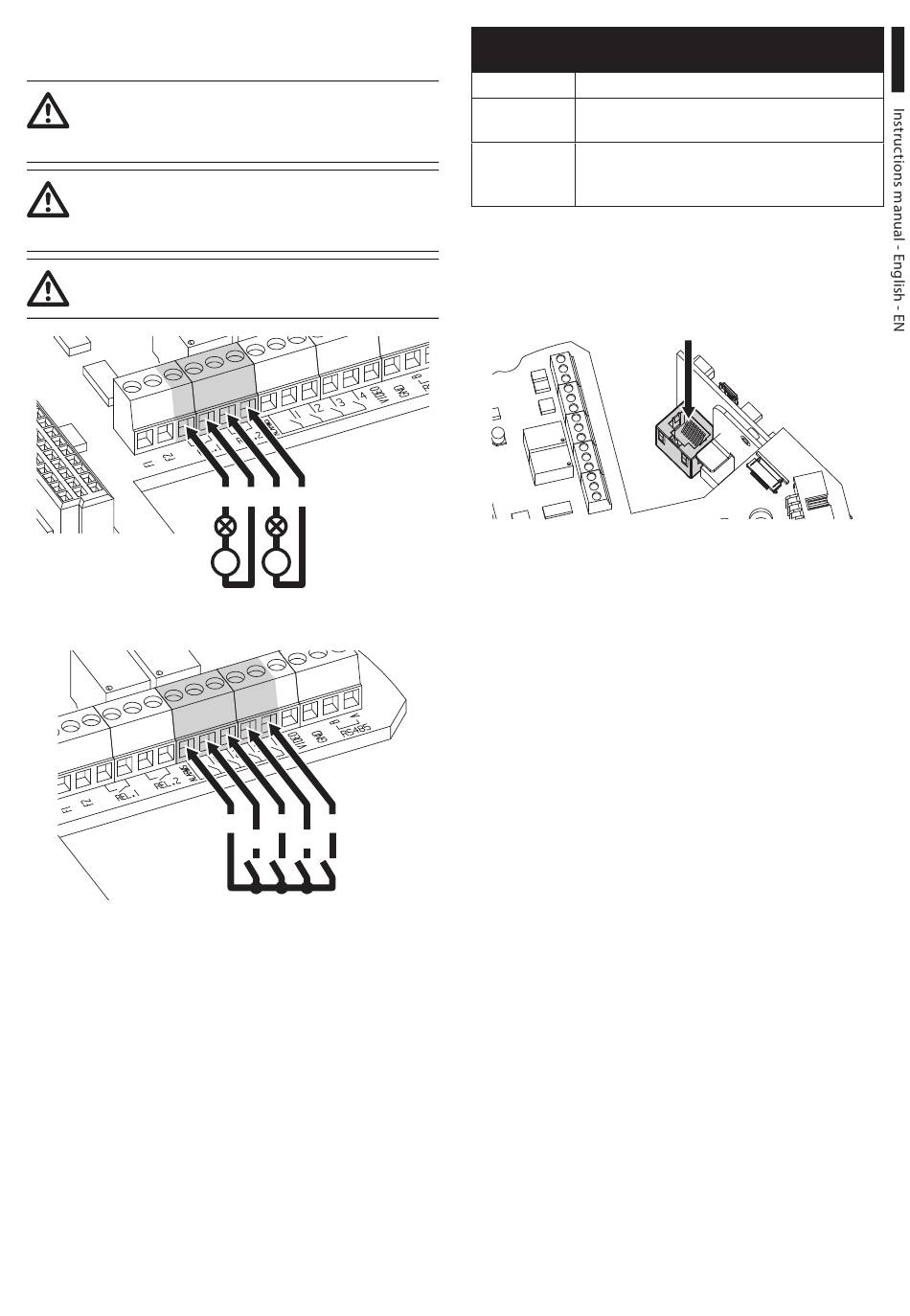

Fig. 33
Relay contact connection.
Fig. 34 Alarms connection.
MNVCUPTMAXIR_1430_EN
O1 C1 O2 C2
V V
AGND AL2 AL4
AL1 AL3
CONNECTION OF THE ALARM INPUTS, OF THE
TWILIGHT SWITCH AND OF THE RELAYS
Terminals Description
O1-C1 and Clean output contacts, can be activated by
O2-C2 alarm or by user control
AL1, AL2, Self powered alarm inputs referring to AGND
AL3, AL4 and
AGND
Tab. 6

7.2.4 Connection of the Ethernet cable

Connect the Ethernet cable to the connector.
Fig. 35
Ethernet
