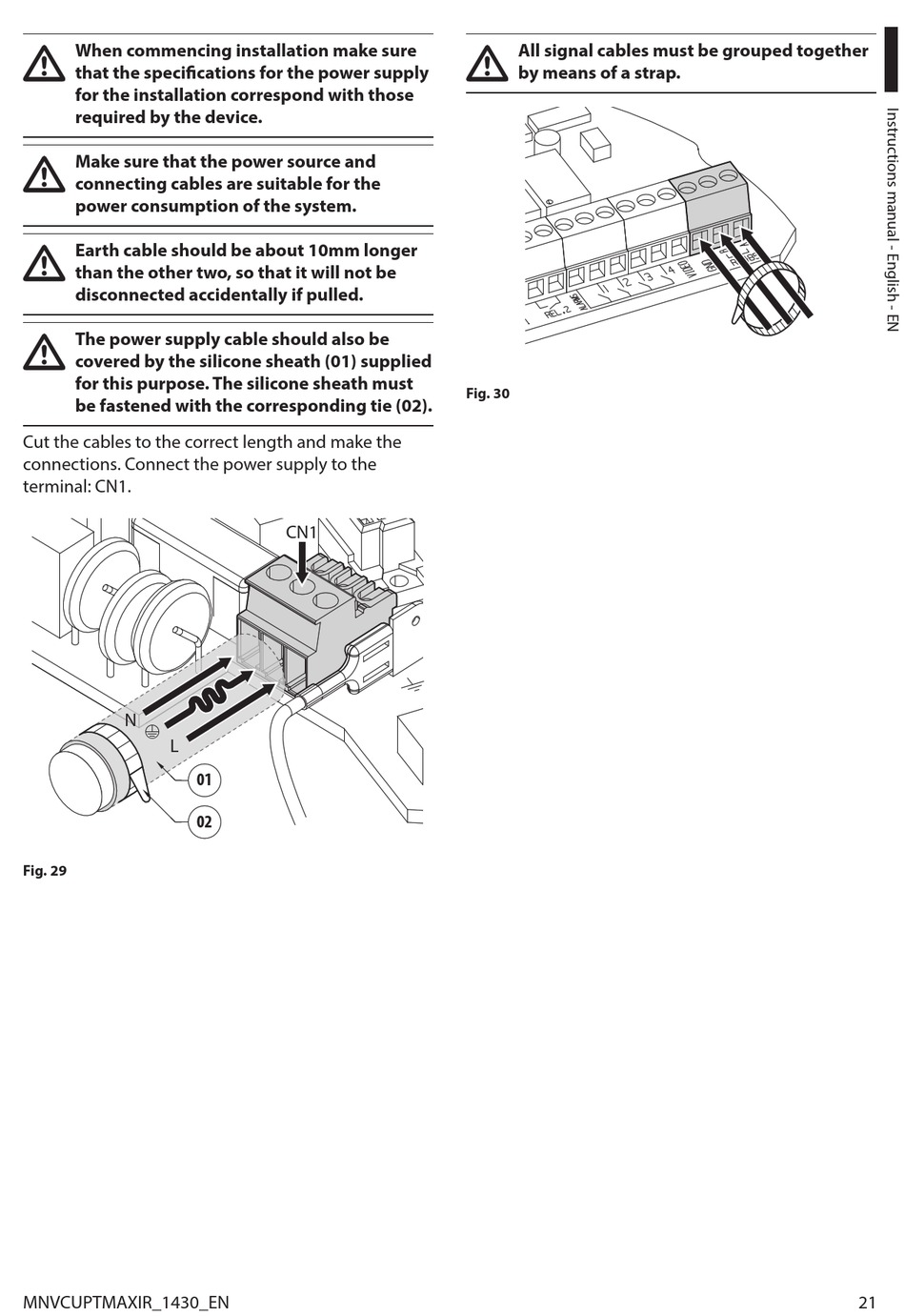

When commencing installation make sure
that the specifications for the power supply
for the installation correspond with those
required by the device.
Make sure that the power source and
connecting cables are suitable for the
power consumption of the system.
Earth cable should be about 10mm longer
than the other two, so that it will not be
disconnected accidentally if pulled.
The power supply cable should also be
covered by the silicone sheath (01) supplied
for this purpose. The silicone sheath must
be fastened with the corresponding tie (02).
Cut the cables to the correct length and make the
connections. Connect the power supply to the
terminal: CN1.
N
a
L
Fig. 29
MNVCUPTMAXIR_1430_EN
CN1
01
02
All signal cables must be grouped together
by means of a strap.
Fig. 30
