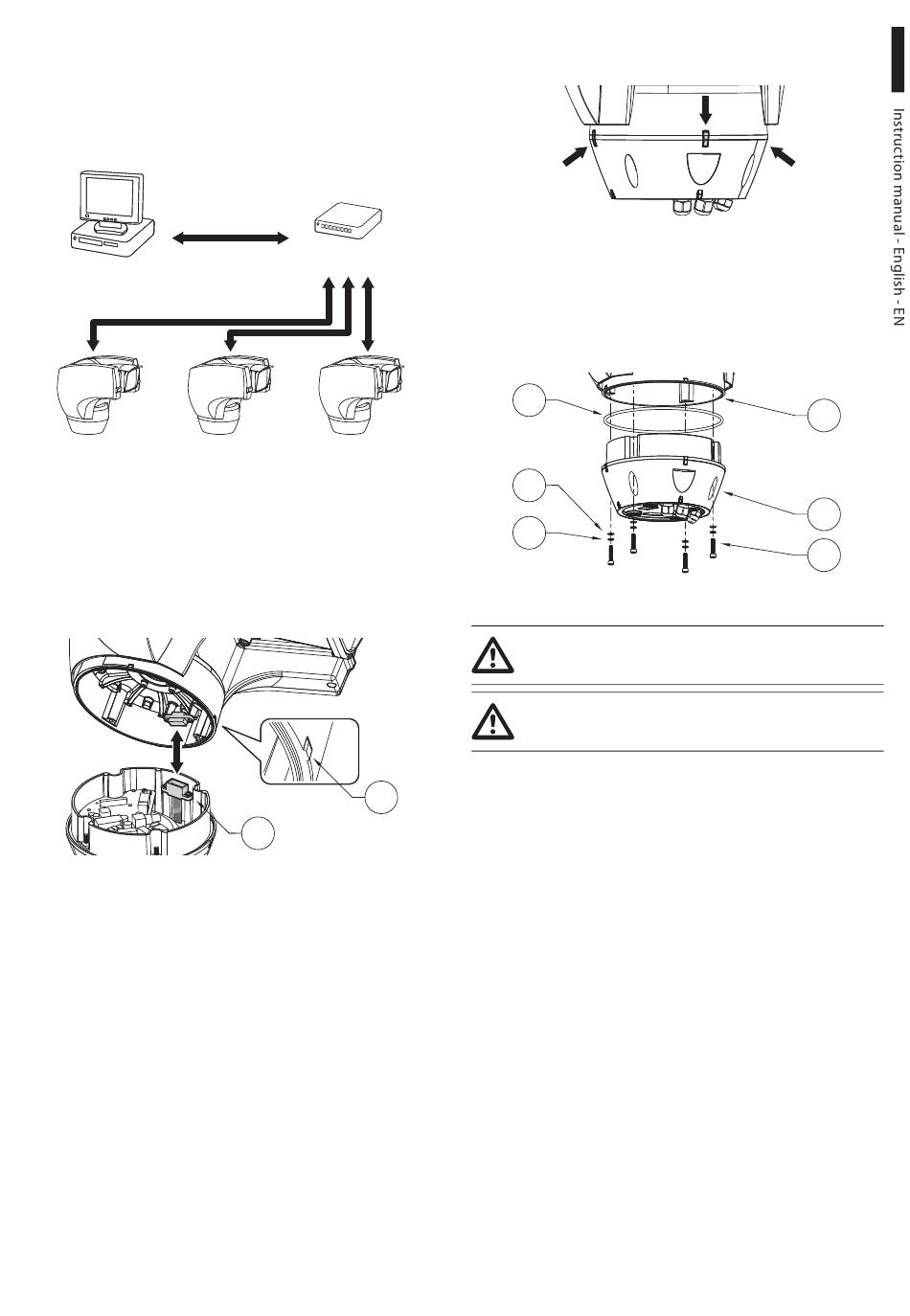

7.4.5 Connection of the Ethernet cable

Connect the J1 connector of the secondary connector
board using a 5E category, or higher, UTP cable (7.4.1
Description of the secondary board, page 13).
The example below shows a typical installation.
Personal
Computer
Fig. 14

7.5 Fixing the upper body

Point the self-centering connector (01) of the upper
unit. Point the side set (02) so that it faces the frontal
vision of the camera. Position the upper part on the
base in the same direction shown in the figure.
Fig. 15
MNVCUCHDB_1905_EN
Hub / Switch
02
01
The side sets on the base and on the upper unit are
thus aligned in the only possible position.
Fig. 16
Fasten the upper unit (01) to the base (02) by means
of the fastening screws (03), the notched washers (04)
and the flat washers (05). Make sure that the base
gasket is in position and in good state (06).
06
05
04
Fig. 17
Apply a Loctite 243® type thread-locker on
the holes of the screws.
Pay attention to the fixing. Tightening
torque: 4Nm.
01
02
03
