4.3 Video cable connection

CDS installation type (Cable Distribution
System). The installation is type TNV-1, do
not connect it to SELV circuits.
The operations described in this chapter
can only be performed in the analogue
versions of the product.
The RS-485 cable must always be connected
when configuring the device settings and
performing firmware updates.
A black video cable is included in the multi-polar
cable.
Depending on the version, the video cable requires
the following type of connector:
• Multi-polar cable version: RG 179/U
• Cable tail version: RG 59B/U
4.4 Connection of the Ethernet
cable
The Ethernet cable shield must always be
earthed via the connector. Always use a
shielded RJ45 connector.
The operations described in this chapter
can only be performed in the IP versions of
the product.
An Ethernet cable is included in the multi-polar cable
with the following characteristics: STP (shielded),
Category 5E.
MNVCMVXCAM_1645_EN
Carry out the connections as described in the table
(according to the standard specifications: TIA/EIA-
568-B).

CONNECTION OF THE ETHERNET CABLE

Pin number Cable color
1 Orange-White
2 Orange
3 Green-White
4 Blue
5 Blue-White
6 Green
7 Brown-White
8 Brown
Tab. 2

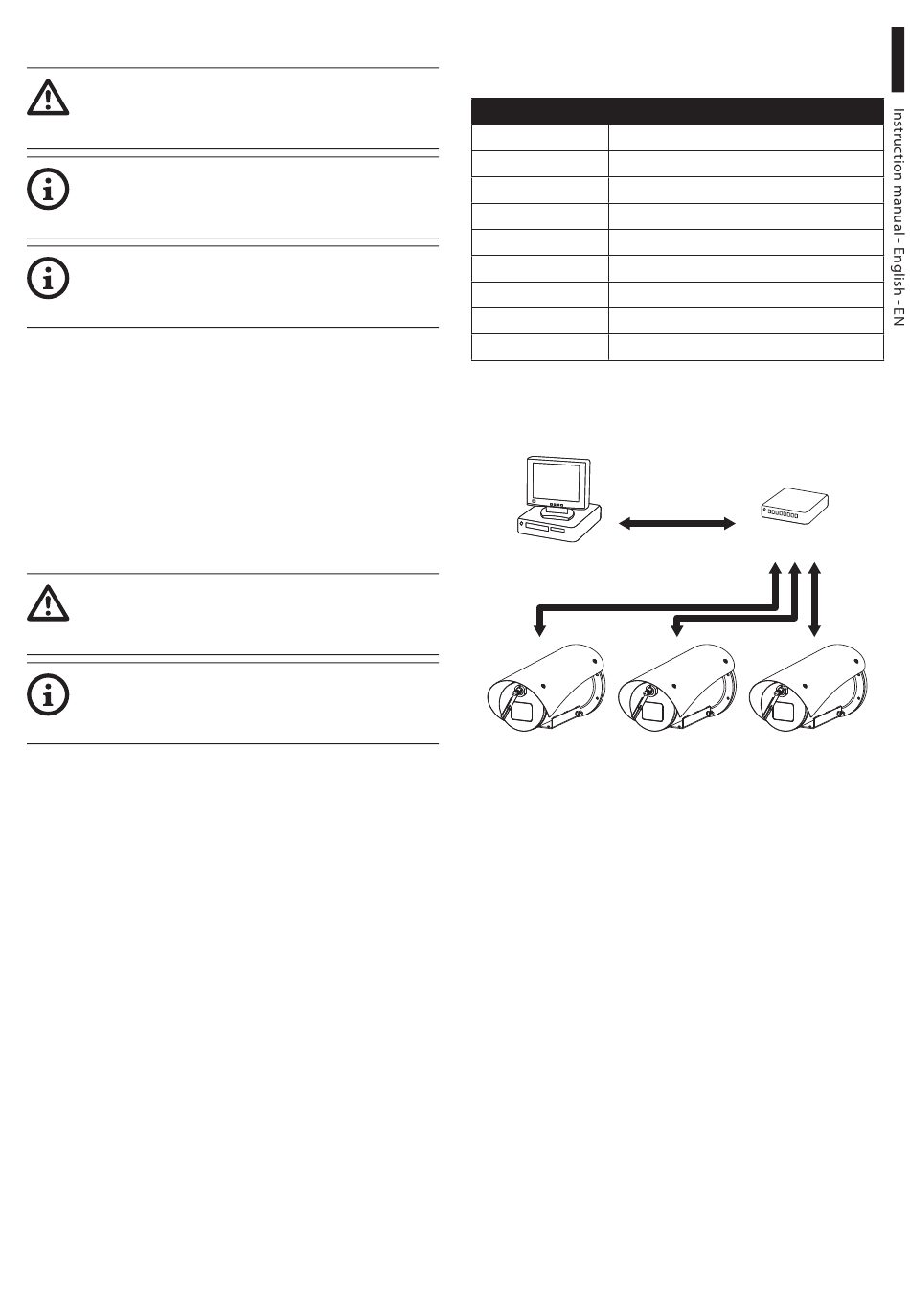

The example below shows a typical installation.
Personal
Computer
Fig. 1
Switch
