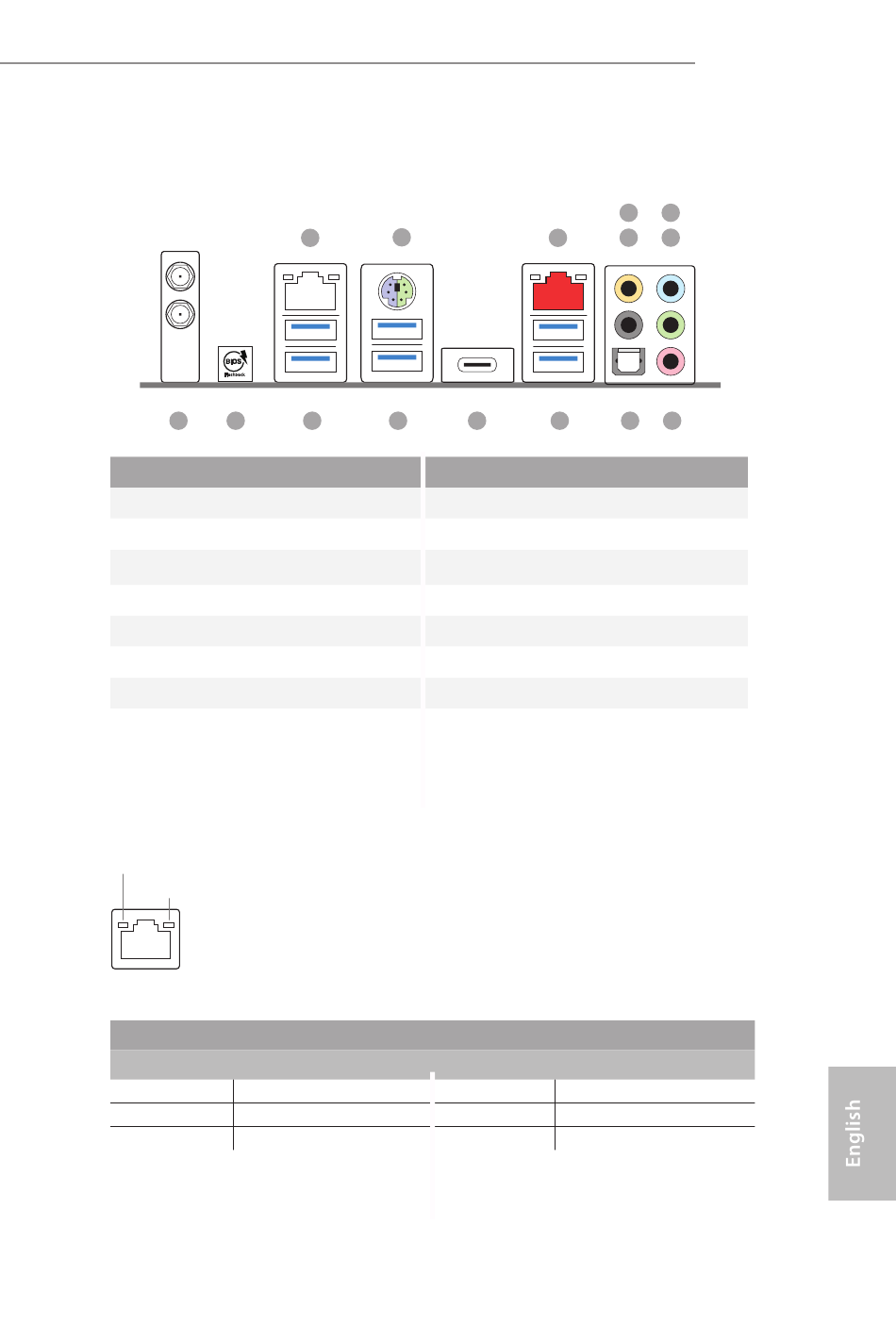

I/O Panel
15 14
No. Description
1 LAN RJ-45 Port (Intel® I211AT)*
2 PS/2 Mouse/Keyboard Port
3 2.5G LAN RJ-45 Port
(Dragon RTL8125AG)**
4 Central (Orange)
5 Rear Speaker (Black)
6 Line In (Light Blue)
7 Front Speaker (Lime)***
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
2
1
13 12 11
No. Description
8 Microphone (Pink)
9 Optical SPDIF Out Port
10 USB 3.2 Gen2 Ports (USB31_1_2)
11 USB 3.2 Gen2x2 Type-C Port
12 USB 3.2 Gen1 Ports (USB3_3_4)
13 USB 3.2 Gen1 Ports (USB3_1_2)****
14 BIOS Flashback Button
15 Antenna Ports (on I/O Panel Shield)
Speed LED
Status
Orange
Orange
Green
TRX40 Taichi
4 6
5 7
3
10 9 8
Description
10Mbps connection
100Mbps connection
1Gbps connection
