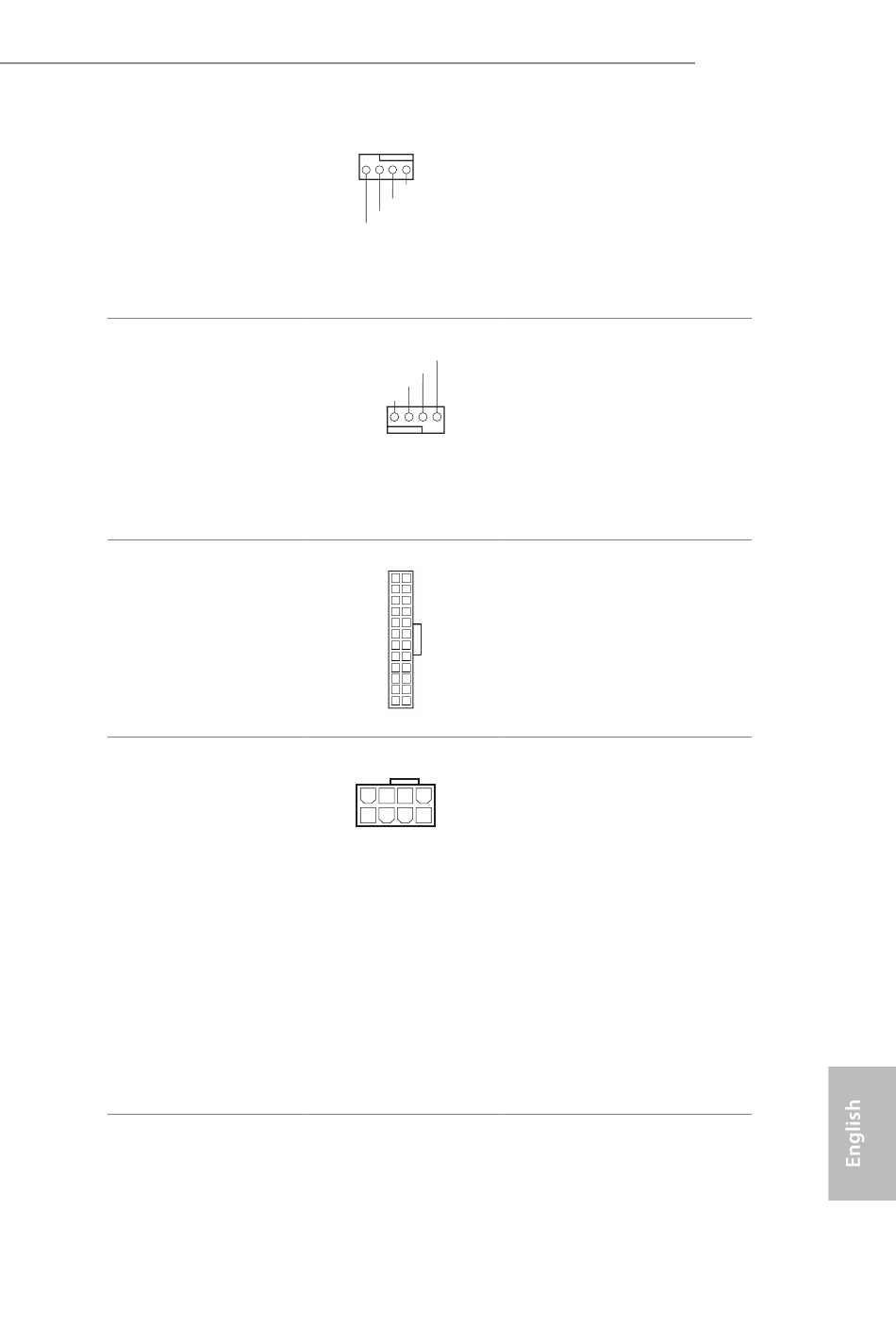

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 7)
CPU Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.1, No. 32)
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 10)
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.1, No. 1)
(8-pin ATX12V2)
(see p.1, No. 6)
This motherboard pro-
4 3 2 1
vides a 4-Pin CPU fan
GND
(Quiet Fan) connector.
FAN_VOLTAGE
CPU_F AN_SPEED
If you plan to connect a
FAN_SPEED_CONTROL
3-Pin CPU fan, please
connect it to Pin 1-3.
This motherboard
FAN_SPEED_CONTROL
CPU_FAN_SPEED
provides a 4-Pin water
FAN_VOLTAGE
GND
cooling CPU fan
connector. If you plan
1 2 3 4
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
This motherboard pro-
12 24
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
1 13
This motherboard
8 5
provides two 8-pin ATX
12V power connectors. To
4 1
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
TRX40 Taichi
