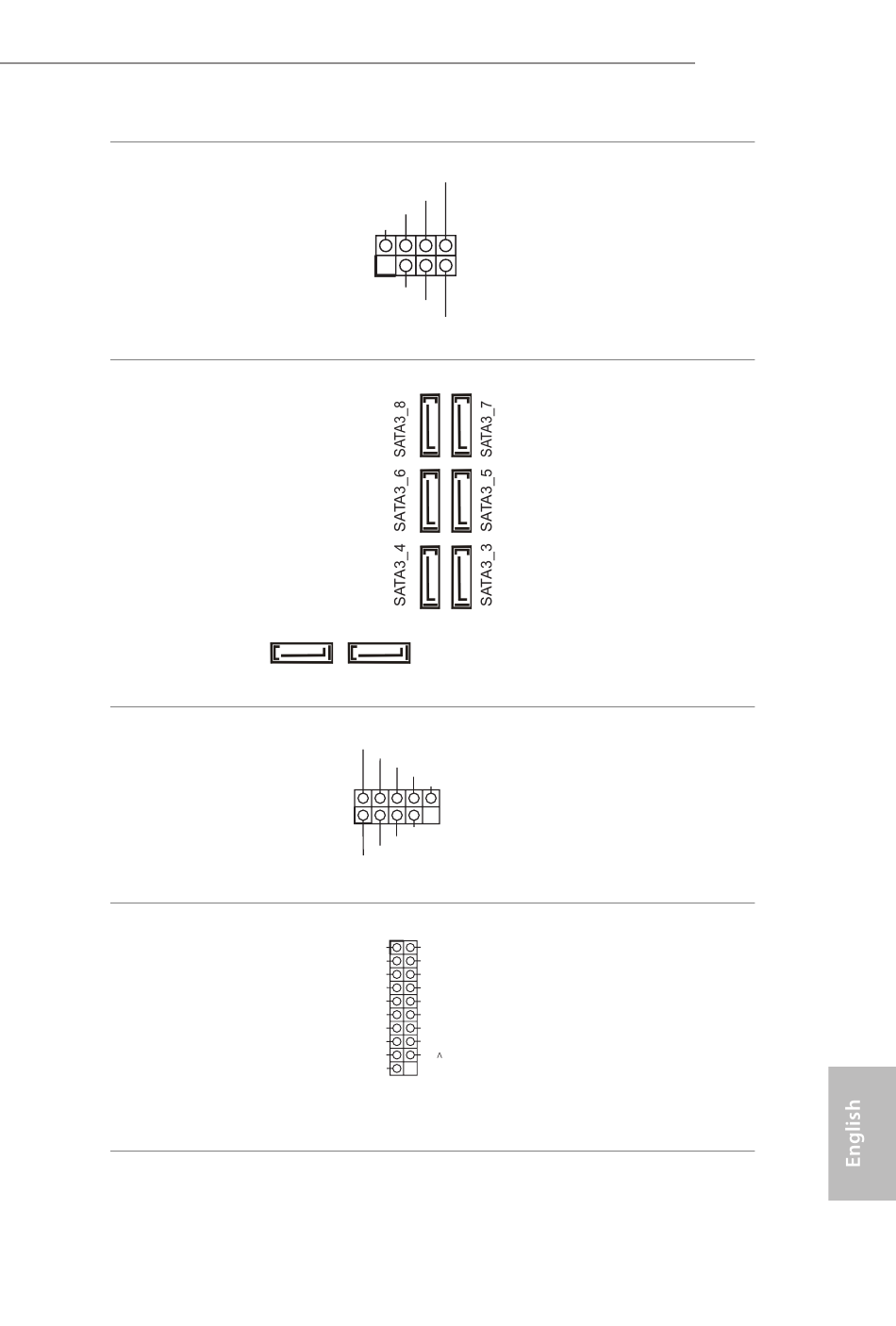

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.1, No. 24)
Serial ATA3 Connectors
(SATA3_1:
see p.7, No. 22)
(SATA3_2:
see p.7, No. 21)
(SATA3_3_4:
see p.1, No. 15)
(SATA3_5_6:
see p.1, No. 14)
(SATA3_7_8:
SATA3_1
see p.1, No. 13)
USB 2.0 Header
(9-pin USB_1_2)
(see p.1, No. 23)
USB 3.2 Gen1 Header
(19-pin USB3_5_6)
(see p.1, No. 16)
(19-pin USB3_7_8)
(see p.1, No. 12)
SPEAKER
DUMMY
DUMMY
+5V
1
PLED+
PLED+
PLED-
SATA3_2
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
1
Dummy IntA_PA_D+
IntA_PB_D+ IntA_PA_D-
IntA_PB_D- GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX- GND
GND IntA_PA_SSRX+
IntA_PB_SSRX+ IntA_PA_SSRX-
IntA_PB_SSRX- bus
Vbus V
Please connect the
chassis power LED and
the chassis speaker to this
header.
These eight SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
There is a header on this
motherboard. This USB
2.0 header can support
two ports.
There are two headers on
this motherboard. Each
USB 3.2 Gen1 header can
support two ports.
