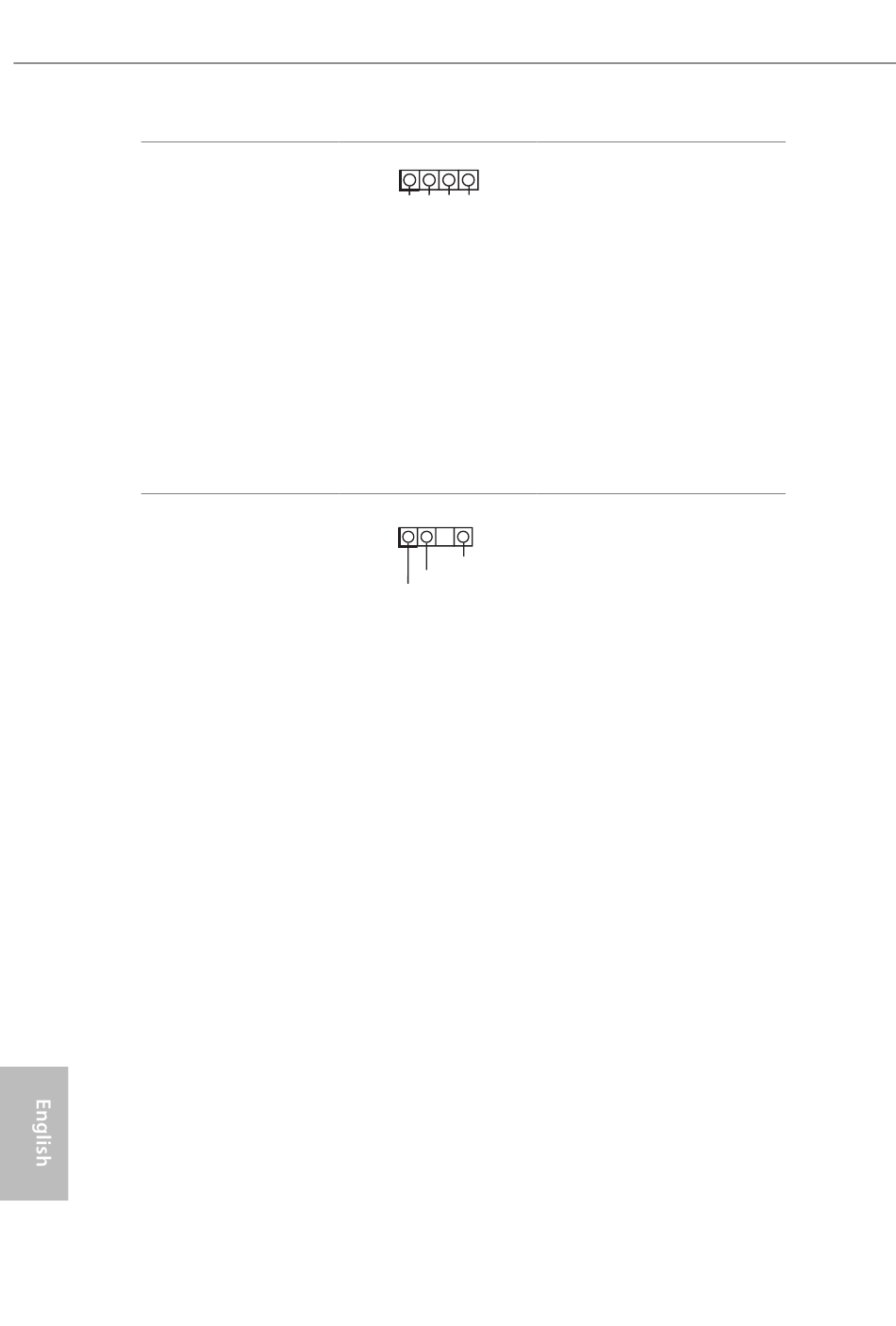

RGB LED Headers
(4-pin RGB_LED1)
(see p.1, No. 9)
(4-pin RGB_LED2)
(see p.1, No. 28)
Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 8)
(3-pin ADDR_LED2)
(see p.1, No. 27)
32
These two RGB headers are used
1
to connect RGB LED
12V G R B
extension cable which allows
users to choose from various LED
lighting effects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 47 for
further instructions on this
header.
These two Addressable LED
1
headers are used to connect
GND
Addressable LED extension cable
DO_ADDR
VOUT
which allows users to choose
from various LED lighting
effects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 48 for
further instructions on this
header.
