Serial Cable Installation
(for 9698978M004 Navigator Controller only)
The supplied serial cable must be installed when the Turbo-V 1K-G
Retrofit or the optional vent valve have to be controlled by means of
a remote computer.
The cable is installed fixing the 9 pin D-type con-nector into the P2
serial connector as shown in the following figure.

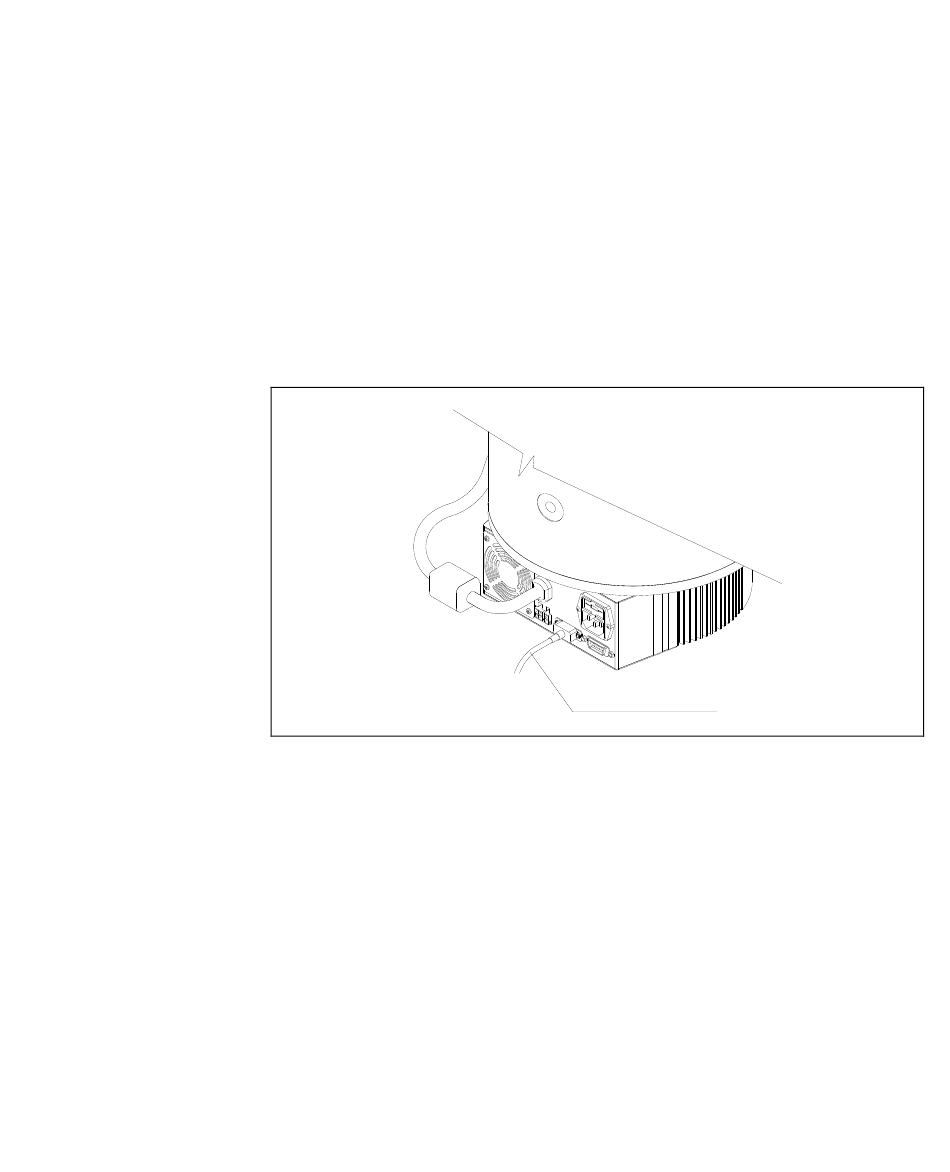

Figure 40

Turbo-V 1K-G Retrofit Navigator Controller Installation

The controller can be mounted on the pump bottom.
To install the controller execute the following procedures.
