Serial Cable Installation (for 9698978M005 Navigator controller only)
Serial Cable Installation (for 9698978M005 Navigator
controller only)
The supplied serial cable must be installed when the Turbo-V 1K-G or
the optional vent valve have to be controlled by means of a remote
computer.

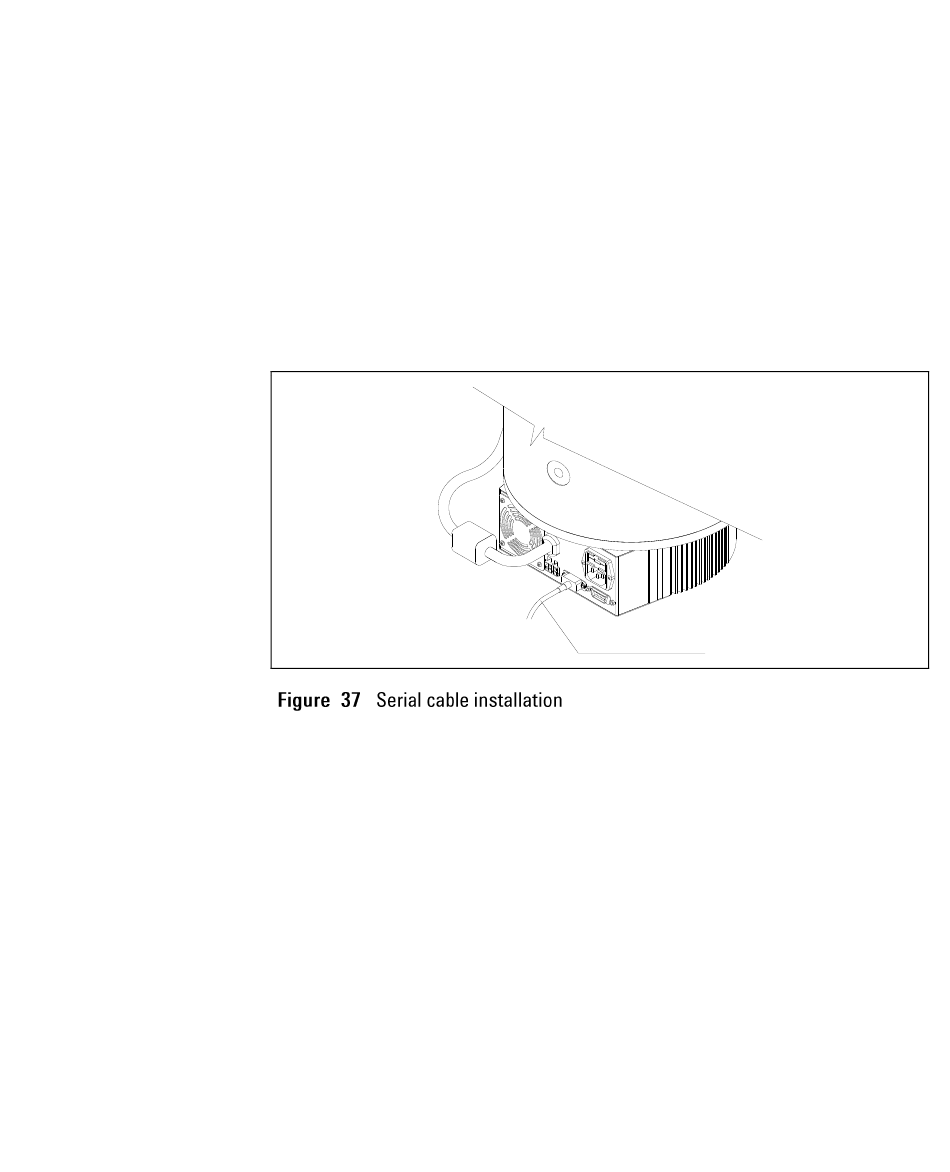

The cable is installed fixing the 9 pin D-type connector into the P2
serial connector as shown in the following figure.
Turbo-V 1K-G User Manual/ 87-901-025-01 (A)
Technical Information
SERIAL CABLE
17
291/304
