Vent Accessories

The vent valve and vent device allow to avoid undesired venting of
the pump during temporary power failure and enables an automatic
vent operation.

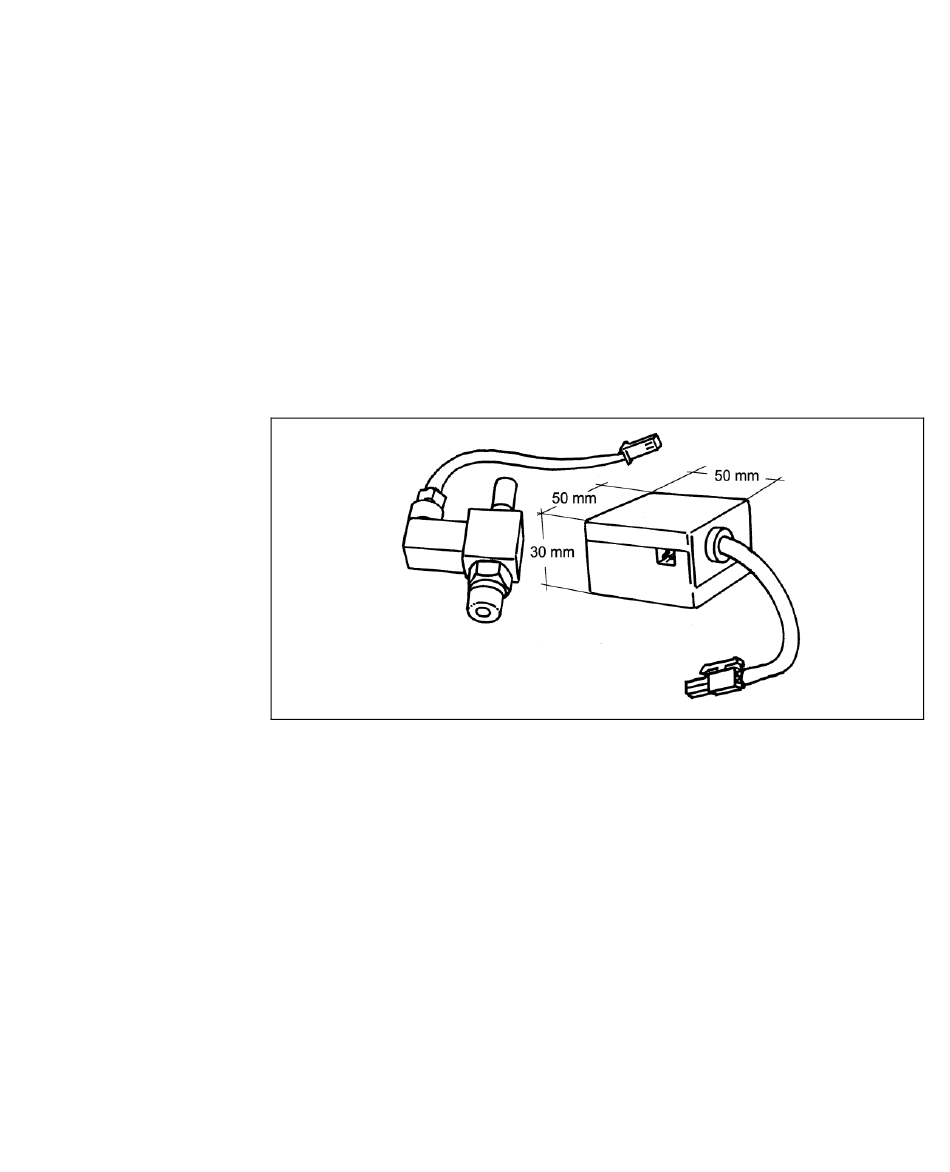

Navigator Controller Compatible
Vent Valve model 9699834
Figure 31
This vent valve waits before opening a minimum time of about 5 sec.
This time can be increased up to about 220 min. by means of a setting
of the Navigator software (optional).
To install the vent valve, unscrew the threaded plug (see figure
below).
