Serial Cable Installation

Serial Cable Installation

The supplied serial cable must be installed when the TV 551/701
Navigator or the optional vent valve have to be controlled by means
of a remote computer.
The cable is installed fixing the 9 pin D-type connector into the P2
serial connector as shown in the following figure.

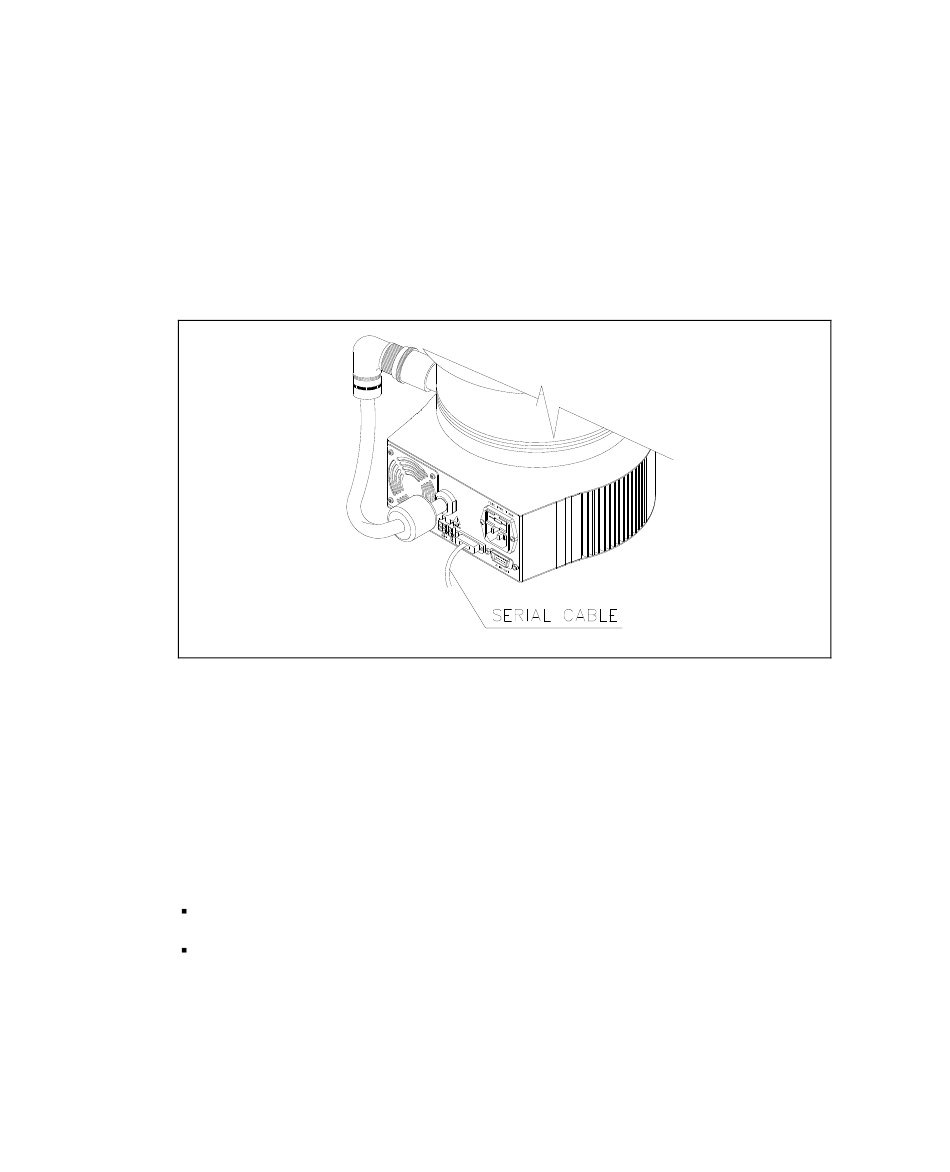

Figure 55

TV 551/701 Controller Installation

The controller can be mounted in two position:
To install the controller execute the following procedures.
284/300
bottom mounting (as per the complete system)
side mounting.
