and then screw the gas purge valve (with a torque of 2.5 Nm) as

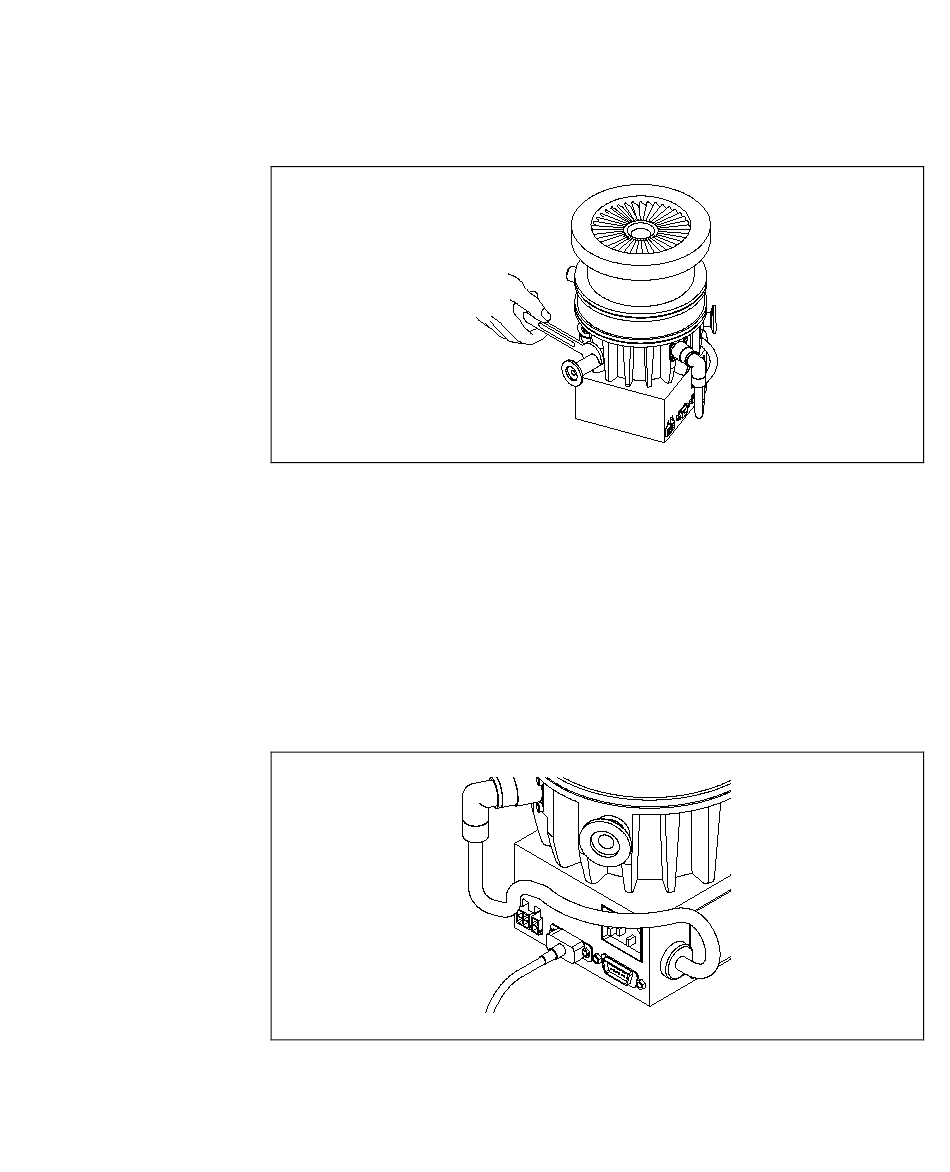

shown in the following figure.
Figure 49

Serial Cable Installation

The supplied serial cable must be installed when the TV 301
Navigator or the optional vent valve have to be controlled by means
of a remote computer.
The cable is installed fixing the 9 pin D-type connector into the P2
serial connector as shown in the following figure.
Figure 50
