How to Connect the Outputs of the Controller

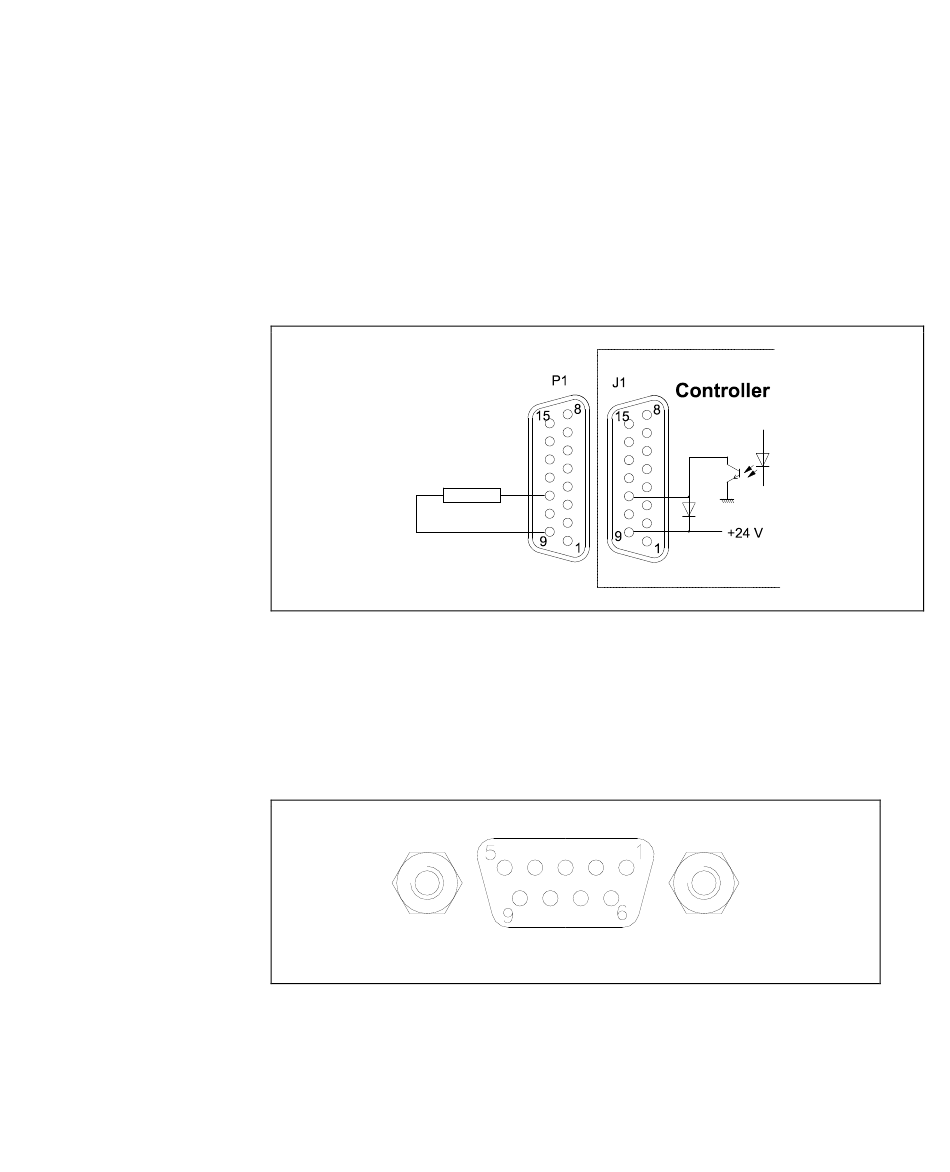

The following figure shows a typical logic output connection (relay
coil) but any other device may be connected e.g. a LED, a computer,
etc., and the related simplified circuit of the controller. The figure
example refers to the programmable set point signal on pins 11 and 9.
Figure 18
P2 – Serial
Figure 19
This is a 9 pin D-type serial input/output connector to control via an
RS 232 or RS 485 connection the Turbo-V 1K-G Retrofit.
Turbo-V 1K-G Retrofit User Manual / 87-900-996-01 (B)
How to Connect the Open-Collector Inputs of the Controller
Typical output connection
9 pin connector
