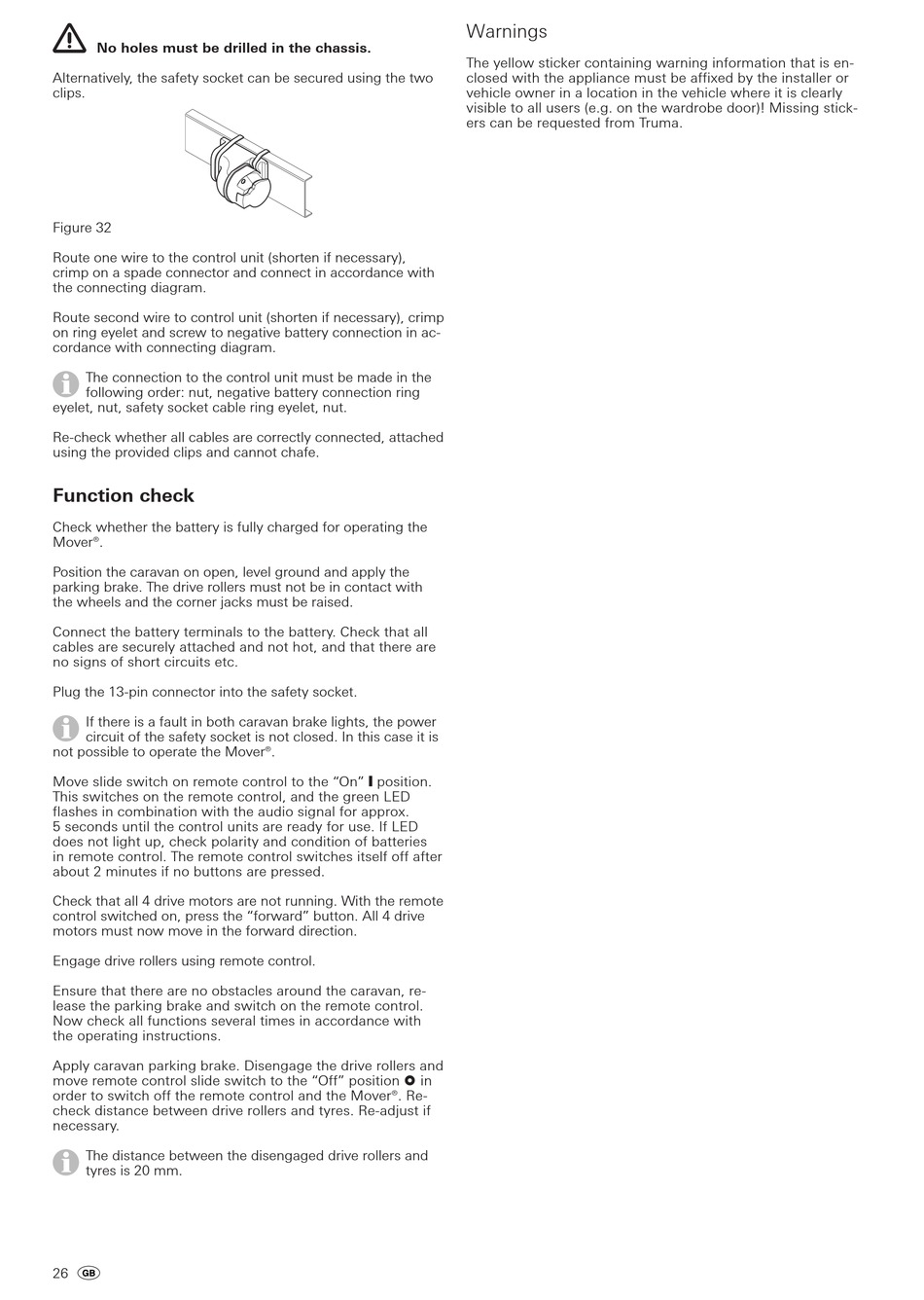

No holes must be drilled in the chassis.
Alternatively, the safety socket can be secured using the two
clips.
Figure 32
Route one wire to the control unit (shorten if necessary),
crimp on a spade connector and connect in accordance with
the connecting diagram.
Route second wire to control unit (shorten if necessary), crimp
on ring eyelet and screw to negative battery connection in ac-
cordance with connecting diagram.
The connection to the control unit must be made in the
following order: nut, negative battery connection ring
eyelet, nut, safety socket cable ring eyelet, nut.
Re-check whether all cables are correctly connected, attached
using the provided clips and cannot chafe.

Function check

Check whether the battery is fully charged for operating the
Mover®.
Position the caravan on open, level ground and apply the
parking brake. The drive rollers must not be in contact with
the wheels and the corner jacks must be raised.
Connect the battery terminals to the battery. Check that all
cables are securely attached and not hot, and that there are
no signs of short circuits etc.
Plug the 13-pin connector into the safety socket.
If there is a fault in both caravan brake lights, the power
circuit of the safety socket is not closed. In this case it is
not possible to operate the Mover®.
Move slide switch on remote control to the "On"
This switches on the remote control, and the green LED
flashes in combination with the audio signal for approx.
5 seconds until the control units are ready for use. If LED
does not light up, check polarity and condition of batteries
in remote control. The remote control switches itself off after
about 2 minutes if no buttons are pressed.
Check that all 4 drive motors are not running. With the remote
control switched on, press the "forward" button. All 4 drive
motors must now move in the forward direction.
Engage drive rollers using remote control.
Ensure that there are no obstacles around the caravan, re-
lease the parking brake and switch on the remote control.
Now check all functions several times in accordance with
the operating instructions.
Apply caravan parking brake. Disengage the drive rollers and
move remote control slide switch to the "Off" position  in
order to switch off the remote control and the Mover®. Re-
check distance between drive rollers and tyres. Re-adjust if
necessary.
The distance between the disengaged drive rollers and
tyres is 20 mm.
26

Warnings

The yellow sticker containing warning information that is en-
closed with the appliance must be affixed by the installer or
vehicle owner in a location in the vehicle where it is clearly
visible to all users (e.g. on the wardrobe door)! Missing stick-
ers can be requested from Truma.
❙
position.
