AVENTICS | CD01-PI | R412012449–BAL–001–AD
5.1.5 Pressure regulator for vertical stacking
assembly
If you need a lower working pressure for a directional valve than
the operating pressure supplied to the VS, a pressure regulator
lets you regulate the pressure as required.
Channels 2 and 4 have the same working pressure level via
a P-regulator, as the pressure is regulated before the valve
in channel 1 (see fig. 6).
34
35

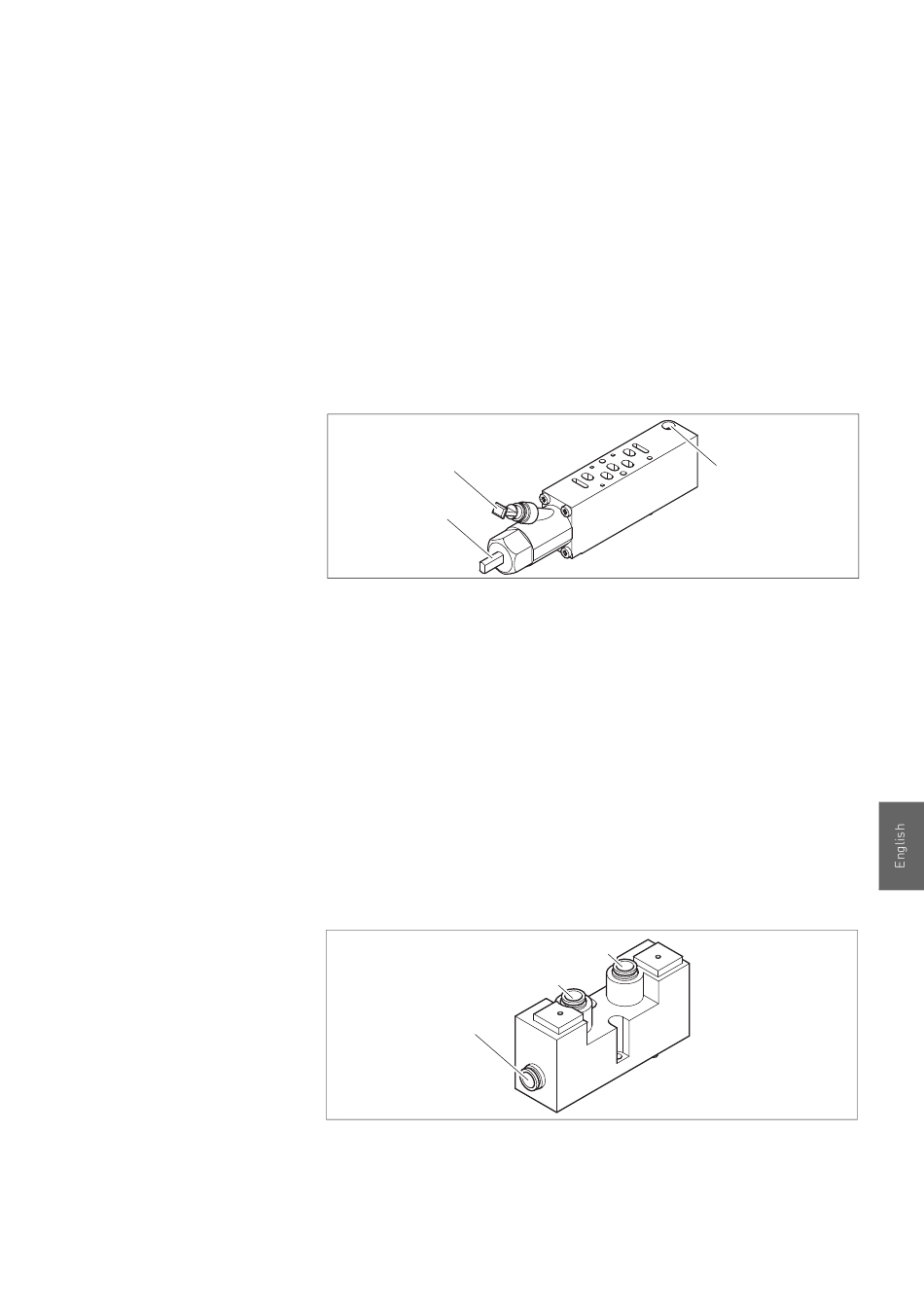

Fig. 6: P-regulator
34 Connection for pressure gauge
35 Setting knob
5.1.6

Supply/exhaust module

You can use additional supply/exhaust modules for larger valve
systems or to build up pressure zones. The modules can be
mounted on the base plates anywhere on the VS (See section
10.6 "Separating into pressure zones" on page 91 for setting up
pressure zones).
37
Fig. 7: Supply/exhaust module
37 Connection "Supply pressure"
38 Connection "Exhaust"
Device Description
36 Electrical connection
39
38
39 Connection
"Exhaust"
67
36
