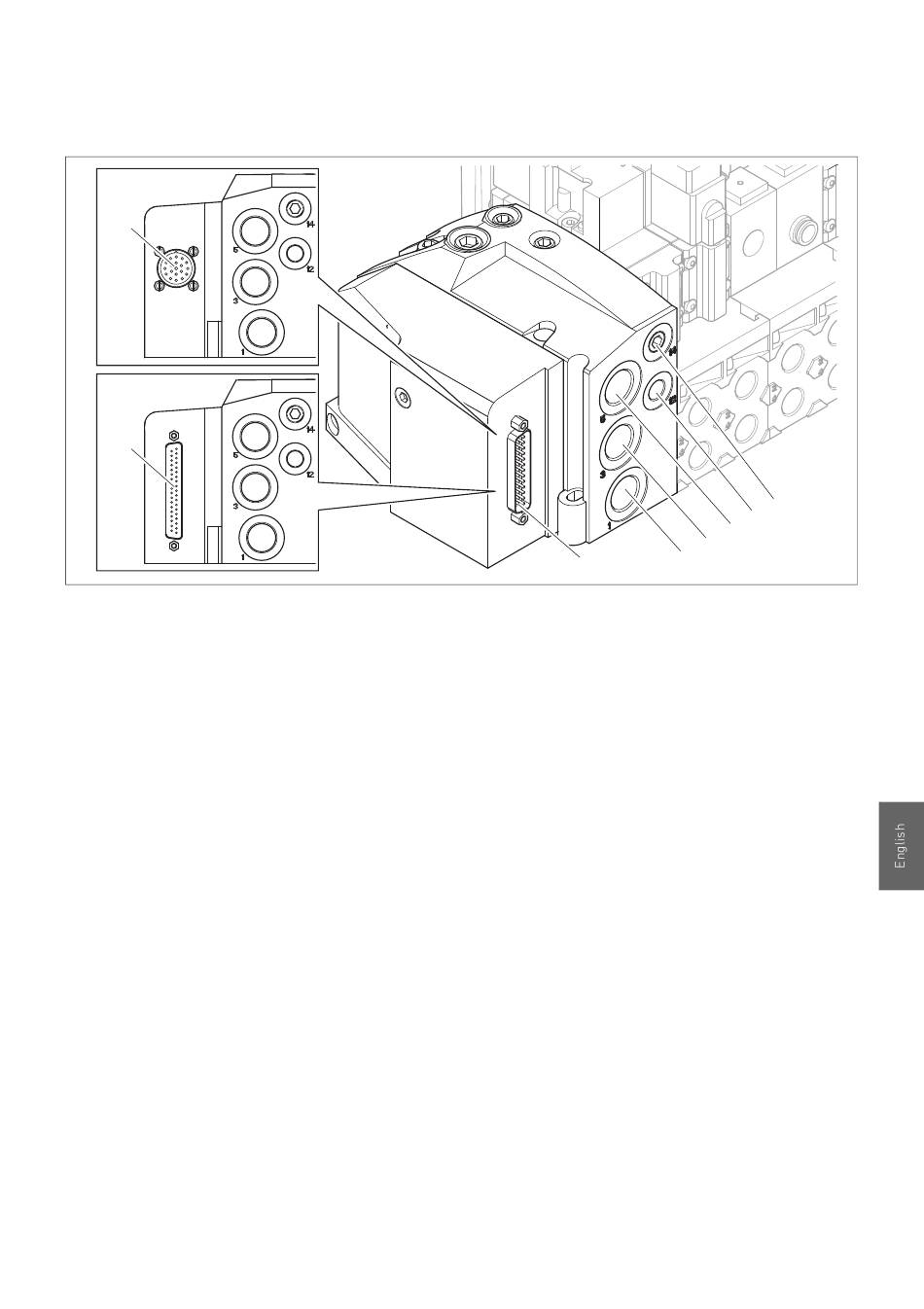

Fig. 2: Left end plate with plug box with pneumatic and electrical connections
13 Multipole plug box (25 pin)
14 Multipole plug box (37 pin)
15 Multipole plug box, 19 pin
(M23, to CNOMO standard E03.62.530.N.)
16 Connection 1 "Supply pressure"
AVENTICS | CD01-PI | R412012449–BAL–001–AD
17 Connection (3) "Exhaust"
18 Connection (5) "Exhaust"
19 Connection (12) "Pilot air collective exhaust"
20 Connection (14) "External pilot air"
