If you are using base plates for single solenoid values and base
plates for double solenoid valves in one VS, you can calculate
the max. number of coils as follows:
number of coils for all single solenoid valves
+ number of coils for all double solenoid valves
≤ max. number of coils from table 7
10.5.2

Removing the end plate

You only need to remove the right end plate if you want to add
an end plate in the last position.

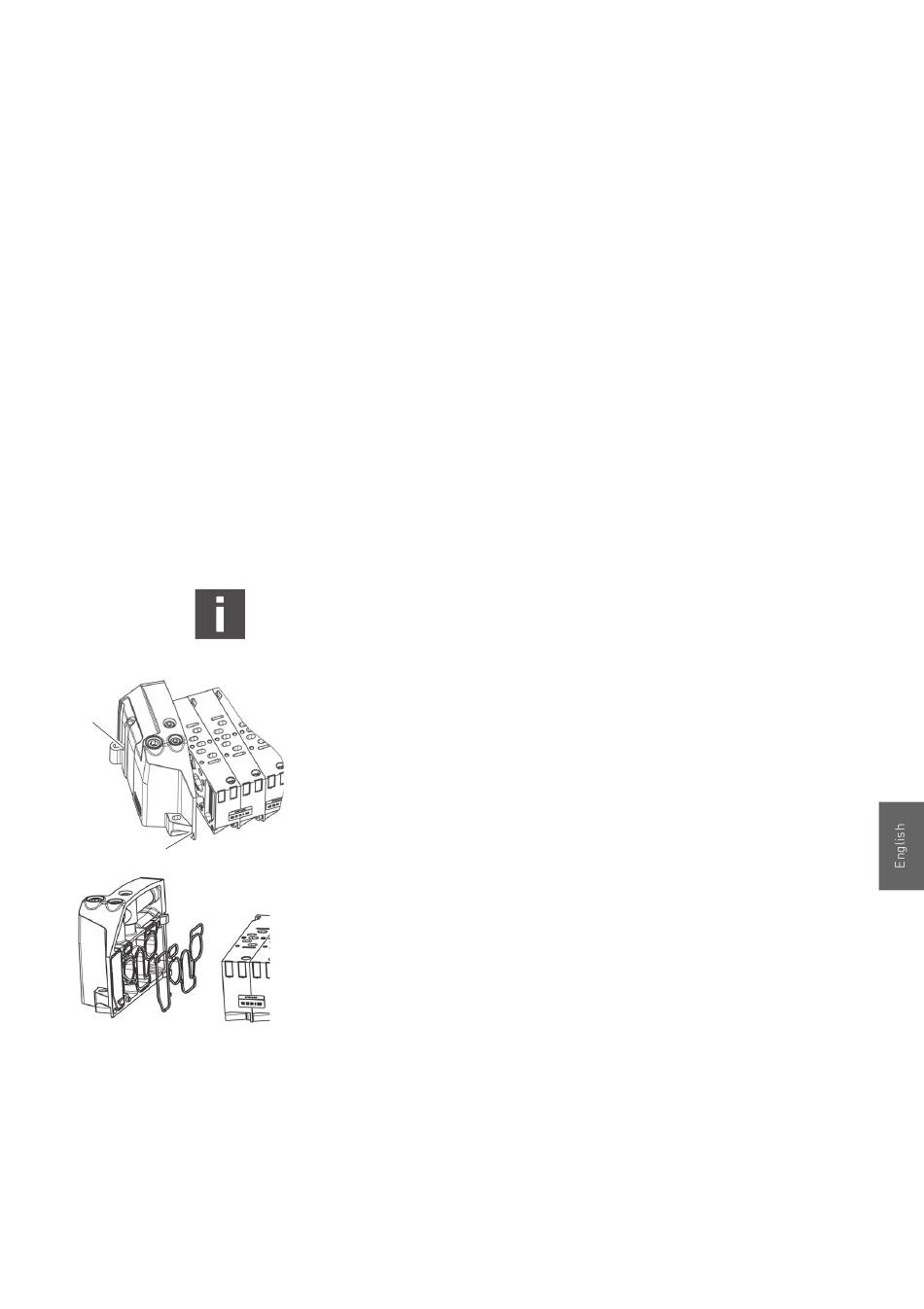

1. Release both screws (57) and (58) with which the right end
plate is fastened to the last component.
The tightening torque of the two screws (57) and (58)
is 5 Nm.
2. Flip the end plate to the side.
3. Remove the end plate with inserted seal.
