Extension and Conversion

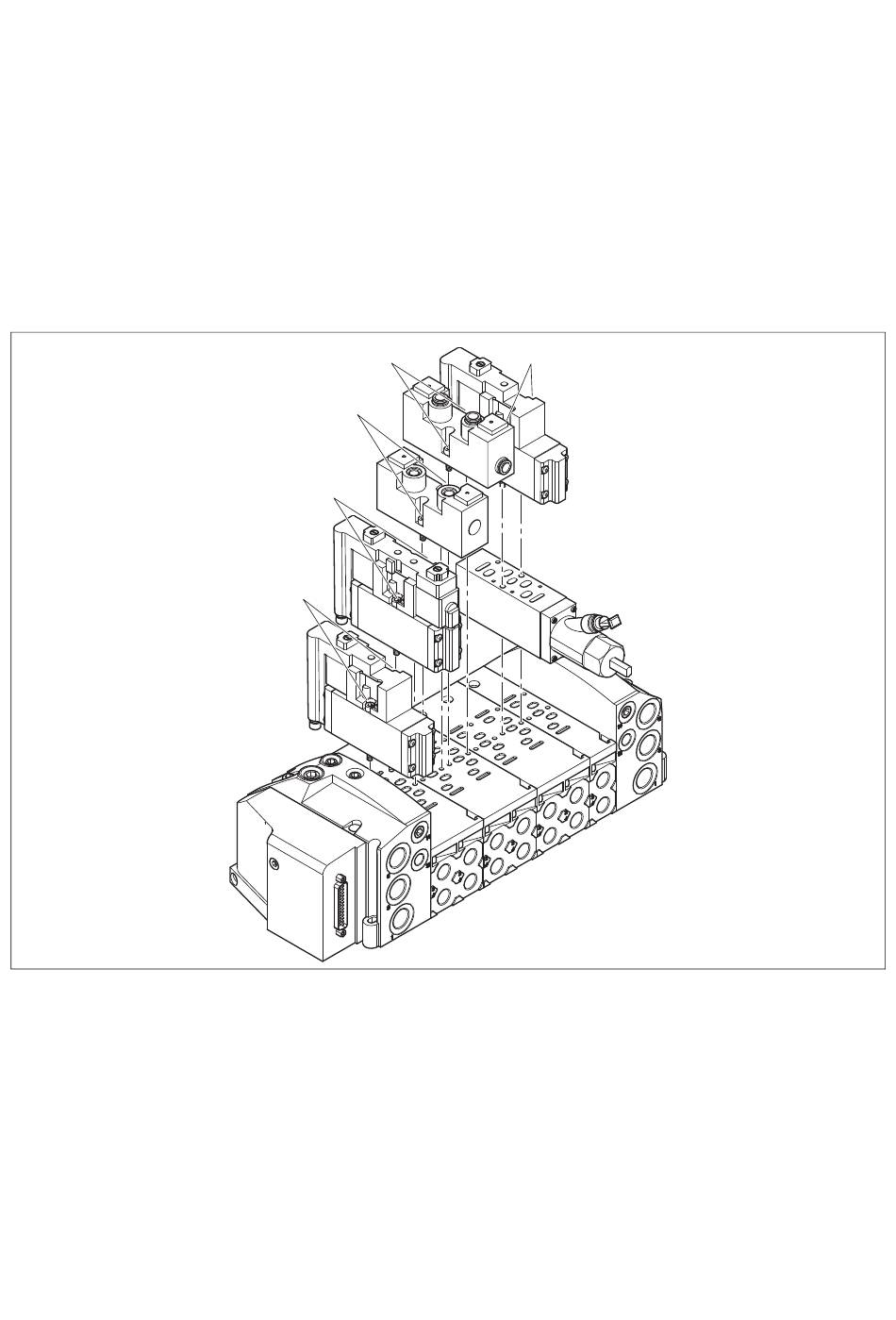

Fig. 13: Mounting components on base plates
55 Mounting screws

10.4 Exchanging individual components

The following step-by-step instructions apply to components
that are directly mounted on the base plate.
In the case of vertically stacked components, which are
separately screwed to the base plate, these steps must be
performed anew for each component.
55
55
55
55
1. Also follow the component instructions.
2. Release the two mounting screws (55).
3. Pull off the components from the base plate.
55
