4. Preset Picture Size and Position Adjustment
Signal : No. 3 (VGA 480),
No. 12 (VESA 640*480@85Hz),
No. 15 (VESA 800*600@85Hz),
No. 20 (VESA 1024*768@85Hz)
Reverse cross hatch pattern
(1) Receive signal 3.
(2) Open Menu (F), TAG 2 " LEFT / RIGHT ", " DOWN / UP ", " NARROW / WIDE", " SHORT / TALL "
and adjust the picture size and position as listed below by
Picture size
Picture Position
(3) Close menu.
(4) Receive the next signal and repeat steps (1) to (3).
Note : Before receiving the next signal, always push "EXIT" SW to store adjustments data.
(5)Manual adjustment :
Auto adjustment :
Notice : For signal 1 and 7, adjust the vertical size to maximum.
Signals : No. 1 VGA 350
No. 5 VESA 800*600@60Hz
No. 7 VESA 350@85Hz
No. 9 VESA 640*480@75Hz
No. 11 VESA 800*600@75Hz
No. 16 VESA 1024*768@70Hz
No. 18 VESA 1280*1024@60Hz
No. 101 , 103 , 105
H : 315±6 mm
V : 236±6 mm
H : | XLeft - XRight | ≦ 2.0 mm
V : | XTop - XBottom | ≦ 2.0 mm
X
Left

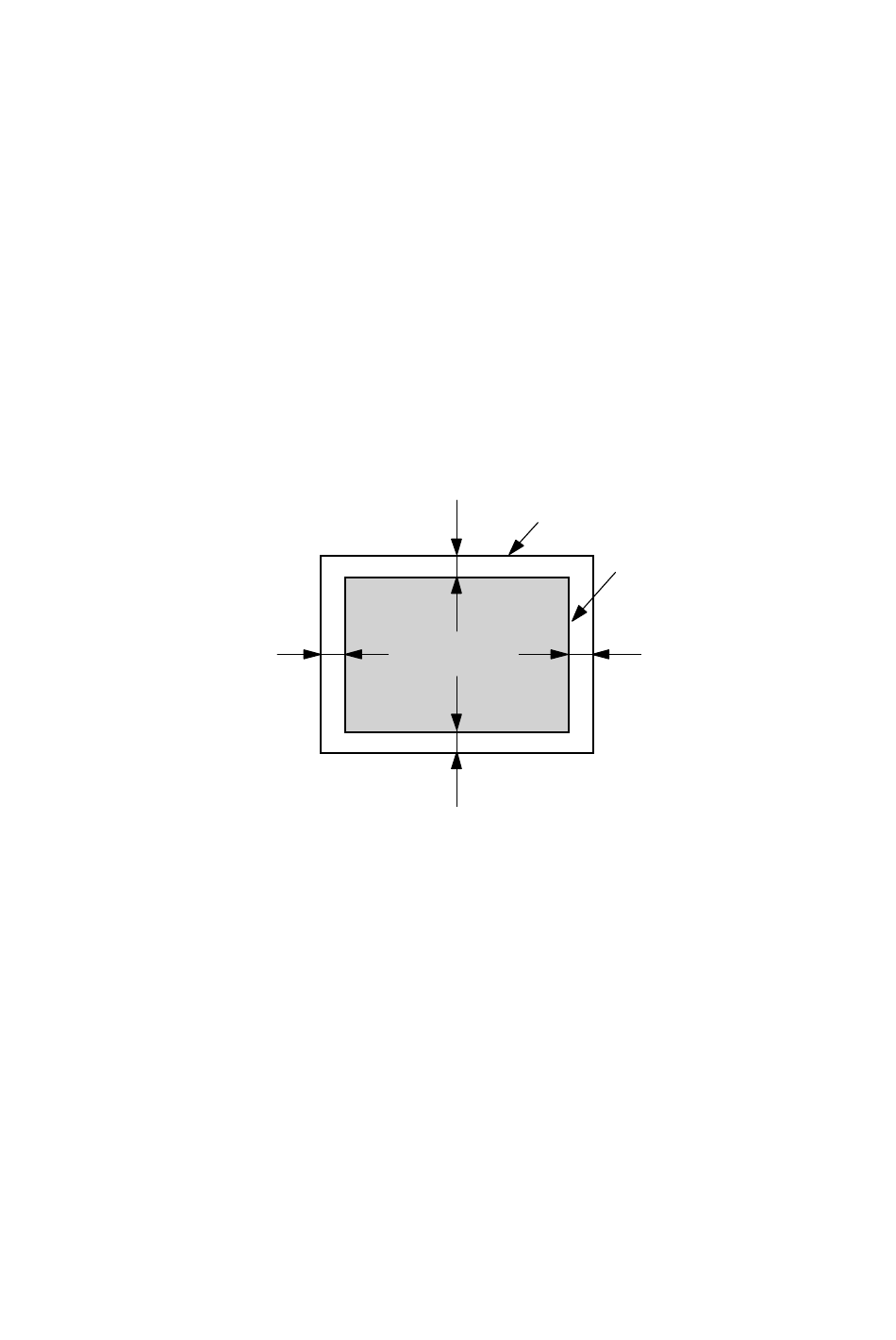

Fig 7-1 Picture Position
Receive the signals below and repeat steps (2) through (3).
For the signals below, picture size and position are calculated from above
adjustment data and data are written into EEPROM.
X Bezel
Top
X
Bottom
No. 2 VGA 400
No. 6 MAC 640*480
No. 8 VESA 400@85Hz
No. 10 XGA
No. 14 MAC 832*624
No. 17 VESA 1024*768@75Hz
