NEC MultiSync FE700 Serviceanleitung Seite 132

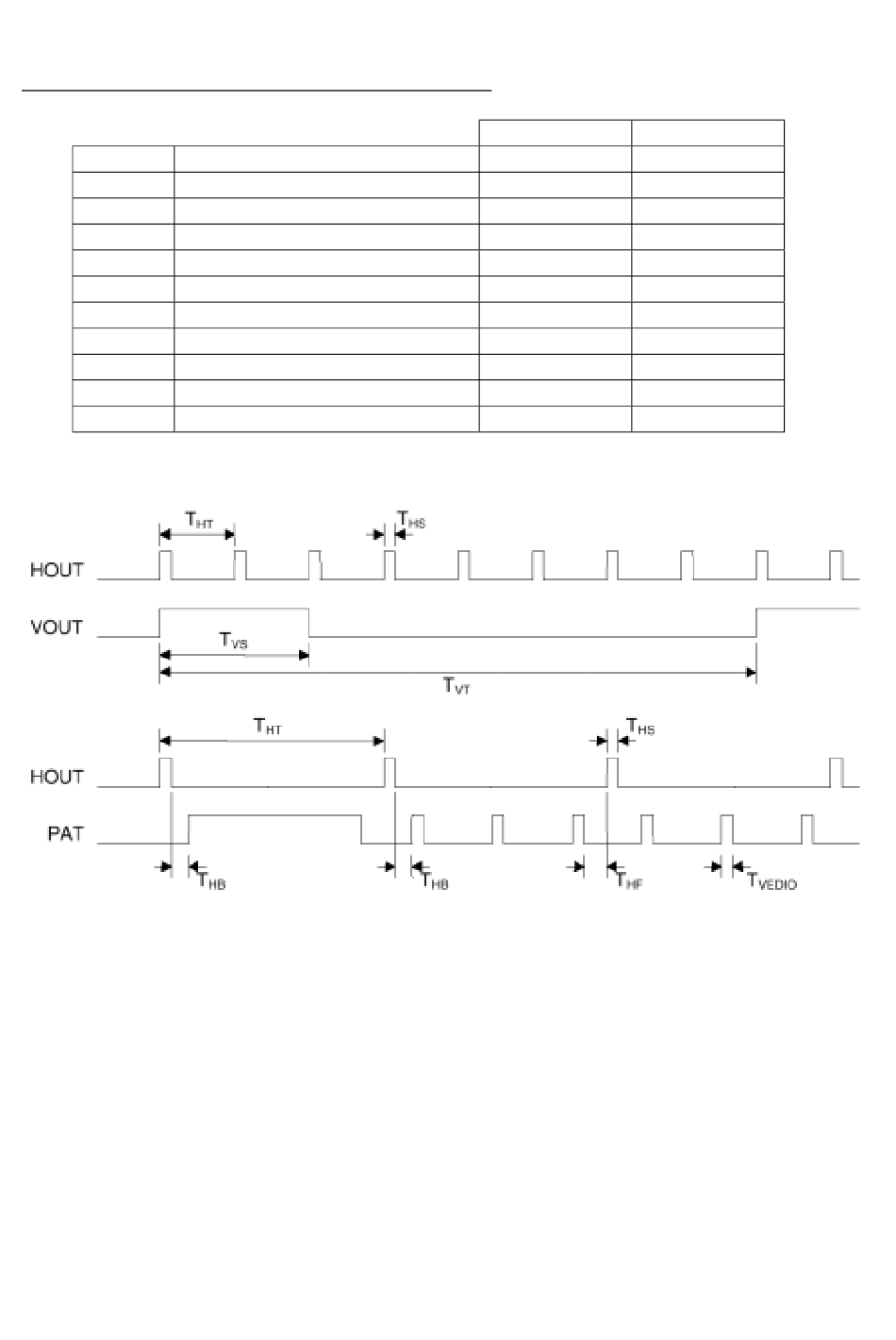

Free-running sync signal and Self-test pattern
F Hor frequency
H
F Ver frequency
V
T Hor total time
HT
T Ver total time
VT
T H sync time
HS
T H Back porch + H Left border
HB
T H Front porch + H Right border
HF
T V sync time
VS
T V Back porch + V Top border
VB
T V Front porch + V Bottom border
VF
T Video pulse width
VIDEO
Free-running
48.000KHz
72.072Hz
20.833us
13.875ms
2.417us
1.417us
1.125us
6 x THT
23 x THT
38 x THT
41.67us
8 - 13
Self-test
31.496KHz
59.993Hz
31.75us
16.669ms
3.833us
2 us
0.708us
2 x T
HT
33 X T
HT
11 x T
HT
41.67ns
