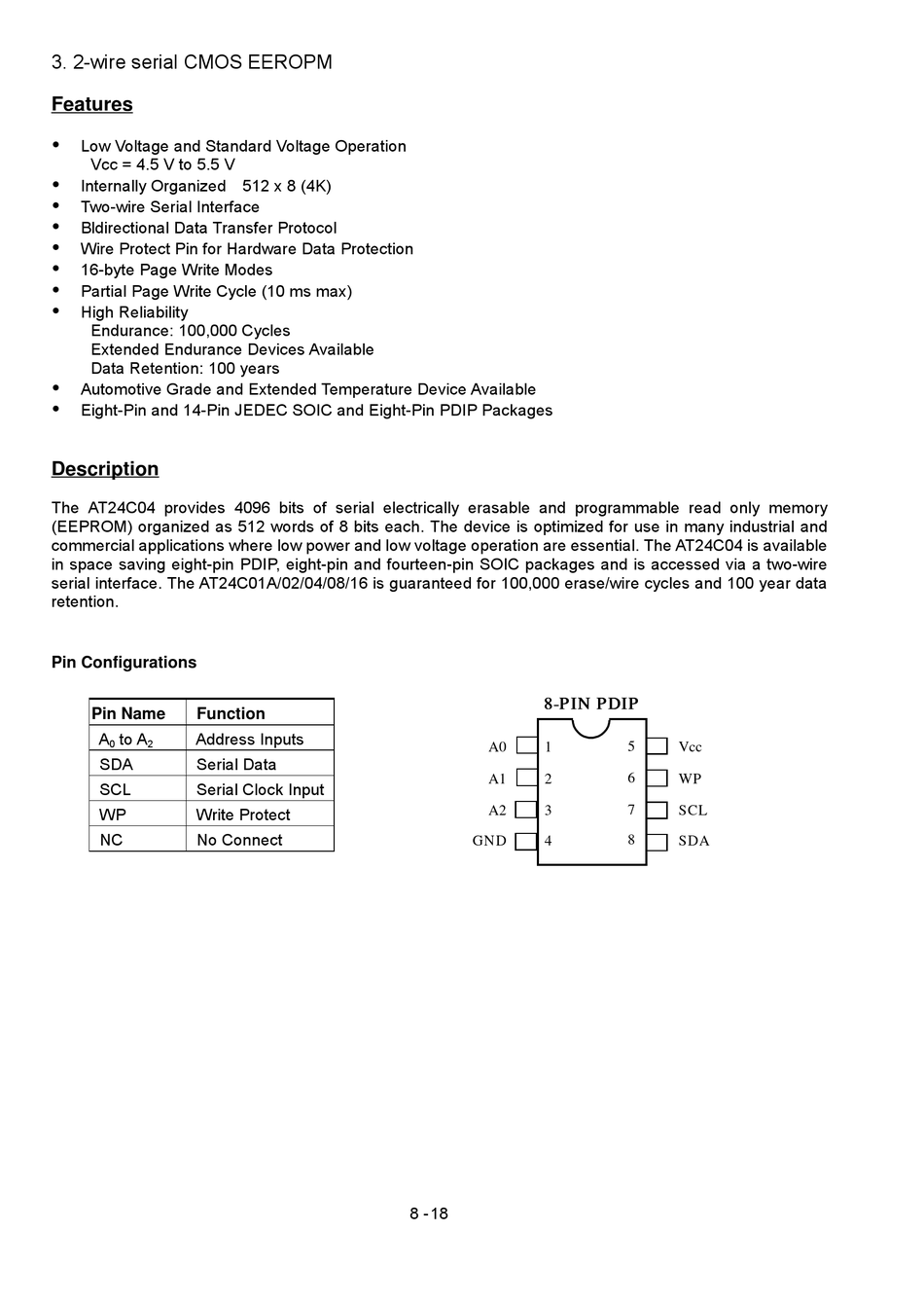

3. 2-wire serial CMOS EEROPM
Features
Low Voltage and Standard Voltage Operation
Vcc = 4.5 V to 5.5 V
Internally Organized 512 x 8 (4K)
Two-wire Serial Interface
Bldirectional Data Transfer Protocol
Wire Protect Pin for Hardware Data Protection
16-byte Page Write Modes
Partial Page Write Cycle (10 ms max)
High Reliability
Endurance: 100,000 Cycles
Extended Endurance Devices Available
Data Retention: 100 years
Automotive Grade and Extended Temperature Device Available
Eight-Pin and 14-Pin JEDEC SOIC and Eight-Pin PDIP Packages
Description
The AT24C04 provides 4096 bits of serial electrically erasable and programmable read only memory
(EEPROM) organized as 512 words of 8 bits each. The device is optimized for use in many industrial and
commercial applications where low power and low voltage operation are essential. The AT24C04 is available
in space saving eight-pin PDIP, eight-pin and fourteen-pin SOIC packages and is accessed via a two-wire
serial interface. The AT24C01A/02/04/08/16 is guaranteed for 100,000 erase/wire cycles and 100 year data
retention.
Pin Configurations
Pin Name Function
A to A Address Inputs
0 2
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
NC No Connect
8-PIN PDIP 8-PIN PDIP
8-PIN PDIP 8-PIN PDIP
A0 1
A1 2
A2 3
GND 4
8 - 18
5
Vcc
6
WP
7
SCL
8
SDA
