INSPECTION
1. Inspection of PLUG & PLAY communication and OSM "MONITOR
INFORMATION" for model name/ serial number
1-1. A construction of System

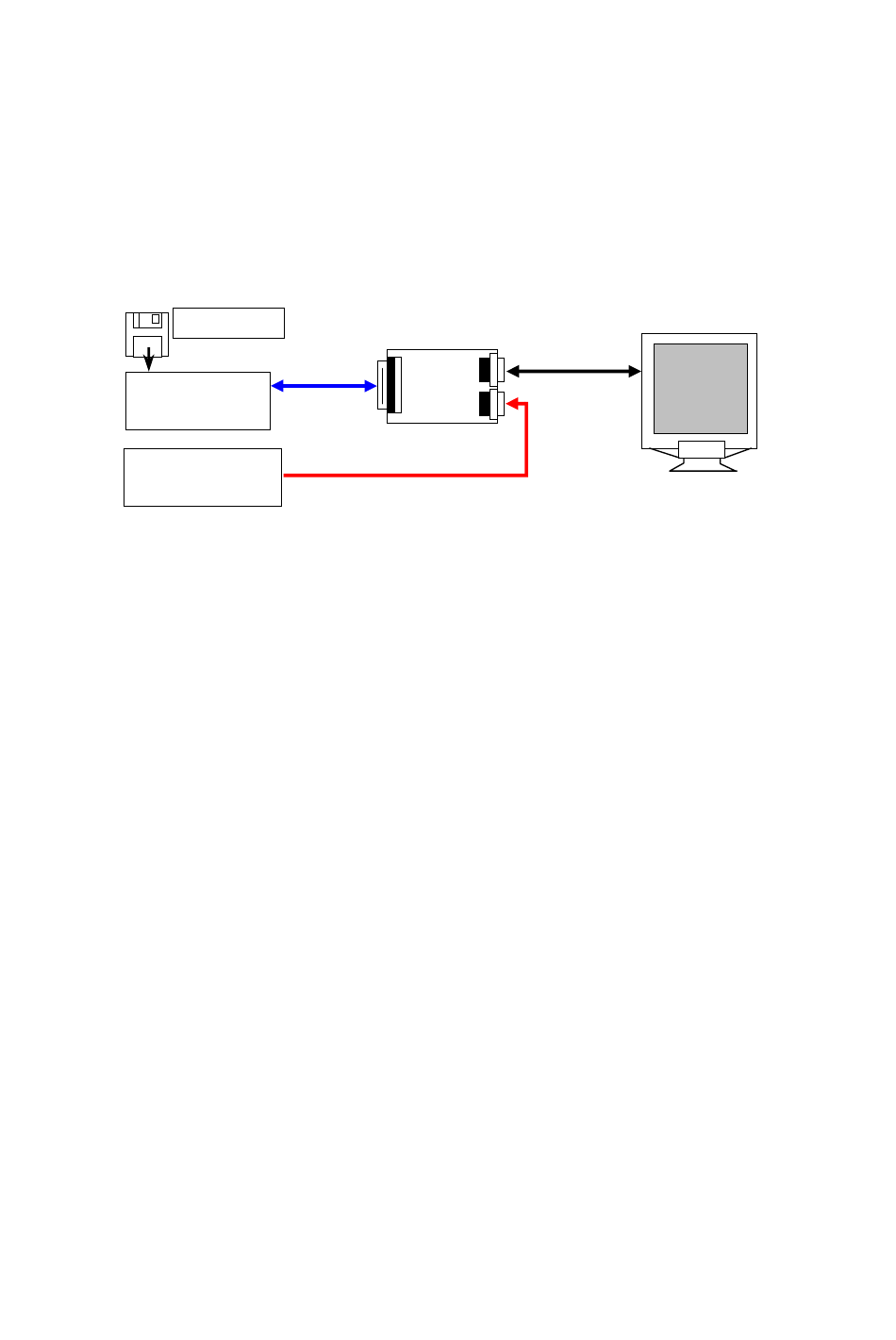

This system should be connected as shown below.
Program Disk
Part No. 599910529
DESKTOP/NOTE
PC
Signal Generator
1-2. Input signal
Horizontal sync frequency: Not specified.
Vertical sync frequency: Not specified.
1-3. Programs required
CN8701.EXE
FE700VE.BAT
FE700VE.TXT
1-4. Inspection procedures
a. Copy the above-mentioned programs in an adequate directory.
b. Set up the MO-DOS mode. (DOS Prompt of Windows95/98 is also acceptable.)
c. Execute the FE700VE.BAT from the command line.
d. Check the serial number of the set and enter an input of the following code from the
keyboard.
*08109420 Serial Number* (*+Model Code + 3 Spaces + Serial No. +*)
Example: *08109420...0X12345QA*
e. Press the Enter key. Then, the EDID data, OSM model name, and the serial number
begin to be written in.
Part No.599910508
Printer Cable
EDID JIG
(NPG)
Signal Cable
6- 1
Signal Cable
Monitor
