1. Front bagger tube
2.
Lower bagger tube
3.
1/4 x 50,8mm Cardage
Bolts
4.
1/4 Lock nut
1.
2.
3.
4.
5.
6.
7.
8.
5----... i
2
Front bagger tube
lr
_t
t/4 x 50,8mm Carriage
Bolts
4
1/4 Lock nut
Vinyl Binding
Bump handle tube
6MM (1/4") - 9MM (3/8")
Clevis pin
Retainer spring
Cap
1
3
1. Top Surfaces Even
2.
Horizontal Adjustment Bracket
3.
Vertical Adjustment Bracket

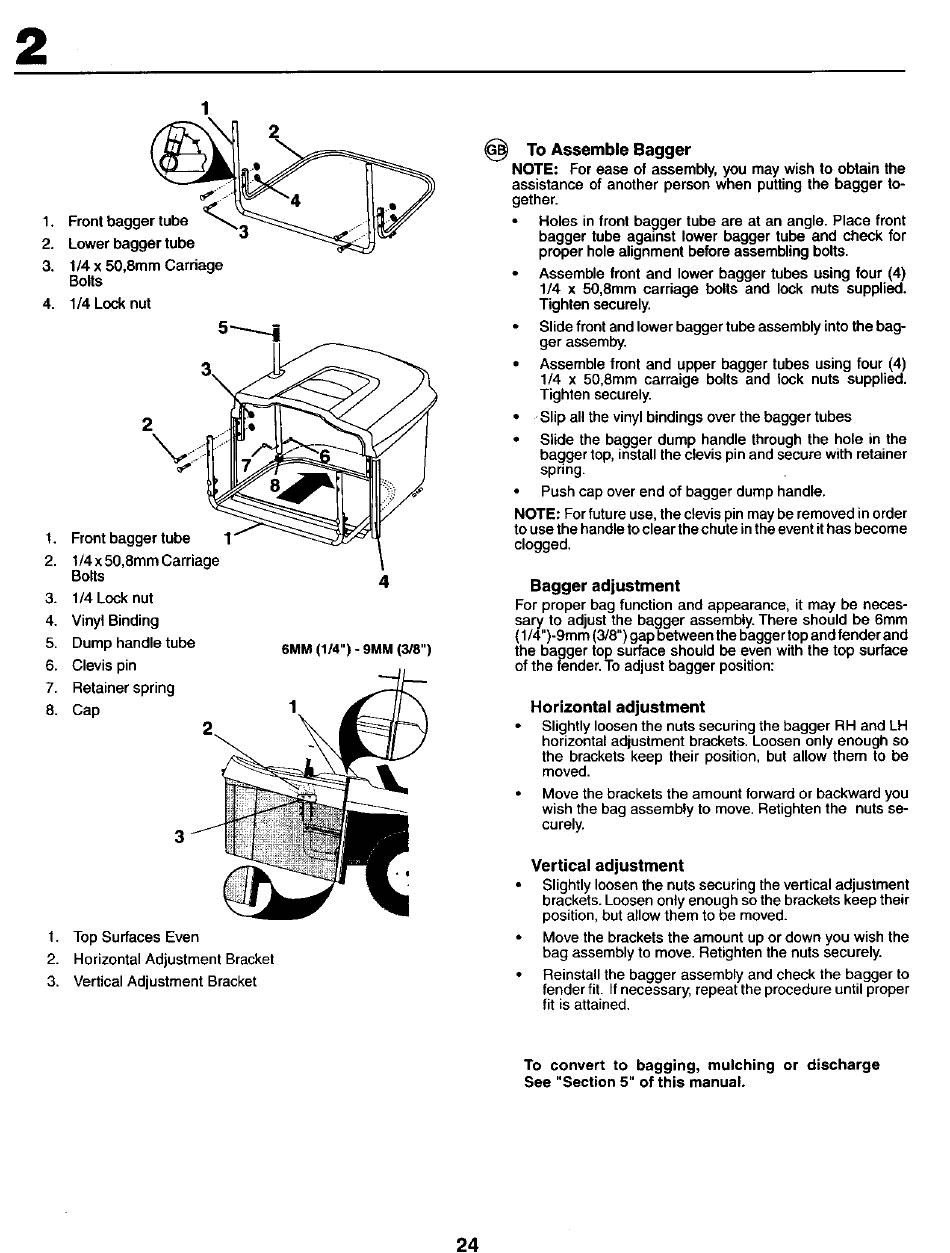

To Assemble
Bagger
NOTE:
For ease of assembly, you may wish to obtain the
assistance of another person when putting the bagger to-
gether.
Holes in front bagger tube are at an angle. Place front
bagger tube against lower bagger tube and check for
proper hole alignment before assembling bolts.
Assemble front and lower bagger tubes using four (4)
1/4 x 50,8ram carriage bolts and lock nuts supplied.
Tighten securely.
Slide front and lower bagger tube assembly into the bag-
ger assemby.
•
Assemble front and upper bagger tubes using four (4)
1/4 x 50,8ram carraige bolts and lock nuts supplied,
Tighten securely.
•
-Slip all the vinyl bindings over the bagger tubes
•
Slide the bagger dump handle through the hole in the
bagger top, install the clevis pin and secure with retainer
spring.
Push cap over end of bagger dump handle.
NOTE: For future use, the clevis pin may be removed in order
to use the handle to clear the chute in the event it has become
clogged.
Bagger
adjustment
For proper bag function and appearance, it may be neces-
sary to adjust the bagger assembly. There should be 6mm
( 1/4")-9mm (3/8") gap between the begger top and fender and
the bagger top surface should be even with the top surface
of the fender. To adjust bagger position:
Horizontal
adjustment
Slightly loosen the nuts securing the bagger RH and LH
horizontal adjustment brackets. Loosen only enough so
the brackets keep their position, but allow them to be
moved.
Move the brackets the amount forward or backward you
wish the bag assembly to move. Retighten the nuts se-
curely.
Vertical
adjustment
Slightly loosen the nuts securing the vertical adjustment
brackets. Loosen only enough so the brackets keep their
position, but allow them to be moved.
Move the brackets the amount up or down you wish the
bag assembly to move. Retighten the nuts securely.
Reinstall the bagger assembly and check the bagger to
fender fit. If necessary, repeat the procedure until proper
fit is attained.
To convert
to bagging,
mulching
or discharge
See "Section
5" of this manual.
