2

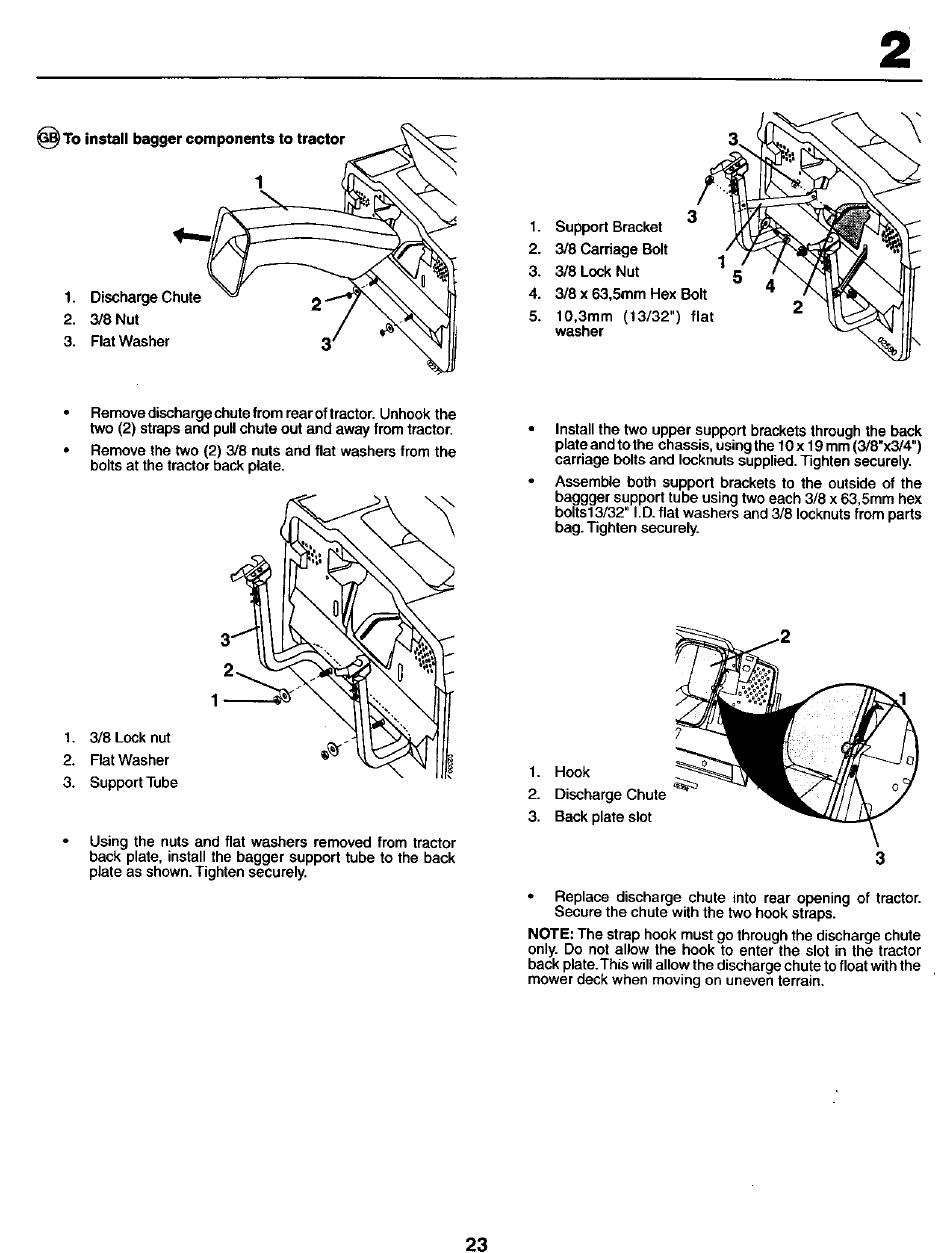

_To
install bagger components
to tractor
I--
1
1. Discharge Chute
2.
3/8 Nut
3.
Flat Washer
3
1. SupportBracket
2. 3/8 CarriageBolt
1
3. 3/8 Lock Nut
4.
3/8 x 63,5mm Hex Bolt
5.
10,3mm
(13/32")
flat
washer
5
•
Removedischargechute from rearoftractor. Unhook the
two (2) straps and pull chute out and away from tractor.
•
Remove the two (2) 3/8 nuts and flat washers from the
bolts at the tractor back plate.
1.
2.
3.
3/8 Lock nut
Flat Washer
Support Tube
Using the nuts and flat washers removed from tractor
back plate, install the bagger support tube to the back
plate as shown. Tighten securely.
Install the two upper support brackets through the back
plate and to the chassis, using the 10 x 19 mm (3/8"x3/4")
carriage bolts and Iocknuts supplied. Tighten securely.
Assemble both support brackets to the outside of the
baggger support tube using two each 3/8 x 63,5mm hex
bolts13/32" I.D. flat washers and 3/8 Iocknuts from parts
bag. Tighten securely.
1. Hook
2.
Discharge Chute
3.
Back plate slot
3
•
Replace discharge chute into rear opening of tractor.
Secure the chute with the two hook straps.
NOTE: The strap hook must go through the discharge chute
only. Do not allow the hook to enter the slot in the tractor
back plate.This will allow the discharge chute to float with the .
mower deck when moving on uneven terrain.
23
