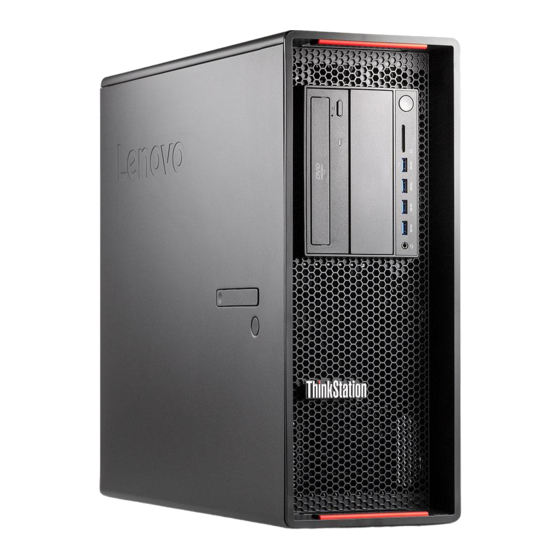

Seite 1 ThinkStation P510 and P710 Hardware Maintenance Manual Machine Types: 30B4, 30B5, 30B6, and 30B7...
Seite 2 1 “Read this first: Important safety information” on page 1 and Appendix F “Notices” on page 211. First Edition (April 2016) © Copyright Lenovo 2016. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA”...
Seite 3: Inhaltsverzeichnis
(Windows 7 only) ..Starting the Setup Utility program ..An introduction to Lenovo programs ..Enabling or disabling a device ..
Seite 4 ..91 Lenovo Web site ... . Service checkout....
Seite 6: About This Manual
About this manual ® This manual provides service and reference information for ThinkStation computers listed on the front cover. Use this manual along with the advanced diagnostic tests to troubleshoot problems. Important: This manual is intended only for trained service technicians who are familiar with ThinkStation computers.
Seite 7: Chapter 1. Read This First: Important Safety Information
• Do not perform any action that causes hazards to the customer, or that makes the equipment unsafe. • Before you start the machine, ensure that other service representatives and the customer's personnel are not in a hazardous position. © Copyright Lenovo 2016...
Seite 8: Electrical Safety
• Place removed covers and other parts in a safe place, away from all personnel, while you are servicing the machine. • Keep your tool case away from walk areas so that other people will not trip over it. • Do not wear loose clothing that can be trapped in the moving parts of a machine. Ensure that your sleeves are fastened or rolled up above your elbows.
Seite 9 • Find the room emergency power-off (EPO) switch, disconnecting switch, or electrical outlet. If an electrical accident occurs, you can then operate the switch or unplug the power cord quickly. • Do not work alone under hazardous conditions or near equipment that has hazardous voltages. •...
Seite 10: Safety Inspection Guide
Safety inspection guide The intent of this inspection guide is to assist you in identifying potentially unsafe conditions on these products. Each machine, as it was designed and built, had required safety items installed to protect users and service personnel from injury. This guide addresses only those items. However, good judgment should be used to identify potential safety hazards due to attachment of features or options not covered by this inspection guide.
Seite 11: Grounding Requirements
• Wear a grounded wrist strap against your skin to eliminate static on your body. • Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap. • Use the black side of a grounded work mat to provide a static-free work surface. The mat is especially useful when handling ESD-sensitive devices.
Seite 12 • Connect to properly wired outlets any equipment that will be attached to this product. • When possible, use one hand only to connect or disconnect signal cables. • Never turn on any equipment when there is evidence of fire, water, or structural damage. •...
Seite 13 ≥18 kg (37 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb) CAUTION: Use safe practices when lifting. CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord.
Seite 14 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 15 ≥18 kg (37 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb) PERIGO A corrente elétrica proveniente de cabos de alimentação, de telefone e de comunicações é perigosa. Chapter 1 Read this first: Important safety information...
Seite 16 Para evitar risco de choque elétrico: • Não conecte nem desconecte nenhum cabo ou execute instalação, manutenção ou reconfiguração deste produto durante uma tempestade com raios. • Conecte todos os cabos de alimentação a tomadas elétricas corretamente instaladas e aterradas. •...
Seite 17 • A utilização de controles ou ajustes ou a execução de procedimentos diferentes dos especificados aqui pode resultar em exposição prejudicial à radiação. PERIGO Alguns produtos a laser contêm diodo de laser integrado da Classe 3A ou da Classe 3B. Observe o seguinte: Radiação a laser quando aberto.
Seite 18 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 19 Chapter 1 Read this first: Important safety information...
Seite 20 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 21 DANGER Le courant électrique provenant de l'alimentation, du téléphone et des câbles de transmission peut présenter un danger. Pour éviter tout risque de choc électrique : • Ne manipulez aucun câble et n'effectuez aucune opération d'installation, d'entretien ou de reconfiguration de ce produit au cours d'un orage.
Seite 22 ATTENTION: Si des produits à laser (tels que des unités de CD-ROM, de DVD-ROM, des unités à fibres optiques, ou des émetteurs) sont installés, prenez connaissance des informations suivantes : • Ne retirez pas le carter. En ouvrant l'unité de CD-ROM ou de DVD-ROM, vous vous exposez au rayonnement dangereux du laser.
Seite 23 VORSICHT An Netz-, Telefon- und Datenleitungen können gefährliche Spannungen anliegen. Aus Sicherheitsgründen: • Bei Gewitter an diesem Gerät keine Kabel anschließen oder lösen. Ferner keine Installations-, Wartungs- oder Rekonfigurationsarbeiten durchführen. • Gerät nur an eine Schutzkontaktsteckdose mit ordnungsgemäß geerdetem Schutzkontakt anschließen.
Seite 24 • über 100 C erhitzen. • reparieren oder zerlegen. Die örtlichen Bestimmungen für die Entsorgung von Sondermüll beachten. ACHTUNG: Bei der Installation von Lasergeräten (wie CD-ROM-Laufwerken, DVD- aufwerken, Einheiten mit Lichtwellenleitertechnik oder Sendern) Folgendes beachten: • Die Abdeckungen nicht entfernen. Durch Entfernen der Abdeckungen des Lasergeräts können gefährliche Laserstrahlungen freigesetzt werden.
Seite 25 Chapter 1 Read this first: Important safety information...
Seite 26 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 27 PERICOLO La corrente elettrica proveniente dai cavi di alimentazione, del telefono e di comunicazione può essere pericolosa. Per evitare il rischio di scosse elettriche: • Non collegare o scollegare qualsiasi cavo oppure effettuare l'installazione, la manutenzione o la riconfigurazione del prodotto durante un temporale. •...
Seite 28 ATTENZIONE: Quando vengono installati prodotti laser (quali CD-ROM, unità DVD-ROM, unità a fibre ottiche o trasmittenti), tener presente quanto segue: • Non rimuovere gli sportelli. L'apertura di un'unità laser può determinare l'esposizione a radiazioni laser pericolose. All'interno dell'unità non vi sono parti su cui effettuare l'assistenza tecnica. •...
Seite 29 Chapter 1 Read this first: Important safety information...
Seite 30 PELIGRO La corriente eléctrica procedente de cables de alimentación, teléfonos y cables de comunicación puede ser peligrosa. Para evitar el riesgo de descarga eléctrica: • No conecte ni desconecte los cables ni realice ninguna tarea de instalación, mantenimiento o reconfiguración de este producto durante una tormenta eléctrica. •...
Seite 31 • No encienda nunca un equipo cuando hay señales de fuego, agua o daños estructurales. • Desconecte los cables de alimentación, los sistemas de telecomunicaciones, las redes y los módems conectados antes de abrir las cubiertas de los dispositivos, a menos que se indique lo contrario en los procedimientos de instalación y configuración.
Seite 32 Algunos productos láser tienen incorporado un diodo láser de clase 3A o clase 3B. Tenga en cuenta lo siguiente: Cuando se abre, queda expuesto a radiación láser. No mire directamente al rayo láser, ni siquiera con instrumentos ópticos, y evite exponerse directamente al rayo láser. ≥18 kg ≥32 kg ≥55 kg...
Seite 33: Chapter 2. Product Overview
Figure 1. Front connectors, controls, and indicators Optical-drive eject/close button (some models) Power button Power indicator Hard-disk-drive activity indicator Diagnostic indicator SD card slot Diagnostic USB 3.0 connector USB 3.0 connectors (2) Always On USB 3.0 connector Headset connector © Copyright Lenovo 2016...
Seite 34 ® Note: The orientation of the ThinkStation logo plate on the front of your computer is adjustable. When you lay the computer on its side, you can slightly pull out the logo plate. Turn it 90-degree counterclockwise, and then push it back in. Optical-drive eject/close button Press the button to eject or close the tray of the optical drive.
Seite 35: Rear View
Headset connector Connect the headset to your computer through the headset connector. Rear view Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer. ThinkStation P510 Figure 2. ThinkStation P510 rear panel Audio line-out connector Microphone connector PS/2 keyboard connector...
Seite 36 Audio line-in connector PS/2 mouse connector Note: For both ThinkStation P510 and ThinkStation P710 computers, one or more discrete graphics cards might be installed in the Peripheral Component Interconnect (PCI) card area. Depending on your computer model, the graphics cards might provide the following connectors: •...
Seite 37 Mini DisplayPort connector Attach a high-performance monitor, a direct-drive monitor, or other compatible devices to the Mini DisplayPort connector. The Mini DisplayPort connector is a miniaturized version of a DisplayPort connector. Audio line-out connector The audio line-out connector is used to send audio signals from the computer to external devices, such as headphones.
Seite 38 Ethernet connectors (2) Attach an Ethernet cable for a local area network (LAN). Note: To operate the computer within Federal Communications Commission (FCC) Class B limits, use a Category 5 Ethernet cable. Padlock loop Attach a padlock to secure your computer. For more information, see “Locking the computer cover” on page 59.
Seite 39: Computer Components
Computer components Notes: • Depending on the model, your computer might look slightly different from the illustration. • To remove the computer cover, see “Preparing your computer and removing the computer cover” on page 99. Figure 4. Component locations Heat sink and fan assemblies (amount varies by model) Memory modules (amount varies by model) Cover presence switch (also called intrusion switch) Optical drive, flex module, or flex bay storage enclosure...
Seite 40 Figure 5. Major FRUs and CRUs ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 41: Parts On The System Board
Wi-Fi antenna Memory modules Microprocessor System board Battery Lenovo factory recovery USB key Lenovo recovery disc set For detailed FRU information, such as the FRU part numbers and supported computer models, go to: http://www.lenovo.com/serviceparts-lookup Parts on the system board Note: Your computer comes with one of the following system boards.
Seite 42 ThinkStation P510 Figure 6. System board part locations Front audio connector Internal speaker connector Memory slot Optical-drive fan connector Memory slot Memory slot Memory slot Cover presence switch connector (Intrusion switch connector) Thermal sensor Microprocessor Memory slot Memory slot Memory slot Memory slot Flex adapter slot 4-pin power connectors (2)
Seite 43 PCI Express 3.0 x16 graphics card slot PCI Express 3.0 x4 card slot Rear fan connector Microprocessor fan connector Rear fan connector ThinkStation P710 Figure 7. System board part locations Front audio connector Internal speaker connector Rear fan connector Cover presence switch connector (Intrusion switch...
Seite 44: Internal Drives
Internal-storage-drive activity indicator connector 4-pin power connector (used only with a 9364 RAID card) Clear CMOS /Recovery jumper 4-pin power connector Optical-drive fan connector Front-access storage enclosure control connector (for SATA 6 connector) SATA 6 connector SATA 5 connector Front fan connector Front-access storage enclosure control connector (for SATA 5 connector) 4-pin power connector...
Seite 45 The following illustration shows the locations of the drive bays. Figure 8. Drive bay locations Card reader (for an SD card) Optical-drive bays (2) (for an optical drive, a flex module, or a flex bay storage enclosure) Storage drive bays (4) (for a hard disk drive, a hybrid drive, or a solid-state drive) Chapter 2 Product overview...
Seite 46: Machine Type And Model Label
Machine type and model label The machine type and model label identifies your computer. When you contact Lenovo for help, the machine type and model information helps support technicians to identify your computer and provide faster service. The machine type and model label is attached on the front of your computer as shown.
Seite 47 • For ThinkStation P510: Up to eight double data rate 4 (DDR4) error correction code (ECC) unbuffered dual inline memory modules (UDIMMs) or DDR4 ECC registered DIMMs (RDIMMs). • For ThinkStation P710: Up to 12 DDR4 ECC UDIMMs or DDR4 ECC RDIMMs. For more information, see “Memory module” on page 163.
Seite 48 • Display connectors (DisplayPort connector, DVI connector, and Mini DisplayPort connector) (vary by graphics card) • PS/2 keyboard connector • PS/2 mouse connector • USB connectors For more information, see “Front view” on page 27 and “Rear view” on page 29. Expansion •...
Seite 49 ® • Intel Standard Manageability (ISM) Intel Standard Manageability is hardware and firmware technology that builds certain functionality into computers in order to make them easier and less expensive for businesses to monitor, maintain, update, upgrade, and repair. • Intel Active Management Technology (AMT) Intel Active Management Technology is hardware- and firmware-based technology that makes computers easier and less expensive for businesses to monitor, maintain, update, upgrade, and repair.
Seite 50: Computer Specifications
Accessing a program on your computer Note: For Windows 7, depending on your computer model, some of the Lenovo programs might be ready to be installed, so you must install them manually. Then, you can access and use these programs.
Seite 51: Installing A Program That Is Ready To Be Installed (Windows 7 Only)
An introduction to Lenovo programs This section provides information about the major Lenovo programs available on your operating system. Note: Depending on your computer model, some of the following programs might not be available.
Seite 52 Lenovo ID The Lenovo ID program enables you to create and manage your Lenovo ID. With a Lenovo ID, you can connect to everything Lenovo through a single (Windows 10) account. Use your Lenovo ID for quick and simple authentication and then enjoy the various services provided by Lenovo.
Seite 53: Chapter 3. Using Your Computer
When you register your computer with Lenovo, you enter required information into a Lenovo database. The information enables Lenovo to contact you when there is a recall or other severe problem and provide quicker service when you call Lenovo for help. In addition, some locations offer extended privileges and services to registered users.
Seite 54: Handling And Storing A Disc
Handling and storing a disc When handling and storing a disc, follow these guidelines: • Hold the disc by its edges. Do not touch the surface of the side that is not labeled. • To remove dust or fingerprints, wipe the disc with a clean, soft cloth from the center to the outside. Wiping the disc in a circular direction might cause loss of data.
Seite 55: Connecting To A Network
® • Burn a disc using Windows Media Player. 1. Insert a recordable disc into the optical drive that supports recording. 2. Open Windows Media Player. See “Accessing a program on your computer” on page 44. 3. Follow the instructions on the screen. •...
Seite 56: Connecting To A Bluetooth-Enabled Device
Connecting to a Bluetooth-enabled device Bluetooth is a short-range wireless communications technology. Use Bluetooth to establish a wireless connection between your computer and another Bluetooth-enabled device within a distance of about 10 m (32.8 ft). Note: The Bluetooth feature is available only on some models. To connect to a Bluetooth-enabled device, do the following: 1.
Seite 57: Chapter 4. You And Your Computer
1. Comfort Although no single working position is ideal for everyone, here are a few guidelines to help you find a position that suits you best. The following figure sets an example for your reference. © Copyright Lenovo 2016...
Seite 58: Accessibility Information
Accessibility information Lenovo is committed to providing users who have hearing, vision, and mobility limitations with greater access to information and technology. This section provides information about the ways these users can get the most out of their computer experience. You also can get the most up-to-date accessibility information from the following Web site: http://www.lenovo.com/accessibility...
Seite 59 Ease of Access Center Ease of Access Center on the Windows operating system enables users to configure their computers to suit their physical and cognitive needs. To use Ease of Access Center, do the following: 1. Click the Start button to open the Start menu. 2.
Seite 60 3. Follow the instructions on the screen. Screen-reader technologies Screen-reader technologies are primarily focused on software program interfaces, help information systems, and various online documents. For additional information about screen readers, see the following: • Using PDFs with screen readers: http://www.adobe.com/accessibility.html?promoid=DJGVE •...
Seite 61: Cleaning Your Computer
Then, you can type a message on your computer and send it to the telephone. Documentation in accessible formats Lenovo provides electronic documentation in accessible formats, such as properly tagged PDF files or HyperText Markup Language (HTML) files. Lenovo electronic documentation is developed to ensure that visually impaired users can read the documentation through a screen reader.
Seite 62: Good Maintenance Practices
The cause of a problem might be change in hardware, change in software, or any other actions that might have taken place. A log book can help you or a Lenovo technician determines the cause of a problem. • Create Product Recovery discs. See “Recovery information” on page 87 for more information about using Product Recovery discs to restore the hard disk drive to the factory-default settings.
Seite 63: Moving Your Computer
If the local electrical outlet style is different from the type you are currently using, contact the Lenovo Customer Support Center to purchase either an electrical plug adapter or a new power cord. For a list of Lenovo Support phone numbers, go to http://www.lenovo.com/support/phone. If you cannot find the support telephone number for your country or region, contact your Lenovo reseller.
Seite 64 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 65: Chapter 5. Security
The keys for the key lock are attached to the rear of the machine. For security, store the keys in a secure place when you are not using them. Note: The key lock and keys are available only on some models. © Copyright Lenovo 2016...
Seite 66 Figure 10. Installing a padlock Figure 11. Locking the computer cover ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 67: Attaching A Kensington-Style Cable Lock
The cable lock also locks the buttons used to open the computer cover. This is the same type of lock used with many notebook computers. You can order such a cable lock directly from Lenovo by searching for Kensington at: http://www.lenovo.com/support Figure 12.
Seite 68: Using Fingerprint Authentication
• For Windows 7: Use the Fingerprint Manager Pro or ThinkVantage Fingerprint Software program provided by Lenovo. To open the program, see “Accessing a program on your computer” on page 44. For more information about using the program, refer to the help system of the program.
Seite 69: Using Firewalls
Your computer is preinstalled with an antivirus program to help you guard against, detect, and eliminate viruses. Lenovo provides a full version of antivirus software on your computer with a free 30-day subscription. After 30 days, you must renew the license to continue receiving the antivirus software updates.
Seite 70 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 71: Chapter 6. Advanced Configuration
To enable or disable the Automatic Power On features, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 65. 2. Select Power ➙ Automatic Power On and press Enter. © Copyright Lenovo 2016...
Seite 72: Enabling Or Disabling The Erp Lps Compliance Mode
Note: For some keyboards, you might need to press Fn+F10 to exit the Setup Utility program. Enabling or disabling the ErP LPS compliance mode Lenovo computers meet the eco-design requirements of the ErP Lot 3 regulation. For more information, go http://www.lenovo.com/ecodeclaration You can enable the ErP LPS compliance mode in the Setup Utility program to reduce the consumption of electricity when your computer is off or in sleep mode.
Seite 73: Changing The Bios Settings Before Installing A New Operating System
2. Select Security ➙ Configuration Change Detection and press Enter. 3. Select the desired setting and press Enter. 4. To save settings and exit the Setup Utility program, press F10, select Yes in the window displayed, and press Enter. Note: For some keyboards, you might need to press Fn+F10 to exit the Setup Utility program. To bypass the error message and log in to the operating system, do one of the following: •...
Seite 74 If both the power-on password and administrator password are set, you can enter either password. However, you must use your administrator password to change any configuration settings. • Hard disk password Setting a hard disk password prevents unauthorized access to the data on the internal storage drive (such as a hard disk drive).
Seite 75: Selecting A Startup Device
3. Locate the Clear CMOS (Complementary Metal Oxide Semiconductor) /Recovery jumper on the system board. See “Parts on the system board” on page 35. 4. Move the jumper from the standard position (pin 1 and pin 2) to the maintenance position (pin 2 and pin 3).
Seite 76: Exiting The Setup Utility Program
Start the Setup Utility and view the BIOS Revision level on the Main page. • Sources for obtaining the latest level BIOS available – Lenovo support Web site: http://www.lenovo.com/support/ – Lenovo Customer Support Center – Levels 1 and 2 Support To update the BIOS, see “Updating and recovering the BIOS”...
Seite 77: Recovering From A Bios Update Failure
Recovering from a BIOS update failure To recover from a BIOS update failure, do the following: 1. Remove any media from the drives and turn off all connected devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer.
Seite 78 – A RAID Level 0 hard disk drive group consisting of at least two hard disk drives – Supported strip size: 4 KB, 8 KB, 16 KB, 32 KB, 64 KB, or 128 KB – Better performance without fault tolerance •...
Seite 79 To create a RAID volume, do the following: 1. Enter the Intel RSTe configuration utility. See “Entering the Intel RSTe configuration utility” on page 72. 2. Press the up and down arrow keys to select Create RAID Volume, and then press Enter to view the CREATE VOLUME MENU window.
Seite 80: Quick Raid Setup Using The Lsi Megaraid Bios Configuration Utility
• The following steps in this section are intended to guide you through a quick setup of basic RAID functions with the LSI MegaRAID SAS adapter. For advanced setup and configuration using this adapter, refer to the complete MegaRAID SAS Software User Guide that is available at http://support.lenovo.com/en_US/guides-and-manuals/detail.page?DocID=UM007543. This section provides information about the following topics: •...
Seite 81 • RAID Level 6 - Block-level striped disk array with dual distributed parity – A RAID Level 6 hard disk drive group consisting of at least four hard disk drives – Supported strip size: 8 KB to 1 MB – Better performance and fault tolerance that can stand up to loss of two hard disk drives –...
Seite 82 6. Click Next. The Virtual Drive Definition window is displayed. Change the virtual hard disk drive options from the default settings listed on the screen to the settings you want. Click Accept , and then follow the instructions on the screen to customize your settings. 7.
Seite 83: Chapter 7. Troubleshooting, Diagnostics, And Recovery
5. Recover your operating system. See “Recovery information” on page 87. 6. If none of these actions solve your problem, contact the Lenovo Customer Support Center. For a list of Lenovo Support phone numbers, go to http://www.lenovo.com/support/phone. For more information about help, service, and technical assistance, see Chapter 10 “Getting information, help, and service”...
Seite 84: Audio Problems
• The power cord is correctly connected to the rear of the computer and to a working electrical outlet. • If your computer has a secondary power switch on the rear of the computer, ensure that it is switched on. •...
Seite 85: Cd Or Dvd Problems
Note: If the volume icon is not displayed in the Windows notification area, add the icon to the notification area. See the Windows help system. CD or DVD problems A CD or DVD does not work. Solutions: • Ensure that the power cable and signal cable are securely connected to the drive. •...
Seite 86: Intermittent Problems
The playback is slow or choppy. Solutions: • Disable any background programs, such as AntiVirus or Desktop Themes. • Ensure that video resolution is lower than 1152 x 864 pixels. A message indicating invalid disc or no disc found is displayed. Solutions: •...
Seite 87: Wireless Lan Problem
• Connect the cable from the Ethernet connector to the RJ45 connector of the hub. • Enable the Ethernet LAN feature in the Setup Utility program. Refer to “Using the Setup Utility program” on page 65. • Enable the Ethernet LAN adapter. 1.
Seite 88: Bluetooth Problems
1. Depending on your Windows version, do one of the following: – For Windows 7: Click the Start button to open the Start menu. – For Windows 10: Right-click the Start button to open the Start context menu. 2. Click Control Panel. View Control Panel by Large icons or Small icons, and then click Network and Sharing Center ➙...
Seite 89: Performance Problems
Performance problems Excessive fragmented files exist on the storage drives. Solution: Use the Windows disk defragmentation or disk optimization feature to clean up the files. Note: Depending on the volume of the storage drives and amount of data stored on the storage drives, the disk-defragmentation process might take up to several hours.
Seite 90: Serial Connector Problem
• Right-click a blank area on the taskbar and open Task Manager. Then, end some tasks you are not performing. • Install additional memory modules. See Chapter 9 “Installing or replacing hardware” on page 99. To purchase memory modules, go to: http://www.lenovo.com Serial connector problem The serial connector cannot be accessed. Solutions: •...
Seite 91: Diagnostics
If you are unable to isolate and repair the problem yourself after running Lenovo Solution Center, save and print the log files created by the program. You might need the log files when you speak to a Lenovo technical support representative.
Seite 92: Hardware Diagnostics
USB key. • If you are using an Android device with the Lenovo Workstation Diagnostics app installed, open the application for details about the error. For more information on the Lenovo Workstation Diagnostics app, go to http://www.thinkworkstationsoftware.com/diags.
Seite 93: Recovery Information
1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 65. 2. From the Setup Utility program main menu, select Advanced ➙ Diagnostic function, and then press Enter. 3. Select Real-time Diagnostic Monitoring and press Enter. Then select Disabled and press Enter. 4.
Seite 94: Recovery Information For Windows 10
69. 2. Follow the instructions on the screen to choose the appropriate recovery solution. • Use the recovery disc set provided by Lenovo to restore the entire storage drive to the factory-default settings. – If your computer comes with the recovery disc set, follow the instructions shipped with the disc set.
Seite 95 – If your computer comes with the recovery USB key, follow the instructions shipped with the USB key. – If your computer does not come with the recovery USB key, contact the Lenovo Customer Support Center to order a recovery USB key. See “Calling for service” on page 194.
Seite 96 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 97: Chapter 8. Service Checkout And Symptom-To-Fru Index
If possible, have this information available when requesting assistance from Service Support and Engineering functions. • Machine type and model • Processor or hard disk drive upgrades • Failure symptom – Do diagnostics indicate a failure? © Copyright Lenovo 2016...
Seite 98: Symptom-To-Fru Index
– What, when, where, single, or multiple systems? – Is the failure repeatable? – Has this configuration ever worked? – If it has been working, what changes were made prior to it failing? – Is this the original reported failure? •...
Seite 99: Power Supply Problems
Error FRU/Action The start-up drive is not in the boot sequence in Check the configuration and ensure the start-up drive is configuration. in the boot sequence. No operating system installed on the boot drive. Install an operating system on the boot drive. The boot sector on the startup drive is corrupted.
Seite 100: Post Error Codes
Beep symptom FRU/Action 4 long beeps: insufficient shadow RAM resources See the detailed failure information in “POST error codes” for option ROM (error code: 8998) or PCIe/PCI MMIO on page 94. (memory mapped input/output) resources (error code: 8999) 2 long and 3 short beeps: graphic card error Perform the following actions in order: 1.
Seite 101: Miscellaneous Error Conditions
Error code POST error message Description/Action 1820 This error message is displayed when More than one external fingerprint reader is attached. Power off and more than one external fingerprint remove all but the reader that you set reader is connected to the computer. up within your main operating system.
Seite 102 Message/Symptom FRU/Action ® Computer will not perform a Wake On LAN (if applicable) 1. Check power supply and signal cable connections to network adapter. 2. Ensure that the operating system settings are set to enable Wake on LAN. 3. Ensure Wake On LAN feature is enabled in Setup/Configuration (see “Starting the Setup Utility program”...
Seite 103: Undetermined Problems
Message/Symptom FRU/Action Program loads from the hard disk with a known-good 1. Run the Setup Utility program and check Startup diagnostics diskette in the first 3.5-inch diskette drive sequence. 2. Diskette Drive 3. Diskette Drive Cable 4. System Board 5. Power Supply RPL computer cannot access programs from its own hard 1.
Seite 104 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 105: Chapter 9. Installing Or Replacing Hardware
1. Remove any media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2. Unlock any locking device that secures the computer cover. See “Locking your computer” on page 59. © Copyright Lenovo 2016...
Seite 106: Installing Or Replacing Hardware
• When installing or replacing an option, use the appropriate instructions in this section along with the instructions that come with the option. • In most areas of the world, Lenovo requires the return of the defective CRU. Information about this will come with the CRU or will come a few days after the CRU arrives.
Seite 107: Direct Cooling Air Baffle
Direct cooling air baffle Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter 1 “Read this first: Important safety information” on page 1. To remove the direct cooling air baffle, do the following: 1.
Seite 108: Device In The Optical-Drive Bay
1. Align the plastic boards on the top and bottom sides of the direct cooling air baffle with the small gaps in the computer chassis. Figure 15. Installing the direct cooling air baffle 2. Push the direct cooling air baffle in until it is placed firmly in position. Note: If necessary, adjust the position of the direct cooling air baffle slightly to avoid the interference from other components in the chassis.
Seite 109 3. Locate the optical-drive bay that you want to use. See “Computer components” on page 33. 4. Depending on whether you are installing or replacing an optical drive, do one of the following: • If you are installing a new optical drive, press the clip on the bottom of the optical-drive bay from the front of the computer to remove the plastic cover.
Seite 110 5. Press the tabs toward each other as shown, and slide the new optical drive halfway into the bay from the front of the computer. Then, release the tabs and continue to slide the optical drive in until it snaps into position. Figure 17.
Seite 111: Storage Drive In The Flex Bay Storage Enclosure
Storage drive in the flex bay storage enclosure Attention: Do not open your computer or attempt any repair before reading and understanding Chapter 1 “Read this first: Important safety information” on page 1. You can install a 3.5-inch hard disk drive, a 2.5-inch hard disk drive, or a 2.5-inch solid-state drive into the flex bay storage enclosure.
Seite 112 4. Install the 3.5-inch storage drive into the flex bay storage enclosure. Then, install the four screws to secure the drive to the flex bay storage enclosure. Figure 20. Installing the 3.5-inch storage drive to the flex bay storage enclosure 5.
Seite 113 1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 99. 2. If the flex bay storage enclosure is installed in the computer, disconnect the signal cable and the power cable from the 2.5-inch storage drive first. Then, remove the flex bay storage enclosure from the front of the computer.
Seite 114 b. Remove the five screws that secure the 2.5-inch storage drive to the storage converter. Take the drive out of the storage converter. Note: When installing or removing the storage drive, do not touch the circuit board on the storage drive and make sure that the circuit board faces downward.
Seite 115 4. Install the 2.5-inch storage drive into the storage converter. Then, install the five screws to secure the drive to the storage converter. Figure 24. Installing the 2.5-inch storage drive into the storage converter 5. Install the 2.5-inch storage drive and the storage converter into the flex bay storage enclosure. Then, install the four screws to secure the storage converter to the flex bay storage enclosure.
Seite 116: Device In The 5.25-Inch Flex Module
6. Slide the flex bay storage enclosure into the optical drive bay. See “Device in the optical-drive bay” on page 102. 7. Connect the signal cable and the power cable to the new storage drive. Figure 26. Connecting the cables to the storage drive What to do next: •...
Seite 117 3. Lift the clip on the rear of the flex module. Then, slide the flex module cover to the rear of the flex module to remove the cover. Figure 27. Removing the flex module cover 4. If you are installing a new slim optical drive, press the two metal clips to remove the plastic clip with the two screws as shown.
Seite 118 b. Remove the two screws that secure the clip to remove the plastic clip from the rear of the slim optical drive. Figure 30. Removing the plastic clip from the slim optical drive 5. Install the two screws to secure the plastic clip on the rear of the new slim optical drive. Figure 31.
Seite 119: Card Reader
7. Position the flex module cover on the flex module. Ensure that the rail guides on the bottom of the flex module cover engage the rails on the flex module. Then, push the cover to the front of the flex module until it snaps into position.
Seite 120 b. Pull the clip as shown to remove the card reader with the card-reader retaining bracket out of the flex module. Figure 35. Removing the card reader in the flex module c. Flex the four clips on the sides of the card-reader retaining bracket to remove the card reader from the bracket.
Seite 121 6. Note the orientation of the new card reader and route the card reader cable into the cable clip. Hold the clip on the card-reader retaining bracket. Then, insert the new card reader into the card-reader slot in flex module until it snaps into position. Figure 38.
Seite 122 3. Lift the clip on the rear of the flex module. Then, slide the flex module cover to the rear of the flex module to remove the cover. Figure 40. Removing the flex module cover 4. If you are replacing an eSATA connector or IEEE 1394 connector, do the following: a.
Seite 123 5. Note the orientation of the eSATA connector or IEEE 1394 connector and route the eSATA connector or IEEE 1394 connector cable into the cable clip. 6. Place the eSATA connector or IEEE 1394 connector into the metal retainer. Then insert the eSATA connector or IEEE 1394 connector into the corresponding slot in the flex module as shown.
Seite 124 • A front Thunderbolt PCI Express x4 card • A bezel • A GPIO cable • A Mini-SAS cable • An internal DP-to-DP cable • Two external DP-to-DP cables To install or replace a front Thunderbolt adapter kit, do the following: 1.
Seite 125 b. Pull the clip as shown to remove the front Thunderbolt I/O adapter and the retaining bracket out of the flex module. Figure 45. Removing the front Thunderbolt adapter and the retaining bracket out of the flex module c. Flex the four clips on the sides of the retaining bracket to remove the front Thunderbolt I/O adapter from the bracket.
Seite 126 a. Remove the dummy bezel and install the bezel in the front Thunderbolt adapter kit to the flex module first. Figure 47. Installing the bezel to the flex module b. To install a new front Thunderbolt I/O adapter into the retaining bracket, align the four holes in the front Thunderbolt I/O adapter with the corresponding mounting studs on the bracket.
Seite 127 c. Hold the clip on the retaining bracket and then insert the front Thunderbolt I/O adapter and the retaining bracket into the flex module as shown until they snap into position. Figure 49. Installing the front Thunderbolt adapter and the retaining bracket into the flex module 6.
Seite 128: Optical-Drive Bracket
8. Route the cables through the two holes in the rear of the flex module. Position the flex module cover on the flex module. Ensure that the rail guides on the bottom of the cover engage the rails on the flex module.
Seite 129 4. Press the retaining clip on the top of the optical-drive bracket. Then, pivot the bracket outward from the rear to remove it from the computer chassis. Figure 52. Removing the optical-drive bracket To reinstall the optical-drive bracket, do the following: 1.
Seite 130: Cover Presence Switch
2. Pivot the optical-drive bracket inward as shown until it snaps into position. Figure 54. Installing the optical-drive bracket 3. Reinstall the direct cooling air baffle. See “Direct cooling air baffle” on page 101. What to do next: • To work with another piece of hardware, go to the appropriate section. •...
Seite 131 6. Slide the cover presence switch as shown to remove it from the computer chassis. Figure 55. Removing the cover presence switch 7. Align the two notches in the new cover presence switch with the two tabs on the computer chassis. Then, push the new cover presence switch inward until it is seated securely between the tabs.
Seite 132: Front Fan Assembly
Front fan assembly Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter 1 “Read this first: Important safety information” on page 1. Note: The front fan assembly is only available on some models. To replace the front fan assembly, do the following: 1.
Seite 133: Internal Storage Drive
5. Align the top and bottom edges of the new front fan assembly with the two slots in the computer chassis. Then, slide the new front fan assembly inward until it cannot be pushed in further. Figure 58. Installing the front fan assembly What to do next: •...
Seite 134 Depending on your computer model, one of the following types of storage drive bracket is used in the storage drive bay: Figure 59. Two types of storage drive bracket To install or replace a 3.5-inch storage drive in a type bracket, do the following: 1.
Seite 135 Then, flex the sides of the bracket to remove the storage drive from the bracket. Figure 61. Removing the storage drive from the type bracket 4. Flex the sides of the bracket and align pins on the bracket with the corresponding holes in the new storage drive.
Seite 136 5. Slide the bracket with the new storage drive into the storage drive bay. Figure 63. Installing the type storage drive bracket 6. Connect the signal cable and the power cable to the new storage drive, and then close the handles on both sides of the bracket.
Seite 137 4. If you are replacing a storage drive, flex the sides of the bracket to remove the storage drive from the bracket. Figure 65. Removing the storage drive from the type bracket 5. Flex the sides of the bracket and align pins on the bracket with the corresponding holes in the new storage drive.
Seite 138 6. Slide the bracket with the new storage drive into the storage drive bay until it snaps into position. Figure 67. Installing the type storage drive bracket What to do next: • To work with another piece of hardware, go to the appropriate section. •...
Seite 139 Note: This section illustrates only installing or replacing a 2.5-inch solid-state drive. To install or replace a 2.5-inch storage drive in a type bracket, do the following: 1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 99. 2.
Seite 140 4. Flex the sides of the bracket and align pins on the bracket with the corresponding holes in the new storage drive. Note: If you are installing a 2.5-inch hard disk drive, ensure that the circuit board faces downward and the connectors face toward the front of the bracket.
Seite 141 To install or replace a 2.5-inch storage drive in a type bracket, do the following: 1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 99. 2. Locate the storage drive bay. See “Internal drives” on page 38. 3.
Seite 142 5. Flex the sides of the bracket and align pins on the bracket with the corresponding holes in the new storage drive. Note: If you are installing a 2.5-inch hard disk drive, ensure that the circuit board faces downward and the connectors face toward the rear of the bracket.
Seite 143 What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 189. Installing or replacing a 2.5-inch storage drive with a converter in the storage drive bay Depending on your computer model, one of the following types of storage drive bracket is used in the storage drive bay: Figure 77.
Seite 144 • If you are replacing a 2.5-inch storage drive with a converter, open the handles on both sides of the storage drive bracket. Disconnect the cables from the converter, and pull out the bracket. Figure 78. Removing the type storage drive bracket Then, flex the sides of the bracket to remove the converter from the bracket.
Seite 145 4. Lift the tab of the metal bracket and push the tab as shown to slide the bracket and remove it from the plastic frame. Note: If you are replacing a storage drive, push the tab harder to disconnect the storage drive from the plastic frame.
Seite 146 6. Carefully flex the sides of the metal bracket and align the four tabs on the metal bracket with the corresponding holes in the new storage drive. Note: Ensure that the connectors of the storage drive face toward the tab of the metal bracket. Figure 82.
Seite 147 8. Push the metal bracket down until the tab is slightly curved. Then, push the bracket with the storage drive forward as shown until the tab snaps into position. Figure 84. Installing the metal bracket into the plastic frame of the converter 9.
Seite 148 10. Slide the storage drive bracket with the converter into the storage drive bay. Figure 86. Installing the type storage drive bracket 11. Connect the signal cable and the power cable to the converter, and then close the handles on both sides of the storage drive bracket.
Seite 149 4. If you are replacing a storage drive with a converter, flex the sides of the bracket to remove the converter from the bracket. Figure 88. Removing the converter from the type bracket Remove the storage drive from the converter. See Figure 80 “Removing the metal bracket from the plastic frame of the converter”...
Seite 150 7. Slide the storage drive bracket with the converter into the storage drive bay until it snaps into position. Figure 90. Installing the type storage drive bracket What to do next: • To work with another piece of hardware, go to the appropriate section. •...
Seite 151: Blind-Connect Assembly
5. Install the new M.2 solid-state drive into the M.2 slot until the notch is aligned with the corresponding screw hole in the flex adapter. Then, install the screw to secure the new solid-state drive. Figure 92. Installing the M.2 solid-state drive 6.
Seite 152 a. Record the cable routing and cable connections, and then disconnect all cables from the system board, the RAID card, and the flex adapter. b. Press and hold the metal retainer , and slide the blind-connect board as shown to release it from the four tabs.
Seite 153: Power Supply Assembly
6. Align the four tabs at the bottom of the storage drive bay with the slots on the new blind-connect board. Then, press down the board and slide it as shown until it snaps into position. Figure 95. Installing the blind-connect assembly 7.
Seite 154 Although there are no moving parts in your computer after the power cord has been disconnected, the following warnings are required for your safety and proper Underwriters Laboratories (UL) certification. CAUTION: Hazardous moving parts. Keep fingers and other body parts away. CAUTION: Never remove the cover on a power supply or any part that has the following label attached.
Seite 155: Pci Card
• ThinkStation P510: One standard PCI card slot, one PCI Express x1 card slot, two PCI Express x4 card slots, and two PCI Express x16 graphics card slots. • ThinkStation P710: One standard PCI card slot, one PCI Express x4 card slot, one PCI Express x8 card slot, and three PCI Express x16 graphics card slots.
Seite 156 Note: If your computer has only one microprocessor installed, only some PCI Express card slots are usable. Figure 100. PCI Express card installation order for ThinkStation P710 If your computer comes with a full-length PCI card, refer to “Full-length PCI card” on page 154 for its replacement instructions.
Seite 157 a. Pull and pivot the tab on the front fan assembly as shown to open the latch inside. Figure 101. Opening the latch in the front fan assembly b. Gently pull the PCI card retainer out of the slot in the front fan assembly and then remove the card retainer from the PCI card latch.
Seite 158 4. Lift up the plastic PCI card latch at the rear of the computer. Then, pivot the latch to the left to rest it on the edge of the rear panel. Figure 103. Opening the PCI card latch 5. Depending on whether you are installing or replacing a PCI card, do one of the following: •...
Seite 159 • If you are replacing an old PCI card, grasp the old card that is installed and gently pull it out of the slot. Notes: – If the PCI card is connected to another device, disconnect the cable from the card first. –...
Seite 160: Full-Length Pci Card
• ThinkStation P510: One standard PCI card slot, one PCI Express x1 card slot, two PCI Express x4 card slots, and two PCI Express x16 graphics card slots • ThinkStation P710: One standard PCI card slot, one PCI Express x4 card slot, one PCI Express x8 card slot, and three PCI Express x16 graphics card slots To install or replace a full-length PCI card, do the following: 1.
Seite 161 3. Lift up the plastic PCI card latch at the rear of the computer. Then, pivot the latch to the left to rest it on the edge of the rear panel. Figure 106. Opening the PCI card latch 4. Pull and pivot the tab on the front fan assembly as shown to open the latch inside. Figure 107.
Seite 162: Super Capacitor Module
• If you are replacing an old full-length PCI card, disconnect the power cord from the card first. Press the card retaining latch as shown to disengage the latch, and grasp the old card and gently pull it out of the slot. Notes: –...
Seite 163 To install or replace the super capacitor module, do the following: 1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 99. 2. Lay the computer on its side for easier access to the super capacitor module. 3.
Seite 164 7. Gently pivot the plastic retaining clip on the bracket as shown and install the new super capacitor module into the bracket at the same time. Note: Ensure that the cable of the super capacitor module is oriented as shown. Figure 110.
Seite 165: Rear Fan Assembly
What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 189. Rear fan assembly Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter 1 “Read this first: Important safety information”...
Seite 166 6. Align the two tabs on the new rear fan assembly with the two corresponding slots in the computer chassis. Figure 113. Positioning the rear fan assembly 7. Pivot the new rear fan assembly toward the rear panel as shown until the retaining clip snaps into position.
Seite 167: Heat Sink And Fan Assembly
9. Reinstall the heat sink and fan assembly if you have removed it. See “Heat sink and fan assembly” on page 161. 10. Reinstall the direct cooling air baffle. See “Direct cooling air baffle” on page 101. What to do next: •...
Seite 168 6. Follow the following sequence to remove the four screws that secure the heat sink and fan assembly to the system board: a. Partially remove screw , then fully remove screw , and then fully remove screw b. Partially remove screw , then fully remove screw , and then fully remove screw Note: Carefully remove the four screws from the system board to avoid any possible damage to the...
Seite 169: Memory Module
• Always install DIMMs in the following order as illustrated: Figure 116. Memory module installation order for ThinkStation P510 For ThinkStation P710: Your computer has 12 slots for installing or replacing DDR4 DIMMs that provide up to a maximum of 384 GB system memory.
Seite 170 • Always install DIMMs in the following order as illustrated: Figure 117. Memory module installation order for ThinkStation P710 To install or replace a memory module, do the following: 1. Prepare your computer. See “Preparing your computer and removing the computer cover” on page 99.
Seite 171: Flex Adapter
• If you are installing a memory module, open the retaining clips of the memory slot into which you want to install the memory module. Figure 119. Opening the retaining clips 7. Position the new memory module over the memory slot. Ensure that the notch on the memory module aligns correctly with the slot key on the system board.
Seite 172 Note: This section uses illustrations for installing or replacing a flex adapter on a ThinkStation P510 computer as examples. For a ThinkStation P710 computer, the plastic tab on the flex adapter might be shorter than illustrated. To install or replace a flex adapter, do the following: 1.
Seite 173: Battery
6. Align the plastic tab on the flex adapter with the corresponding slot in the front fan assembly. Then, install the new flex adapter into the flex adapter slot. Note: Ensure that you install the flex adapter only into a flex adapter slot. Do not install the flex adapter into a PCI or PCI Express card slot.
Seite 174 The battery normally requires no charging or maintenance throughout its life; however, no battery lasts forever. If the battery fails, the date, time, and configuration information (including passwords) are lost. An error message is displayed when you turn on the computer. Refer to the “Lithium coin cell battery notice”...
Seite 175: Microprocessor
Microprocessor Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter 1 “Read this first: Important safety information” on page 1. Depending on the model, your computer might come with one or two microprocessors. For computer models with one microprocessor, the microprocessor is installed in the microprocessor socket.
Seite 176 7. Gently press down the small handle to open the microprocessor retainer. Pivot the retainer upward until it is in the fully open position. Figure 127. Opening the microprocessor retainer 8. Lift the microprocessor straight up and out of the microprocessor socket. Place the old microprocessor on a static-protective surface.
Seite 177 10. Remove the new microprocessor from the protective cover that protects the gold contacts on the bottom of the new microprocessor. Do not touch the pins on the microprocessor socket or the gold contacts on the bottom of the new microprocessor. Figure 129.
Seite 178 12. Pivot the microprocessor retainer downward to close the retainer. Figure 131. Closing the microprocessor retainer 13. Gently press down the small handle and then push the handle inward to secure it. Then gently press down the small handle and push the handle inward to lock the microprocessor retainer into position and secure the new microprocessor in the socket.
Seite 179: System Board
System board Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter 1 “Read this first: Important safety information” on page 1. CAUTION: The heat sink and microprocessor might be very hot. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool.
Seite 180 13. Press the metal retainer to release the failing system board. Then push the failing system board toward the retainer and carefully lift the system board out of the chassis. Notes: • Carefully handle the system board by its edges. •...
Seite 181 15. Position the new system board in the chassis. Align the mounting studs on the bottom of the system board with the corresponding holes in the chassis. Then, push the new system board toward the rear of the computer until it snaps into position. Ensure that the system board is secured by the metal retainer. Note: The number of mounting studs on the system board on your computer might be different from the illustration.
Seite 182 1. Pivot the microprocessor retainer downward to close the retainer. Figure 135. Closing the microprocessor retainer 2. Gently press down the small handle , and then push the handle inward to secure it. Then gently press down the small handle and push the handle inward to lock the microprocessor retainer into position.
Seite 183: Front Panel I/O Cable
3. Align the notch of the microprocessor socket cover with the alignment key of the microprocessor socket. Lower the socket cover straight down into the microprocessor socket on the system board. Figure 137. Installing the microprocessor socket cover Note: Your microprocessor socket and cover might look slightly different from the illustration. What to do next: •...
Seite 184 13. Press the metal retainer to release the system board. Then push the system board toward the retainer and carefully lift the system board out of the chassis. Notes: • Carefully handle the system board by its edges. • The system board on your computer might look slightly different from the illustration. Figure 138.
Seite 185 16. Use a screwdriver to slightly lever the clips that secure the front panel I/O cable. Remove the front panel I/O cable from the metal bracket. Figure 140. Removing the front panel I/O cable from the metal bracket To install a new front panel I/O cable, do the following: 1.
Seite 186: Internal Speaker
2. Install the front panel I/O cable with bracket into the chassis and fasten it to the chassis with the screw. Figure 142. Installing the screw to secure the front panel I/O cable bracket 3. Reinstall all parts that you have removed one by one in the reversed sequence as you remove them. Refer to the related topics in Chapter 9 “Installing or replacing hardware”...
Seite 187 7. Use a screw driver to slightly lever up the internal speaker. Then, remove the internal speaker from the retaining tabs. Figure 143. Removing the internal speaker 8. Insert the new internal speaker as shown until it is secured by the retaining tabs. Figure 144.
Seite 188: Wi-Fi Units
What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 189. Wi-Fi units Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter 1 “Read this first: Important safety information”...
Seite 189 3. If your computer comes with a Wi-Fi card module that supports the Bluetooth function, disconnect the Bluetooth cable from the Wi-Fi adapter card. Figure 146. Disconnecting the Bluetooth cable Chapter 9 Installing or replacing hardware...
Seite 190 4. Lift up the plastic PCI card latch at the rear of the computer. Then, pivot the latch outward to rest it on the edge of the rear panel. Figure 147. Opening the PCI card latch 5. Grasp the Wi-Fi adapter card that is installed and gently pull it out of the slot. Figure 148.
Seite 191 6. Disconnect the two Wi-Fi antenna cables from the Wi-Fi card module. Figure 149. Disconnecting the Wi-Fi antenna cables 7. Remove the two screws that secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 150. Removing the screws that secure the Wi-Fi card module Chapter 9 Installing or replacing hardware...
Seite 192 8. Pull the Wi-Fi card module out of the mini PCI Express slot. Figure 151. Removing the Wi-Fi card module What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 189. Installing the Wi-Fi units To install the Wi-Fi units, do the following: 1.
Seite 193 3. Install the two screws to secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 153. Installing the screws to secure the Wi-Fi card module 4. Connect the two Wi-Fi antenna cables to the Wi-Fi card module. Figure 154. Connecting the Wi-Fi antenna cables Chapter 9 Installing or replacing hardware...
Seite 194 5. Install the Wi-Fi adapter card into the PCI Express slot on the system board. See “Parts on the system board” on page 35. Figure 155. Installing the Wi-Fi adapter card 6. Pivot the PCI card latch and push it back in until it snaps into position. 7.
Seite 195: Completing The Parts Replacement
8. Attach the Wi-Fi antenna cable connectors to the corresponding Wi-Fi antenna connectors shown. Figure 156. Installing the Wi-Fi antenna 9. Tighten the Wi-Fi antenna cable connectors to secure them to the rear of the computer. What to do next: •...
Seite 196 3. Position the computer cover on the chassis, align the slots on both the top and the bottom of the cover with the corresponding little posts on the chassis. Note: Keep the handle on the cover latch lifted before you finish reinstalling the computer cover. Figure 157.
Seite 197 4. Pivot the lifted handle on the cover latch inward as shown to the closed position so that the computer cover is secured in position. Figure 158. Reinstalling the computer cover 5. Place the computer in an upright position. 6. If there is any locking device available, lock the computer cover. See “Locking your computer” on page 59.
Seite 198 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 199: Chapter 10. Getting Information, Help, And Service
User Guide. Lenovo Web site The Lenovo Web site (http://www.lenovo.com) provides up-to-date information and services to help you buy, upgrade, and maintain your computer. You also can do the following: • Shop for desktop and notebook computers, monitors, projectors, upgrades, and accessories for your computer, and special offers.
Seite 200: Lenovo Support Web Site
• Engineering Change management - There might be changes that are required after a product has been sold. Lenovo or your reseller will make selected Engineering Changes (ECs) that apply to your hardware available.
Seite 201: Using Other Services
For technical assistance with the installation of or questions related to Service Packs for your preinstalled Microsoft Windows product, go to the Microsoft Product Support Web site at http://support.microsoft.com. You also can contact the Lenovo Customer Support Center for help. Some fees might apply. Purchasing additional services During and after the warranty period, you can purchase additional services.
Seite 202 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 203: Appendix A. System Memory Speed
E5-2623 v4, E5-2620 v4, E5-2618L 2133 MHz v4, E5-1650 v3, E5-1620 v3, E5-1607 v4, E5-1603 v4 1.2 V Intel Xeon E5-2620 v3, E5-2609 v4, 1866 MHz E5-2608L v4, E5-2603 v4 1.2 V Intel Xeon E5-2609 v3 1600 MHz © Copyright Lenovo 2016...
Seite 204 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 205: Appendix B. Regulatory Information
• Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment.
Seite 206 Geräte der Klasse B. Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo (Deutschland) GmbH, Meitnerstr. 9, D-70563 Stuttgart. Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse B.
Seite 207: Eurasian Compliance Mark
All regulatory notices are available on the Lenovo Support Web site in electronic format. To access electronic copies of the documentation, go to http://www.lenovo.com/UserManuals.
Seite 208 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 209: Appendix C. Weee And Recycling Information
Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of...
Seite 210: Recycling Information For Brazil
If you need to replace it with a new one, contact your place of purchase or contact Lenovo for service. If you need to dispose of a disused lithium battery, insulate it with vinyl tape, contact your place of purchase or an industrial-waste-disposal operator, and follow their instructions.
Seite 211: Battery Recycling Information For The European Union
If the battery needs to be replaced, contact your place of purchase or contact Lenovo for service. If you need to dispose of a lithium battery, insulate it with vinyl tape, contact your place of purchase or a waste-disposal operator, and follow their instructions.
Seite 212 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 213: Appendix D. Restriction Of Hazardous Substances (Rohs) Directive
For more information about Lenovo worldwide compliance on RoHS, go to: http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf China RoHS Turkish RoHS The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic Equipment (WEEE). © Copyright Lenovo 2016...
Seite 214: Ukraine Rohs
Ukraine RoHS India RoHS RoHS compliant as per E-Waste (Management & Handling) Rules, 2011. ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 215: Appendix E. Energy Star Model Information
For more information about ENERGY STAR, go to: http://www.energystar.gov Lenovo encourages you to make efficient use of energy an integral part of your day-to-day operations. To help in this endeavor, set the following power-management features to take effect when your computer has been inactive for a specified duration: Table 4.
Seite 216 ThinkStation P510 and P710 Hardware Maintenance Manual...
Seite 217: Appendix F. Notices
Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.
Seite 218: Trademarks
Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo The Lenovo logo ThinkStation The ThinkStation logo Rescue and Recovery ThinkVantage Microsoft, Windows, and Windows Media are trademarks of the Microsoft group of companies.
